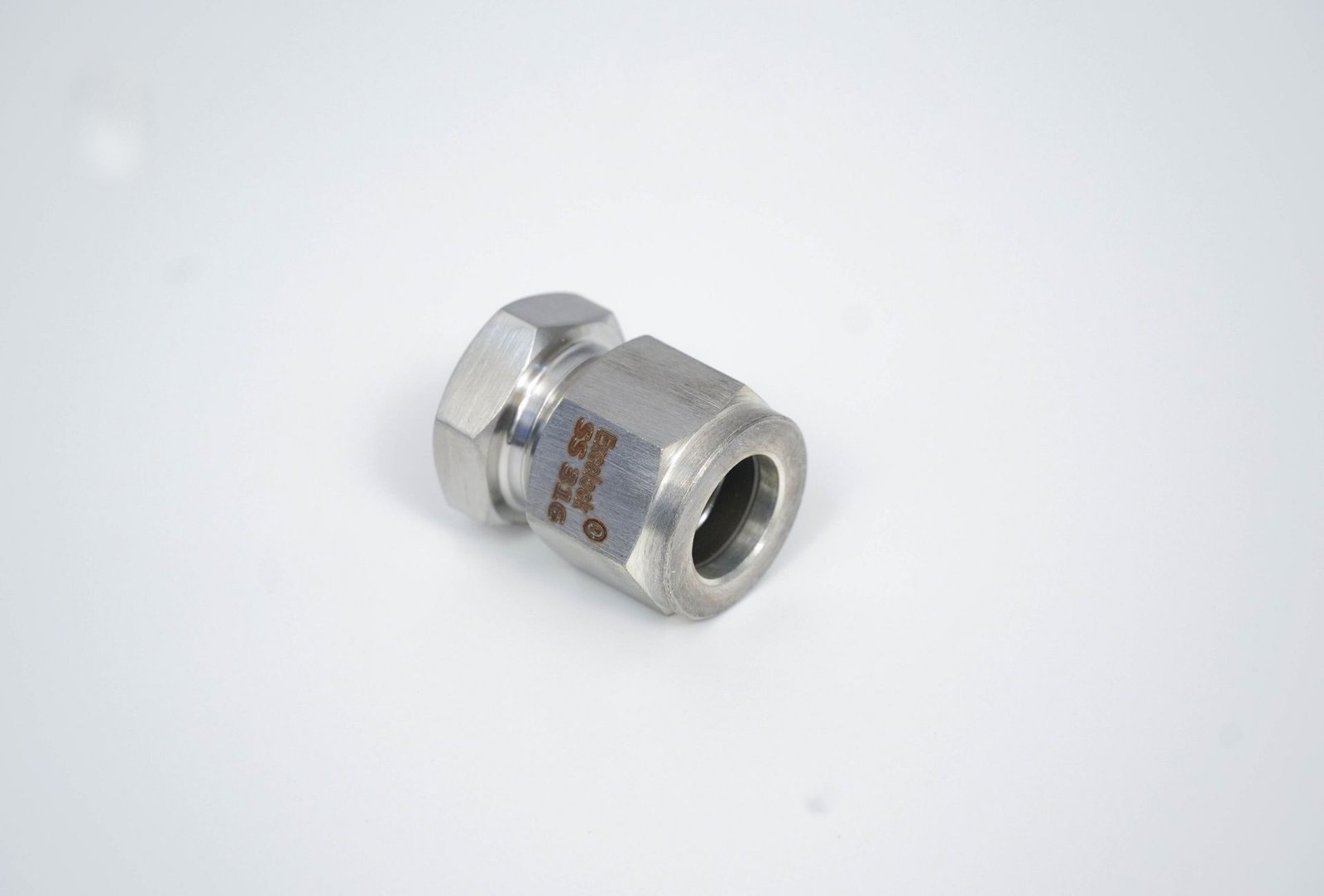

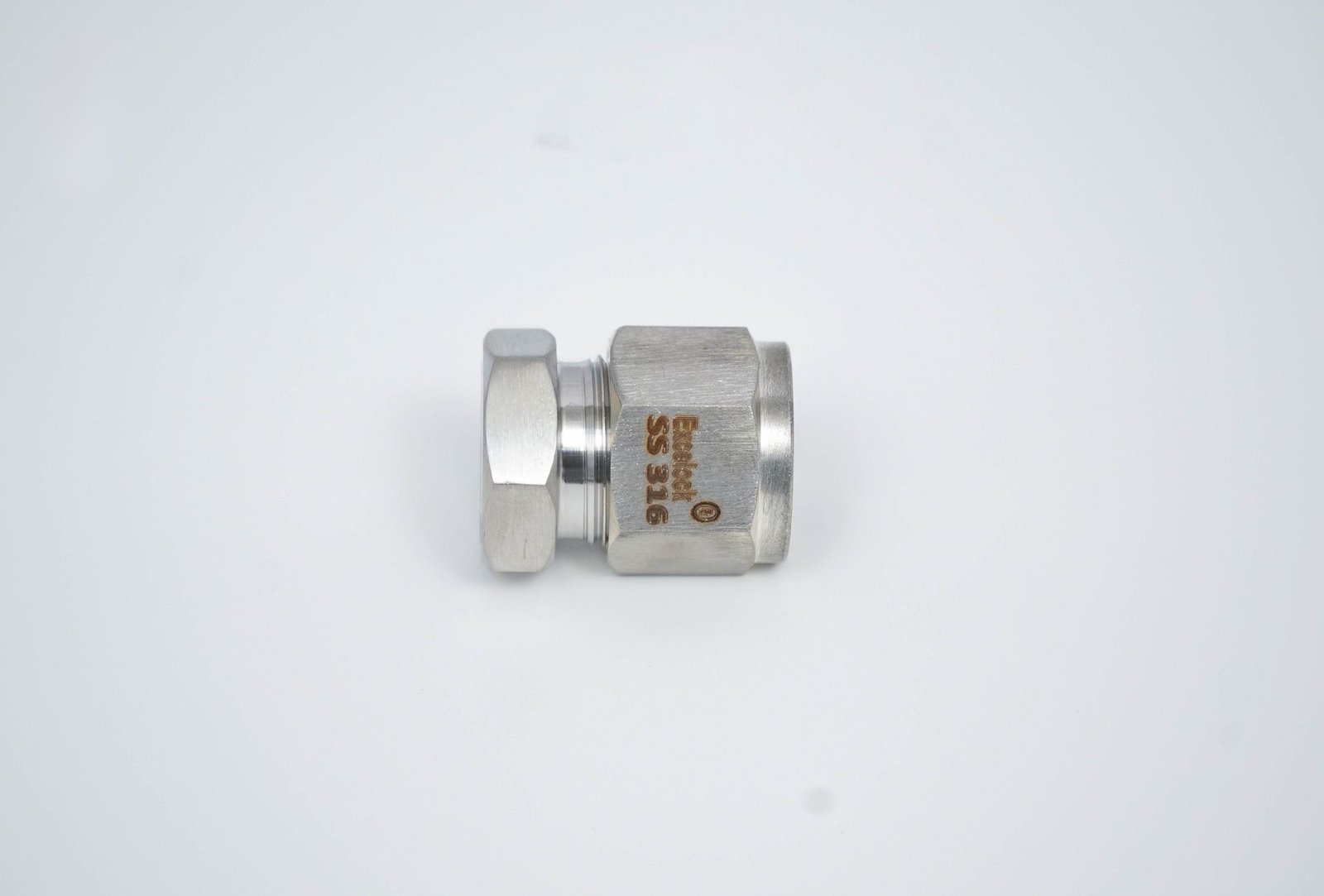

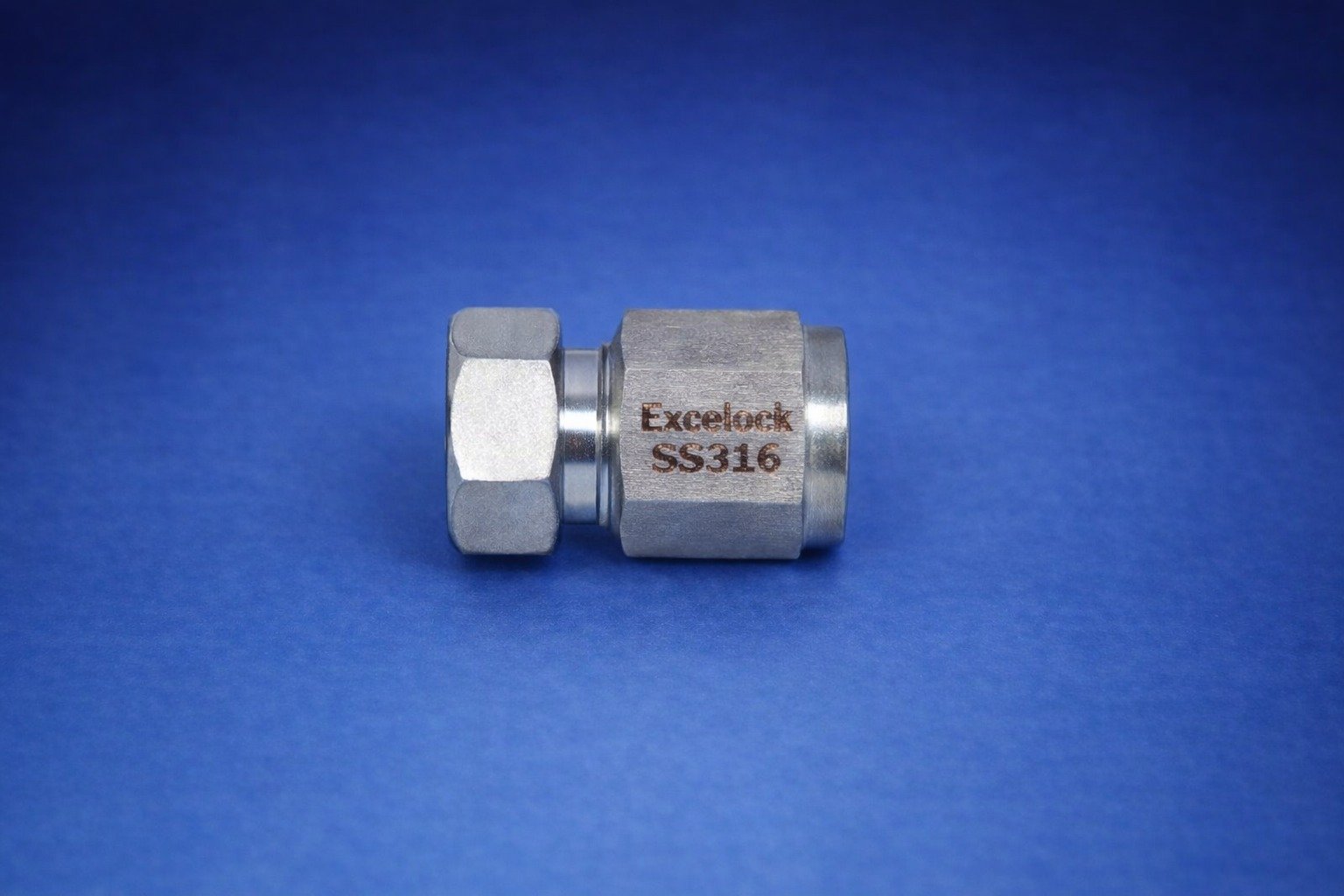

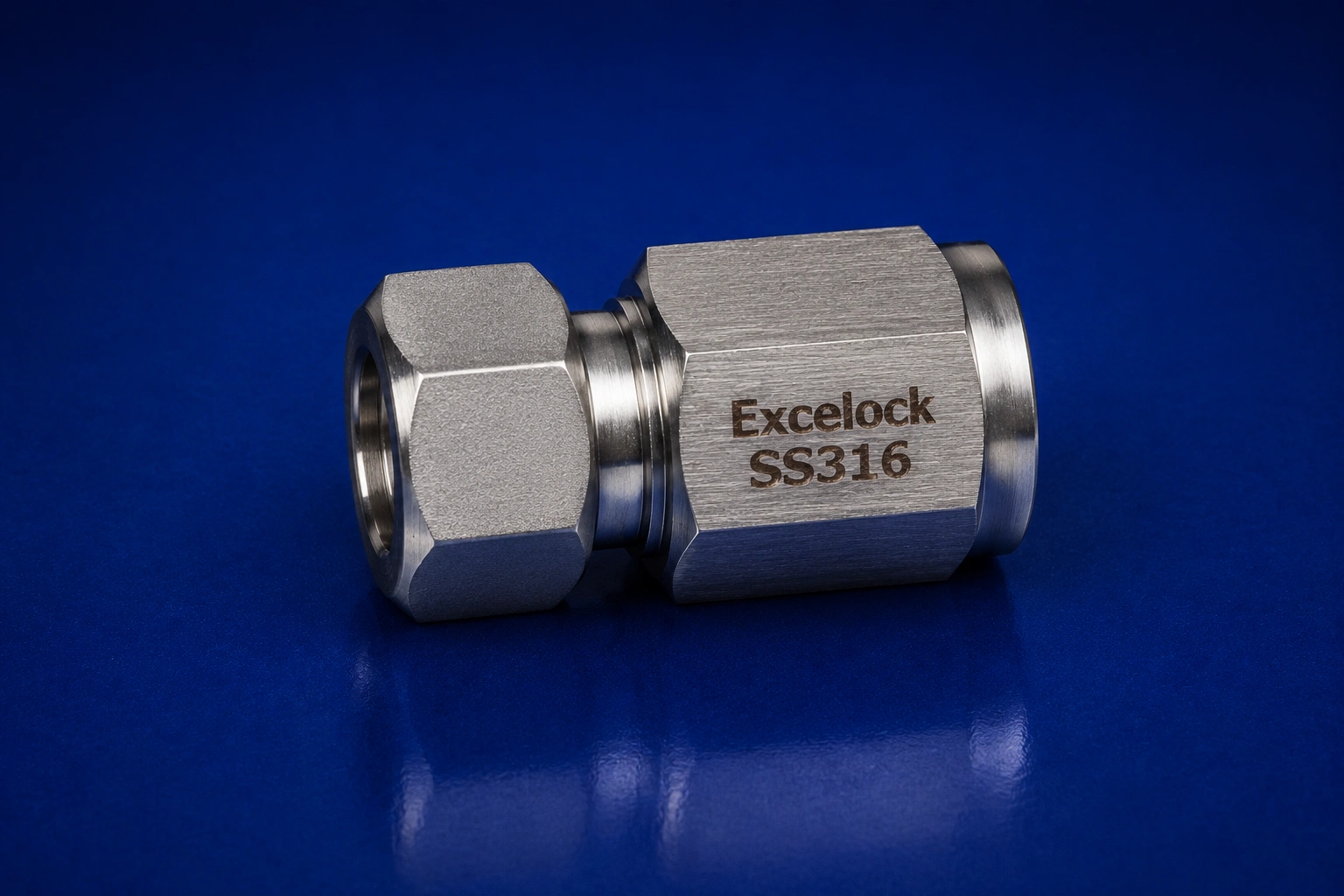

Tube End Closure (Cap)

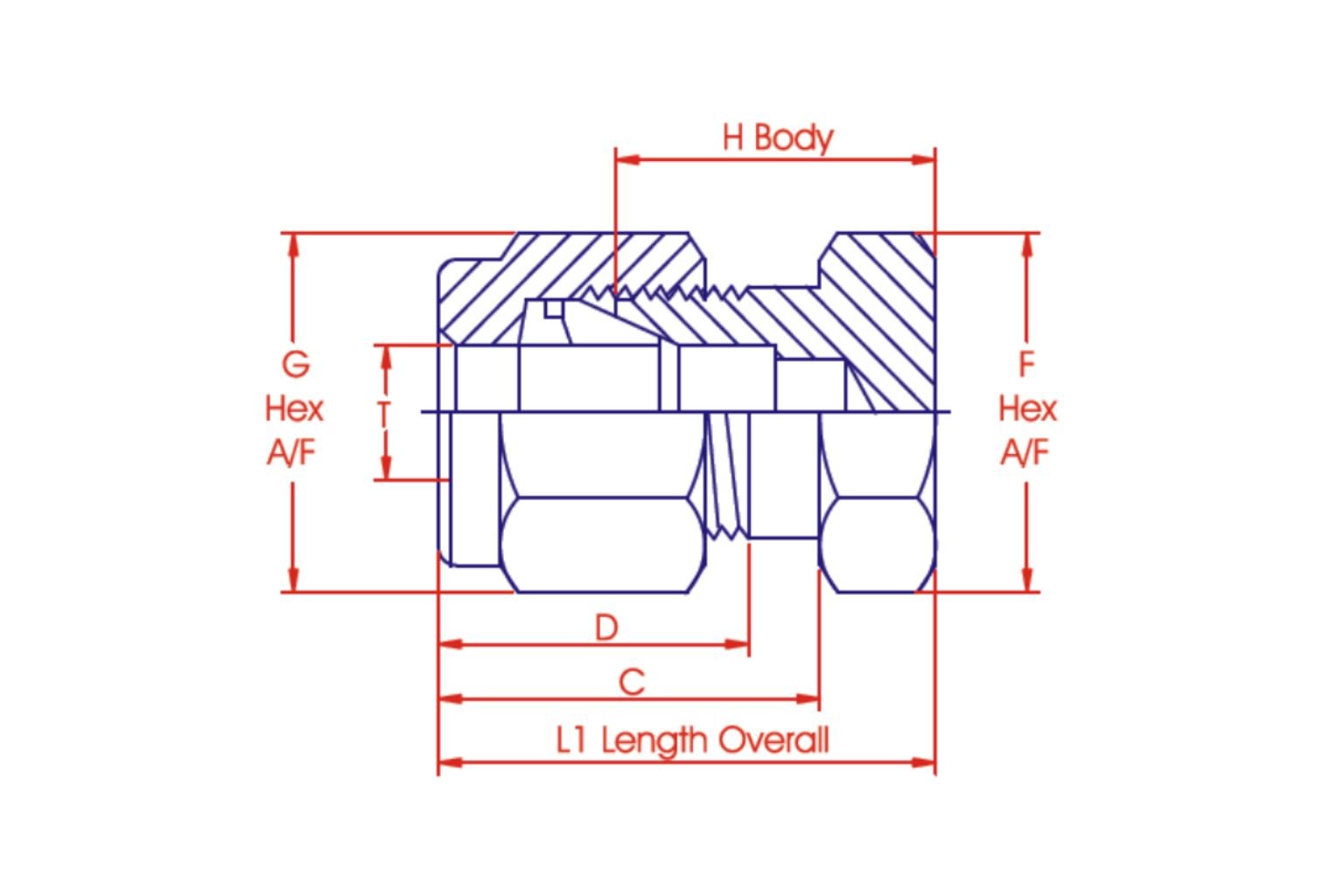

Sl.No.	Part No.	T o/d "mm"	L1 Length "mm"	C "mm"	D "mm"	F Body "mm"	G Nut "mm"	H Body "mm"
1	6mTC	6	23.81	18.32	15.88	14	14	15.88
2	10mTC	10	26.19	19.84	17.46	17	19	18.26
3	12mTC	12	29.37	22.23	23.02	22	22	19.05
4	20mTC	20	31.75	22.23	24.61	27	30	21.43
5	25mTC	25	38.10	26.19	30.96	36	41	26.19

Sl.No.	Part No.	T o/d	L1 Length "Inch"	C "Inch"	D "Inch"	F Body "Inch"	G Nut "Inch"	H Body "Inch"
1	4TC	1/4	0.91	0.70	0.60	1/2	9/16	0.62
2	6TC	3/8	1.01	0.76	0.66	5/8	11/16	0.72
3	8TC	1/2	1.15	0.86	0.90	13/16	7/8	0.75
4	12TC	3/4	1.24	0.86	0.96	1-1/16	1-1/8	0.84
5	16TC	1	1.51	1.04	1.23	1-3/8	1-1/2	1.03

Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.
