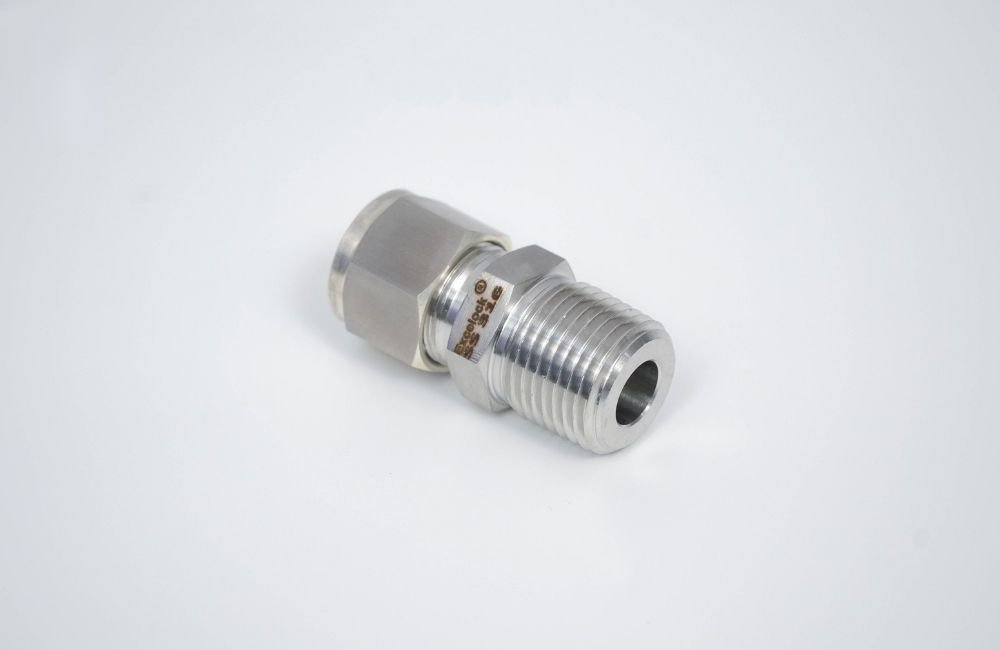

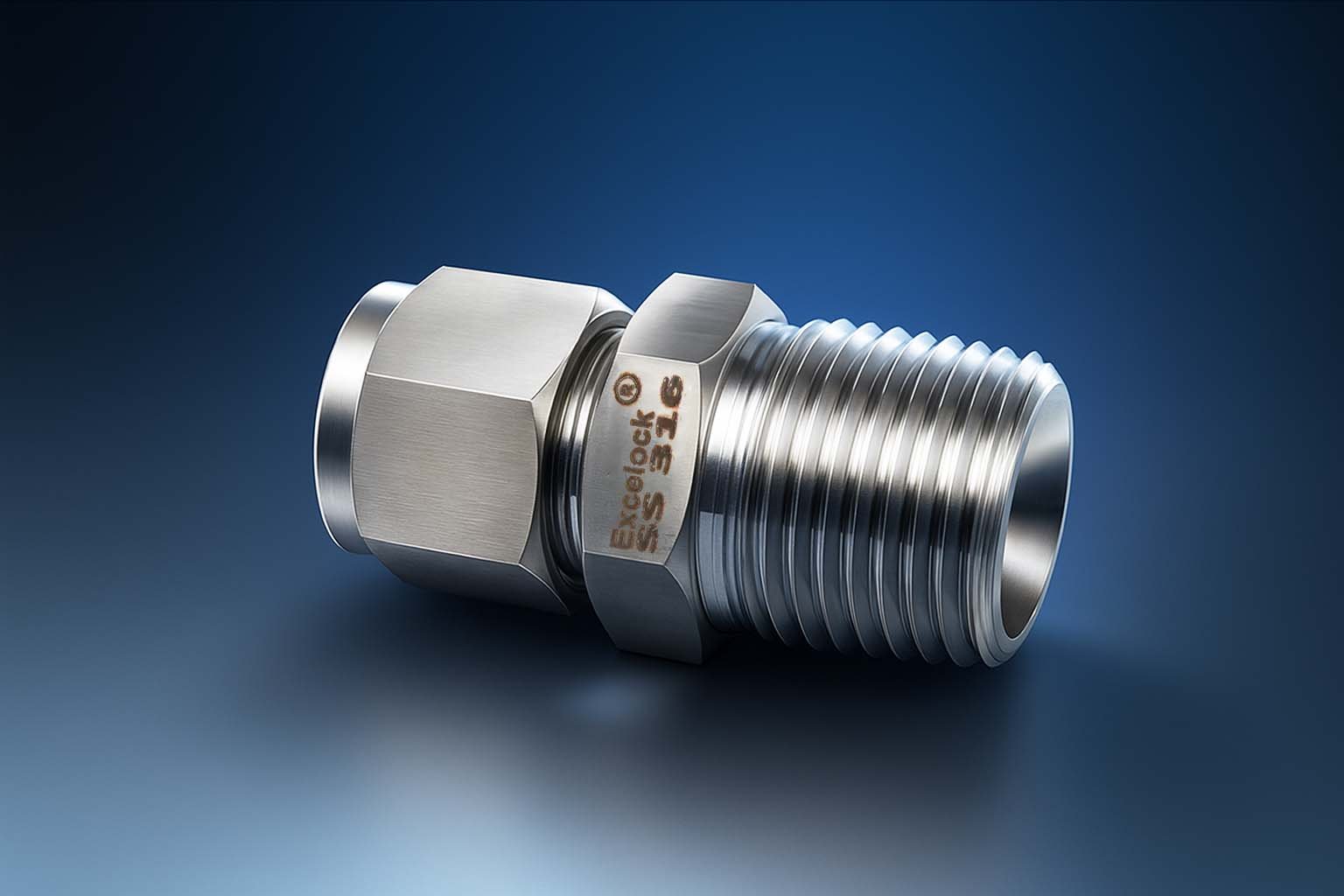

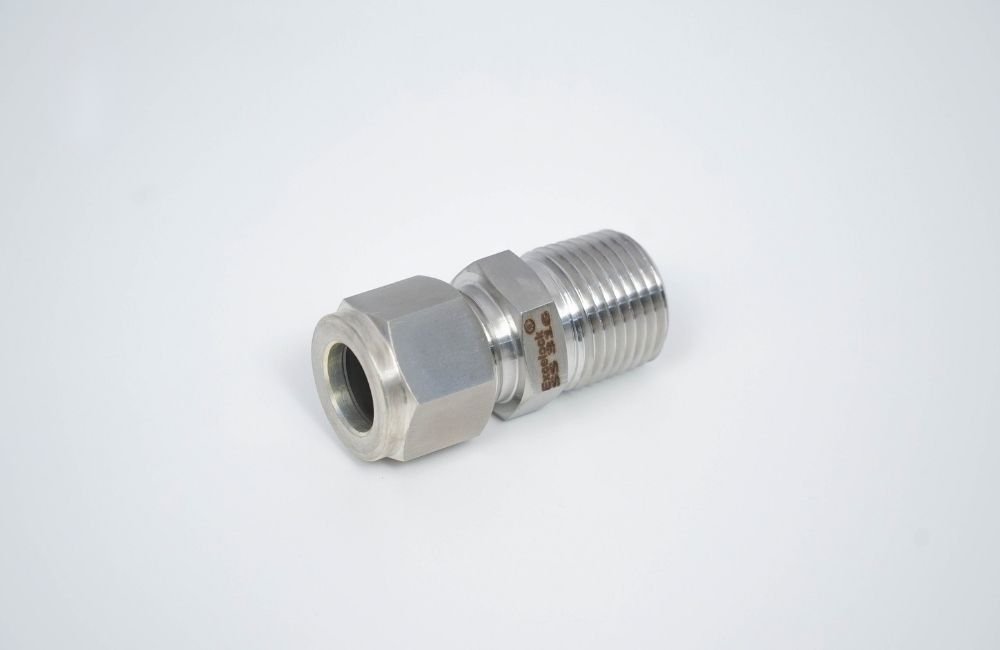

Male Connector

Part No.	T o/d "mm"	P	L1 Length "mm"	M "mm"	C "mm"	D "mm"	F Body "mm"	G Nut "mm"	H Body "mm"	N "mm"
4mMC4	4	1/4"	35.72	14.29	16.67	14.29	14	12	29.37	15.88
6mMC4	6	1/4"	33.34	14.29	18.26	15.88	14	14	30.16	12.70
8mMC4	8	1/4"	39.29	14.29	19.05	16.67	14	17	31.35	13.10
10mMC6	10	3/8"	40.48	14.29	19.84	17.46	19	19	32.54	13.49
12mMC8	12	1/2"	48.42	19.05	22.23	23.02	22	22	38.10	12.70
20mMC12	20	3/4"	50.80	19.05	22.23	24.61	27	30	40.48	10.32
25mMC16	25	1"	61.91	23.81	26.19	30.96	36	41	50.01	13.49

Part No.	T o/d	P	L1 Length "Inch"	M "Inch"	C "Inch"	D "Inch"	F Body "Inch"	G Nut "Inch"	H Body "Inch"	N "Inch"
1MC1	1/16	1/16	0.94	0.38	0.44	0.34	5/16	5/16	0.78	0.34
2MC2	1/8	1/8	1.19	0.38	0.63	0.53	1/2	7/16	0.91	0.41
4MC4	1/4	1/4	1.5	0.56	0.72	0.63	9/16	9/16	1.19	0.5
6MC6	3/8	3/8	1.57	0.56	0.76	0.66	11/16	11/16	1.28	0.56
8MC8	1/2	1/2	1.9	0.75	0.86	0.9	7/8	7/8	1.5	0.54
12MC12	3/4	3/4	1.99	0.75	0.86	0.96	1-1/16	1-1/18	1.59	0.55
16MC16	1	1	2.45	0.94	1.04	1.23	1-3/8	1-1/2	1.97	0.65

Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.

Features

Separately mounted design for flexible system integration.
Durable body construction ensures long service life.a
Suitable for high-pressure and high-temperature environments.
Precision-engineered for accurate flow control and regulation.
High-performance seals to prevent leakage and ensure safety.
Resistant to corrosion, ideal for harsh industrial conditions.
Low-maintenance design for quick servicing and reduced downtime.

Specifications

Valve Type: Separately Mounted Industrial Valve
Model: E367 BB
Material: Cast Steel / Stainless Steel (optional)
Pressure Rating: Up to 1500 PSI (customizable)
Temperature Range: -20°C to 250°C
End Connections: Flanged / Threaded / Welded (as required)
Flow Media: Compatible with gases, liquids, steam, and corrosive fluids
Mounting Type: Separate bracket or base-mounted configuration
Operation: Manual / Pneumatic / Electric actuator options available
Compliance: ANSI / API / DIN standards (based on requirement)
