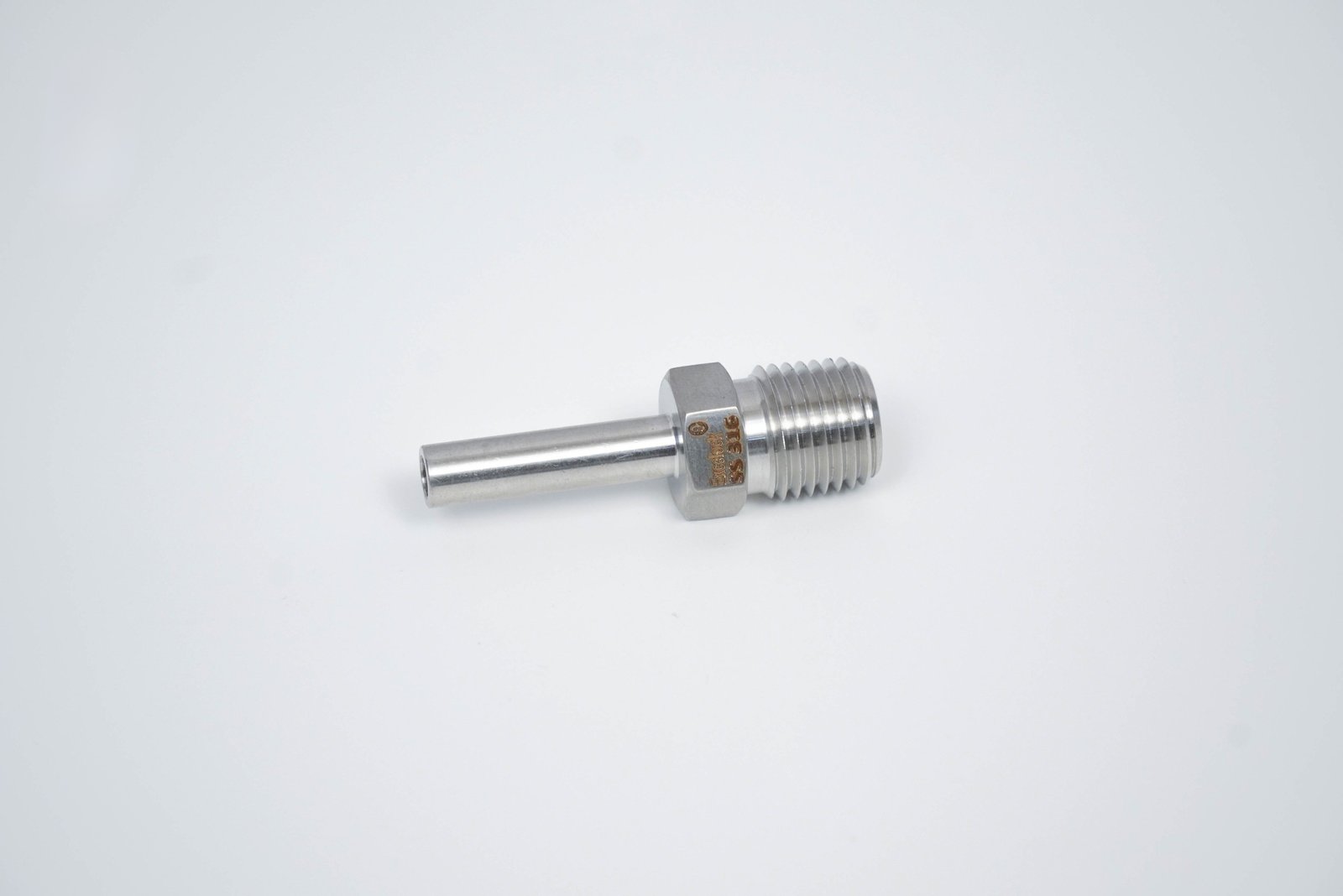

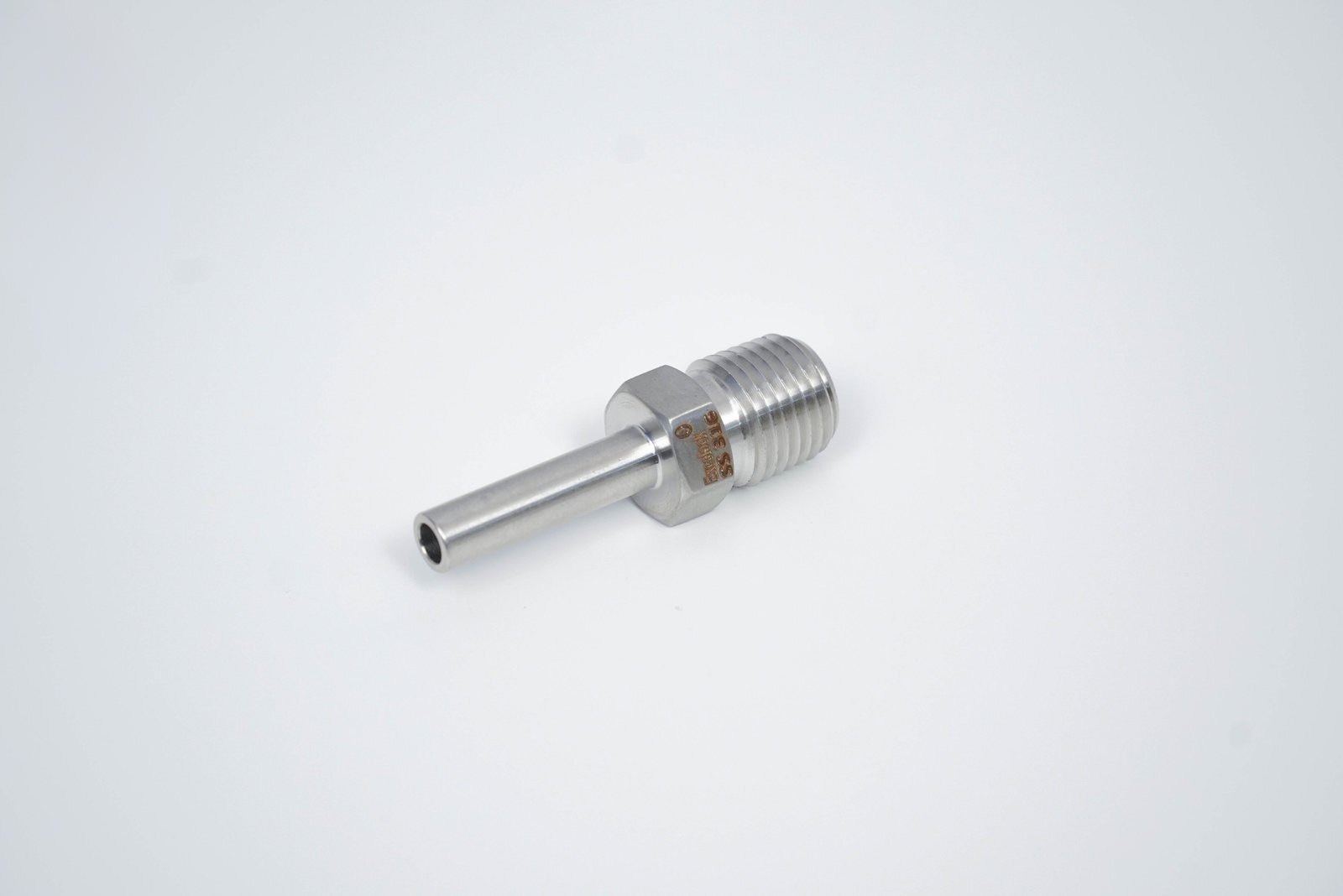

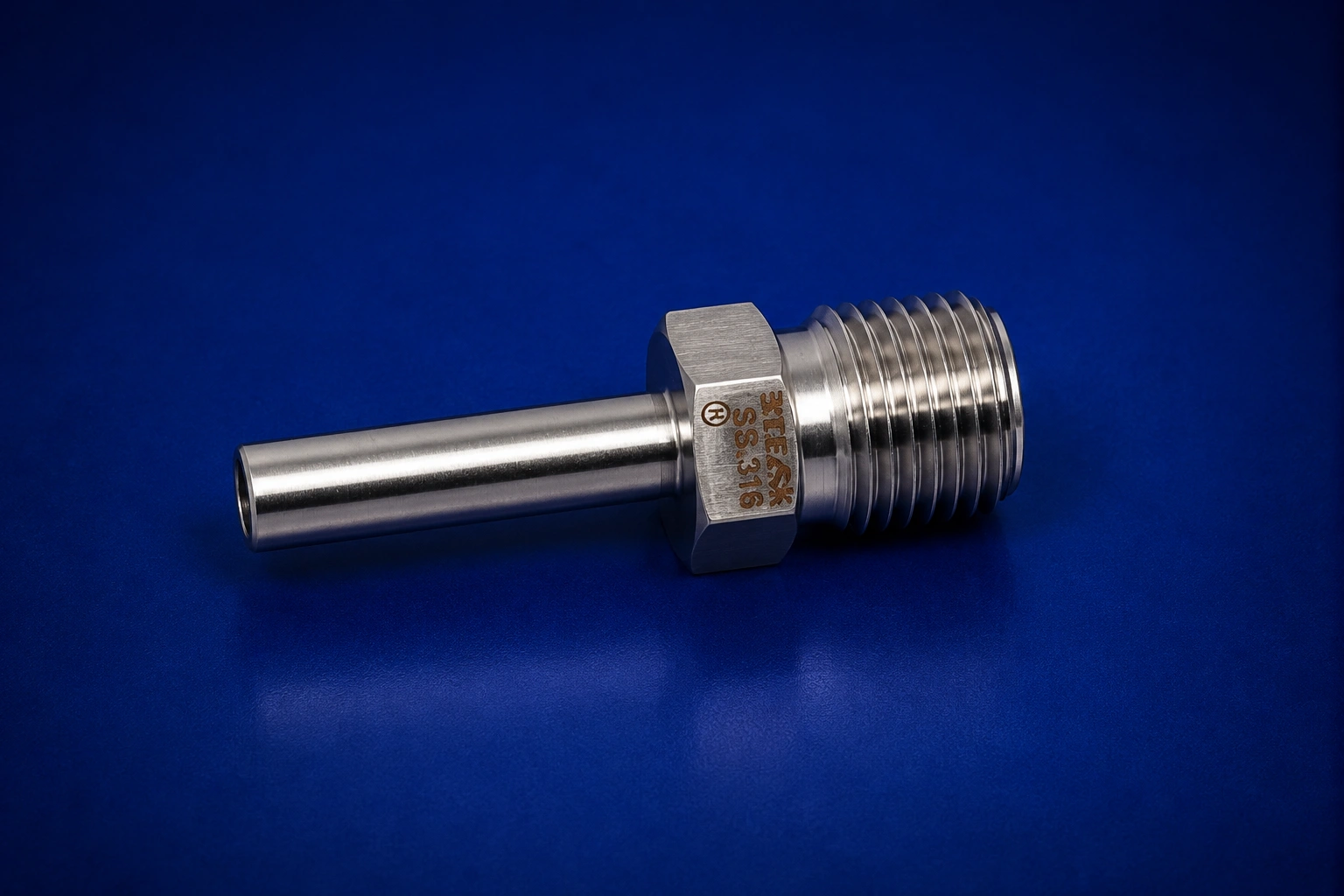

Male Adaptor

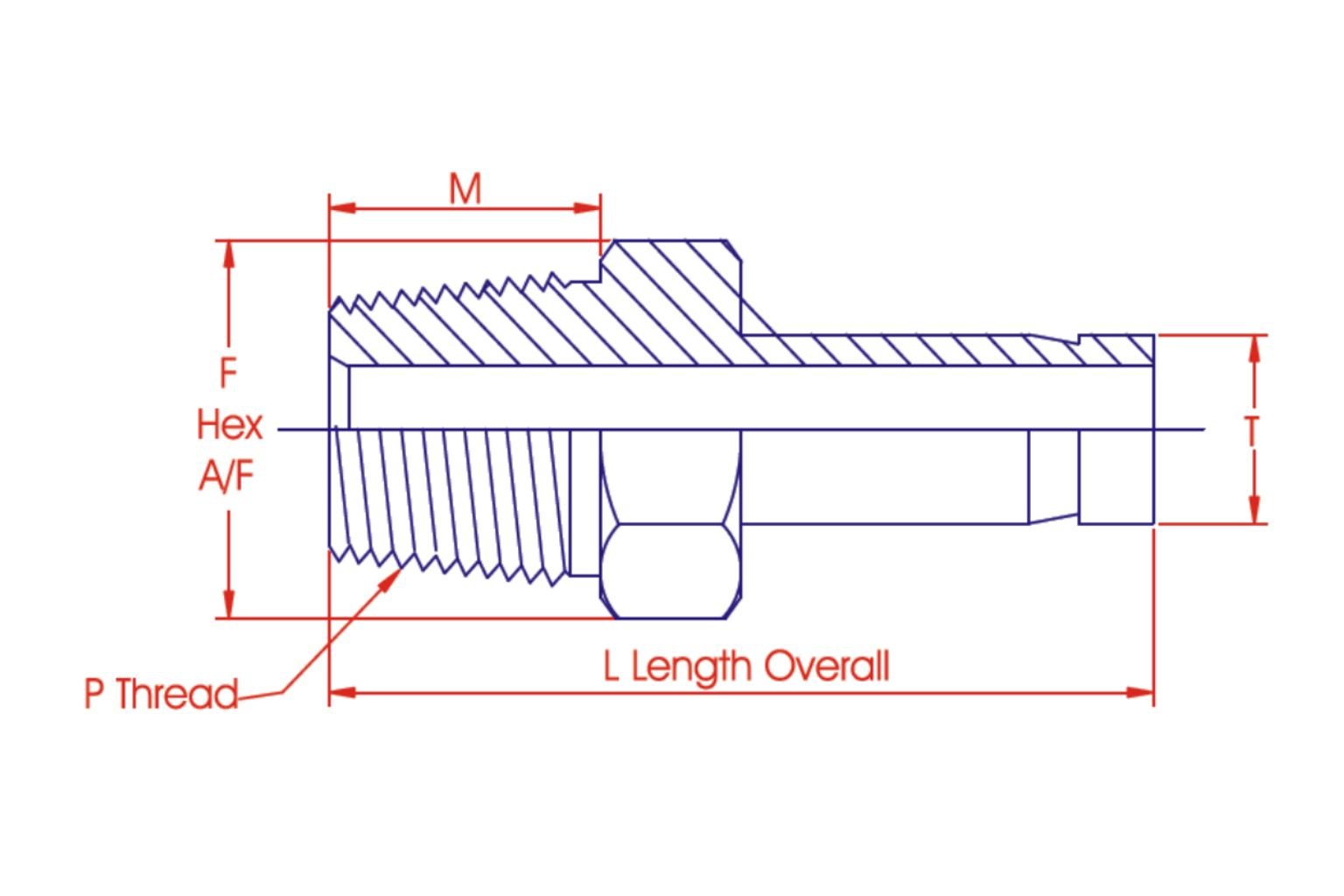

Sl.No.	Part No.	T "mm"	P	M "mm"	F Body "mm"	L "mm"
1	4mADM2	4	1/8"	9.52	12	29.37
2	6mADM6	6	3/8"	14.29	19	36.51
3	8mADM6	8	3/8"	14.29	19	37.31
4	10mADM8	10	1/2"	19.05	24	42.66
5	12mADM6	12	3/8"	14.29	19	44.45
6	16mADM12	16	3/4"	19.05	27	51.59

Part No.	T	P	M "Inch"	F Body "Inch"	L "Inch"
2ADM2	1/8	1/8	0.38	1/2	1-1/8
4ADM4	1/4	1/4	0.56	9/16	1-13/32
6ADM8	3/8	1/2	0.75	15/16	1-11/16
8ADM6	1/2	3/8	0.56	11/16	1-3/4
12ADM12	3/4	3/4	0.75	1-1/16	2-1/32
16ADM16	1	1	0.94	1-3/8	2-9/16

Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.
