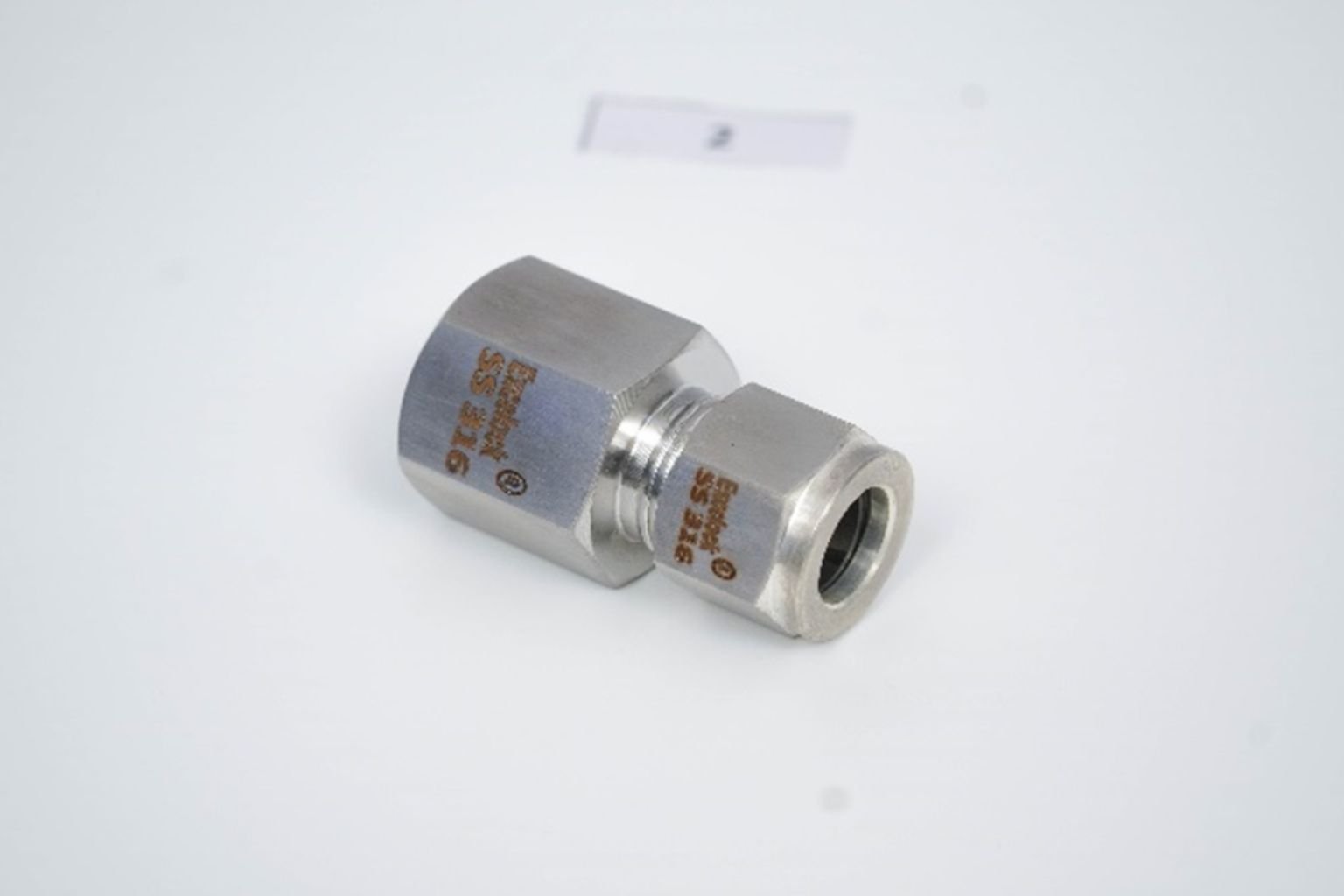

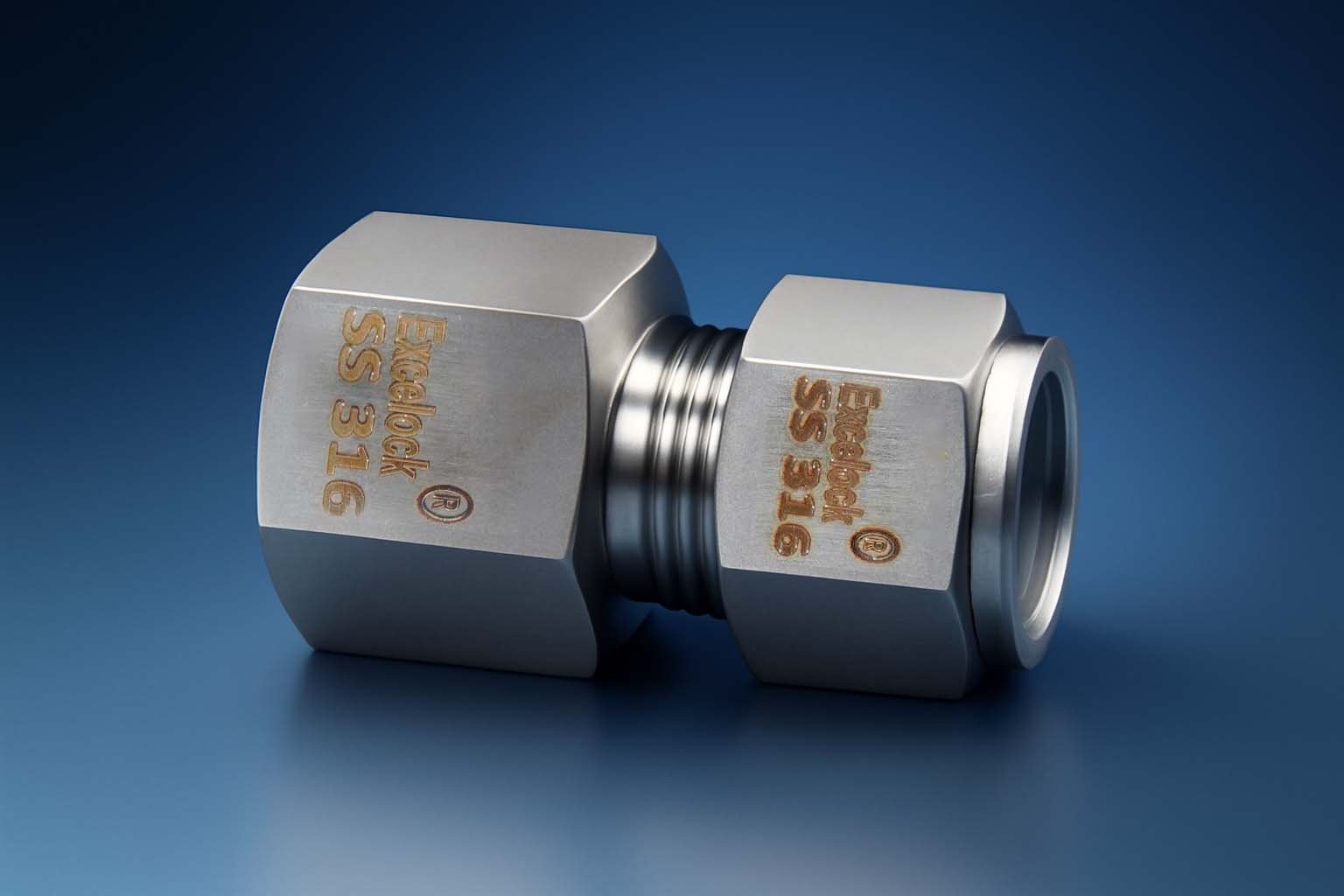

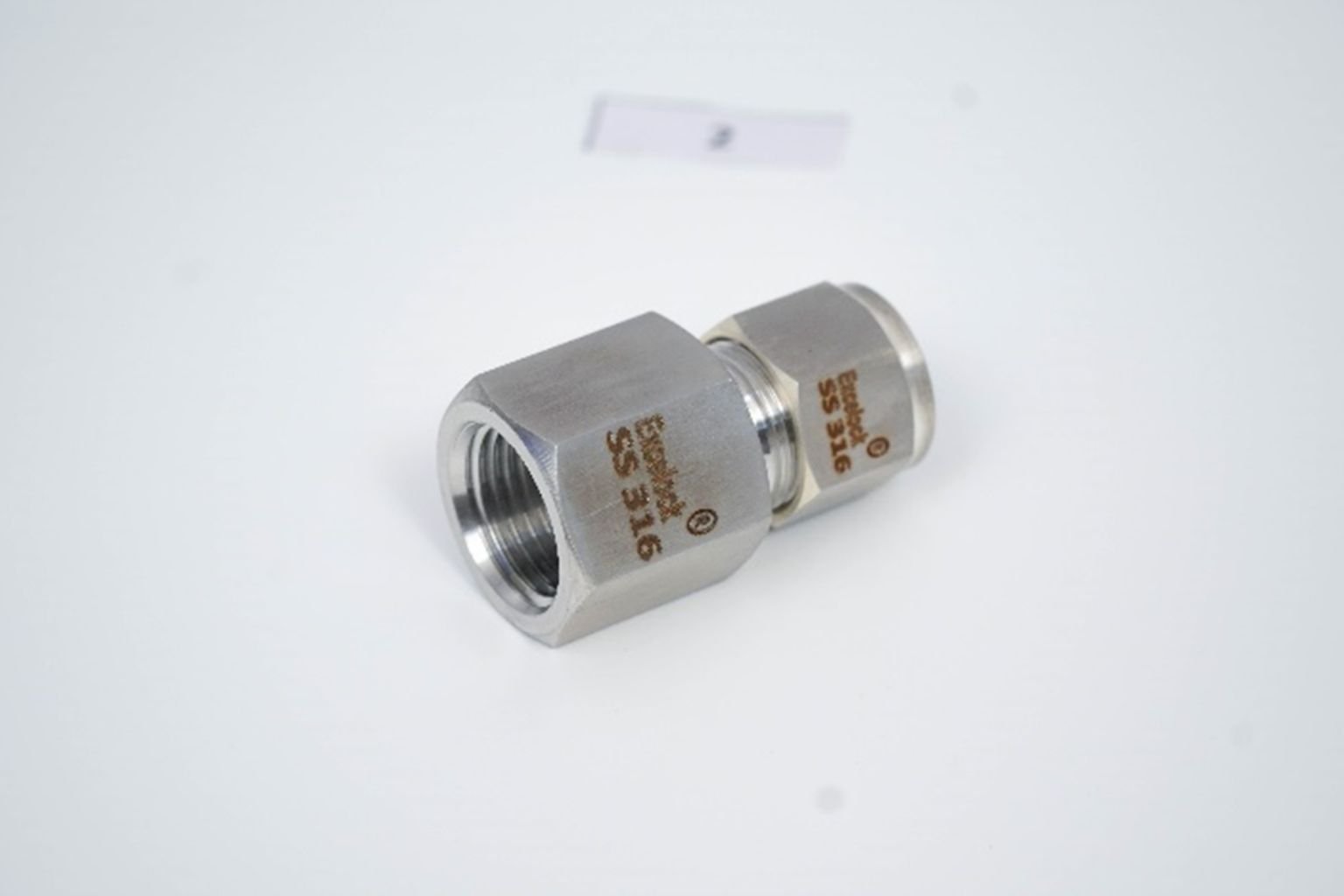

Female Connector

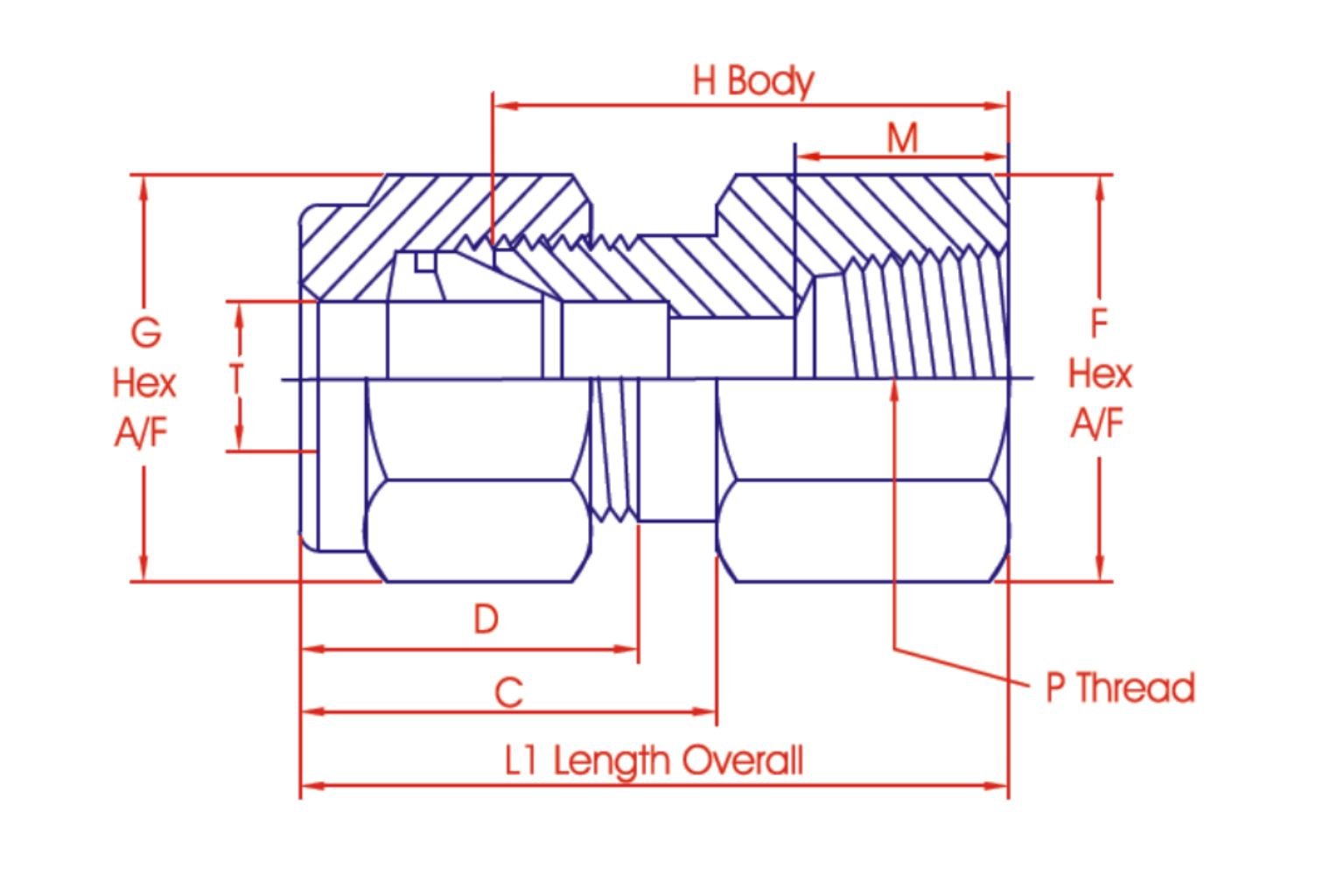

Sl.No.	Part No.	T o/d "mm"	P	L1 Length "mm"	M "mm"	C "mm"	D "mm"	F Body "mm"	G Nut "mm"	H Body "mm"
1	6mFC4	6	1/4"	36.51	14	18.26	15.88	19	14	28.58
2	8mFC4	8	1/4	37.31	14	19.05	16.67	19	17	29.37
3	10mFC6	10	3/8"	39.69	14	19.84	17.46	22	19	31.75
4	12mFC8	12	1/2"	46.83	19	22.23	23.02	27	22	36.51
5	20mFC12	20	3/4"	48.42	19	22.23	24.61	32	30	38.10
6	25mFC16	25	1"	61.91	24	26.19	30.96	41	41	50.01

SR.No.	Part No.	T o/d	P	L1 Length "Inch"	M "Inch"	C "Inch"	D "Inch"	F Body "Inch"	G Nut "Inch"	H Body "Inch"
1	1FC1	1/16	1/16	0.94	0.36	0.44	0.34	1/2	5/16	0.78
2	2FC2	1/8	1/8	1.16	0.39	0.63	0.53	9/16	7/16	0.88
3	4FC4	1/4	1/4	1.41	0.59	0.70	0.60	3/4	9/16	1.12
4	6FC6	3/8	3/8	1.54	0.59	0.76	0.66	7/8	11/16	1.25
5	8FC8	1/2	1/2	1.84	0.78	0.86	0.90	1-1/16	7/8	1.44
6	12FC12	3/4	3/4	1.90	0.81	0.86	0.96	1-5/16	1-1/8	1.50
7	16FC16	1	1	2.45	1.00	1.04	1.23	1-5/8	1-1/2	1.97

Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.
