Female Adaptor – Excel Hydro

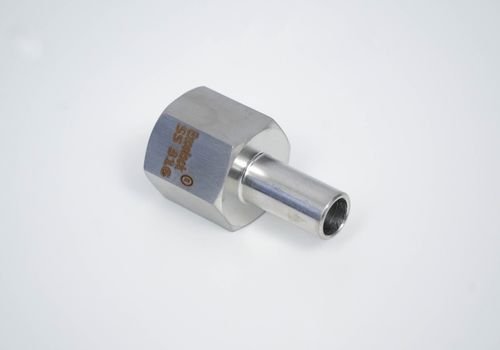

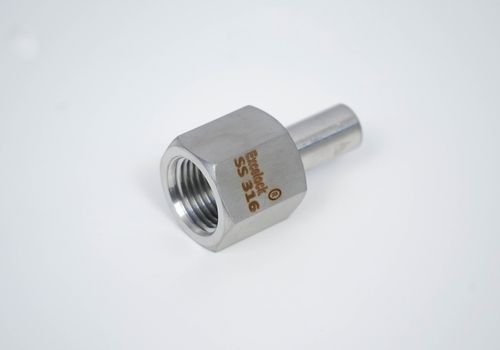

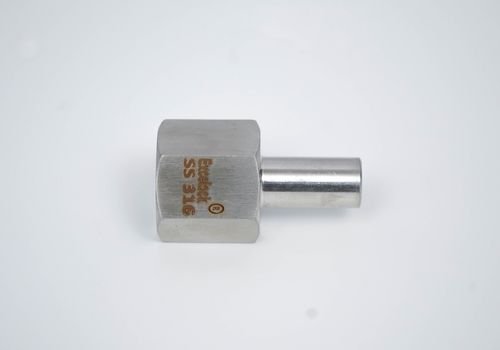

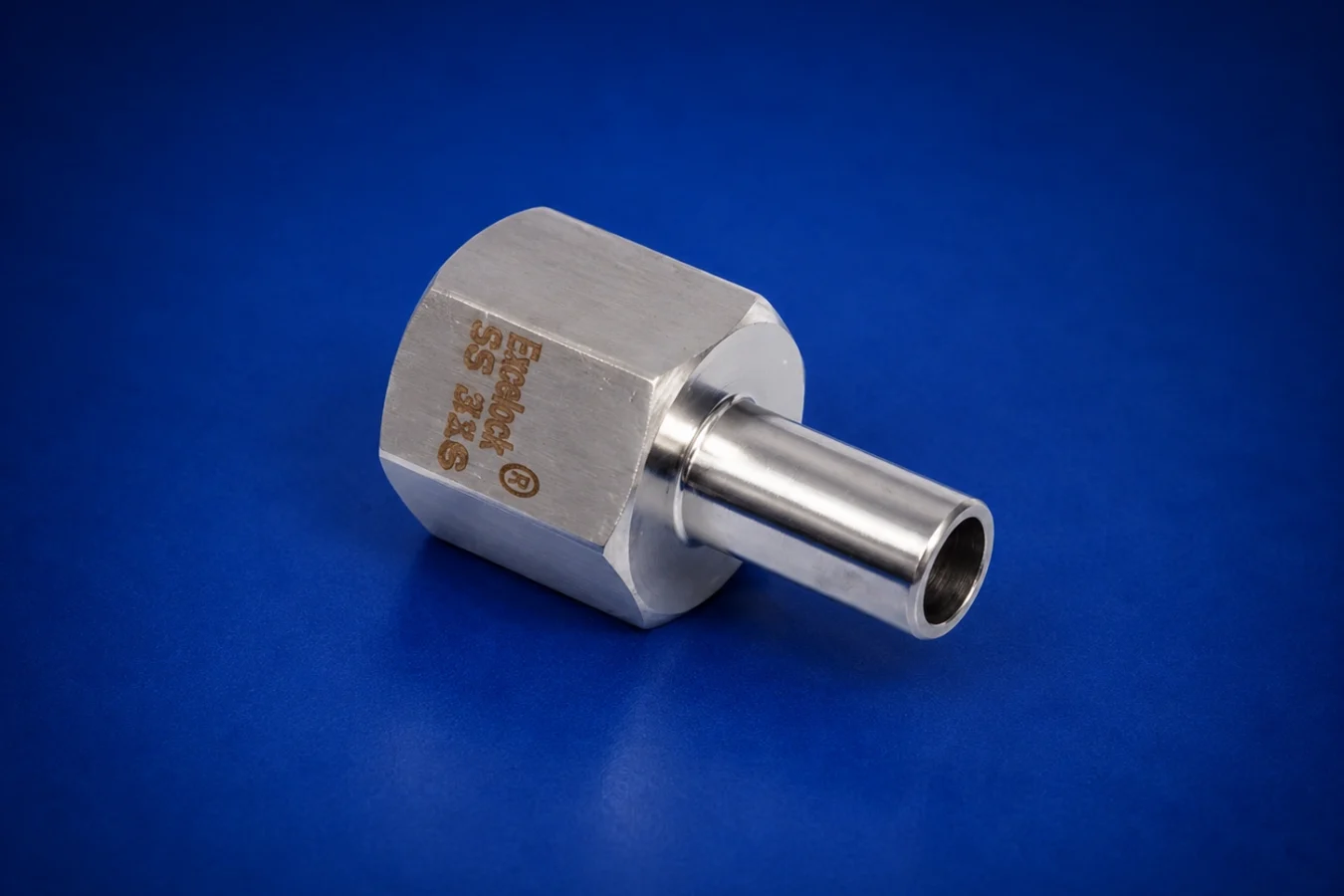

Female Adaptor

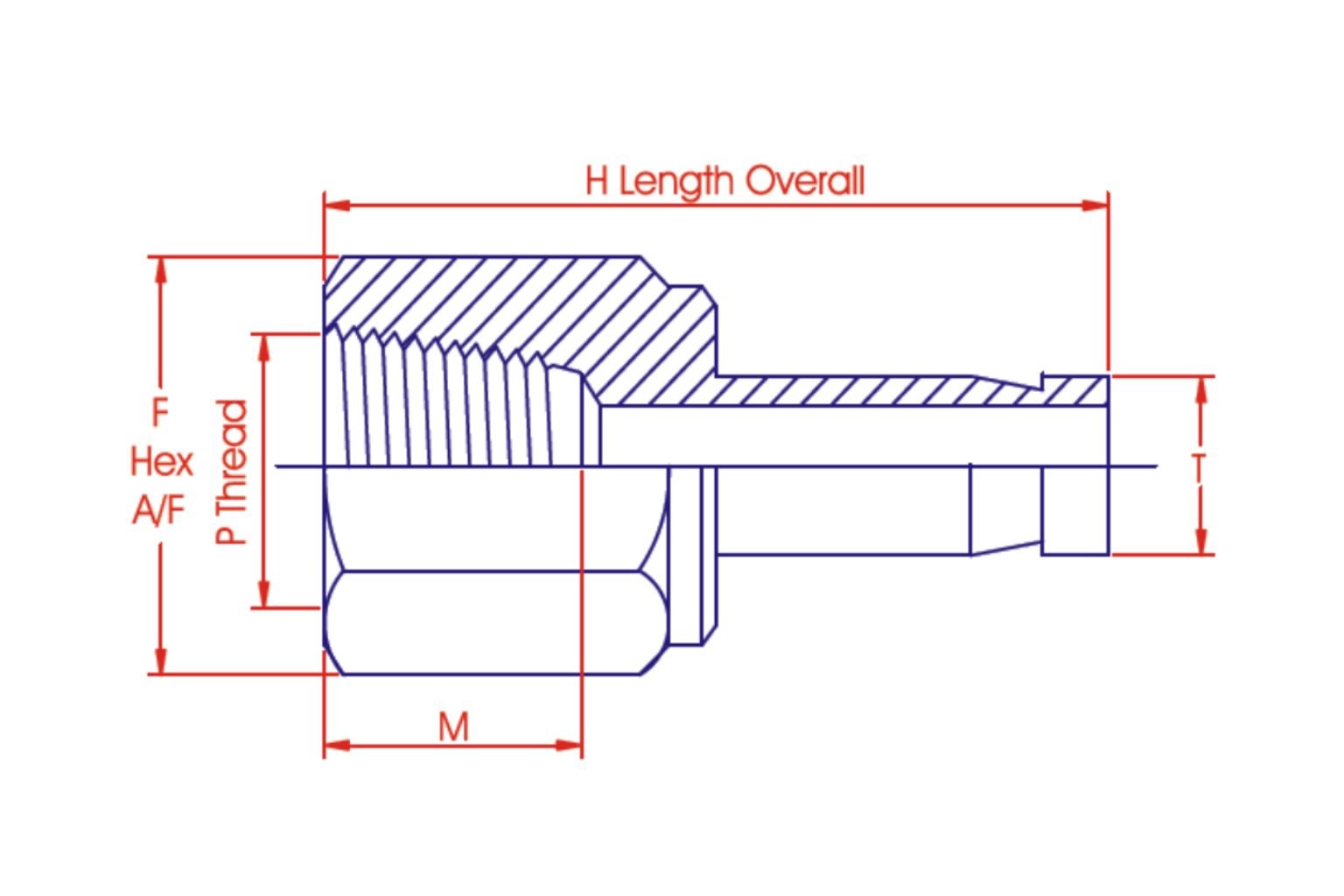

Sl.No.	Part No.	T	P	M "Inch"	F "Inch"	H "Inch"
1	4ADF4	1/4	1/4	0.59	3/4	1-11/32
2	6ADF8	3/8	1/2	0.78	1-1/16	1-21/32
3	8ADF4	1/2	1/4	0.59	3/16	1-5/8
4	12ADF8	3/4	1/2	0.78	1-1/16	2.0

Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.
