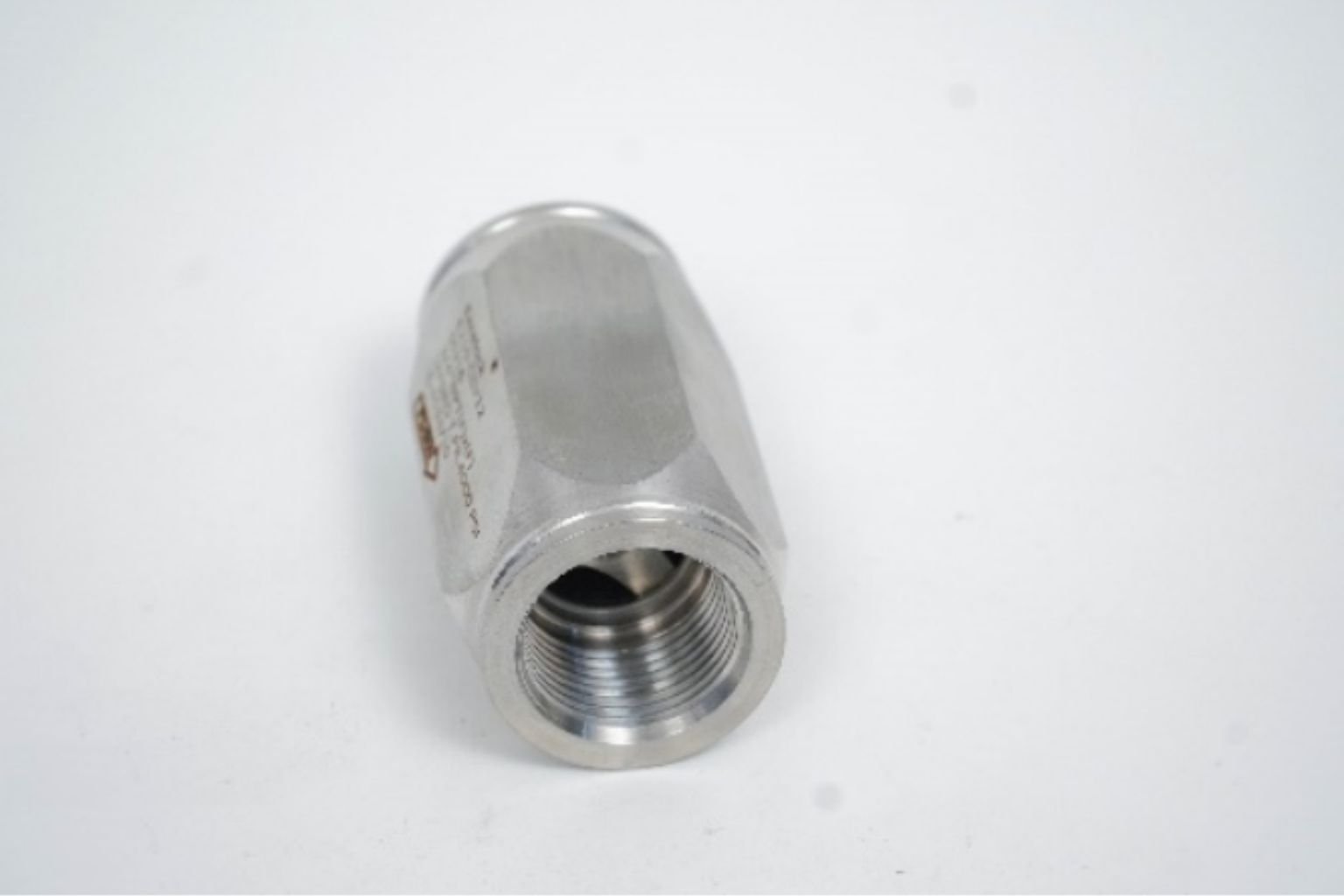

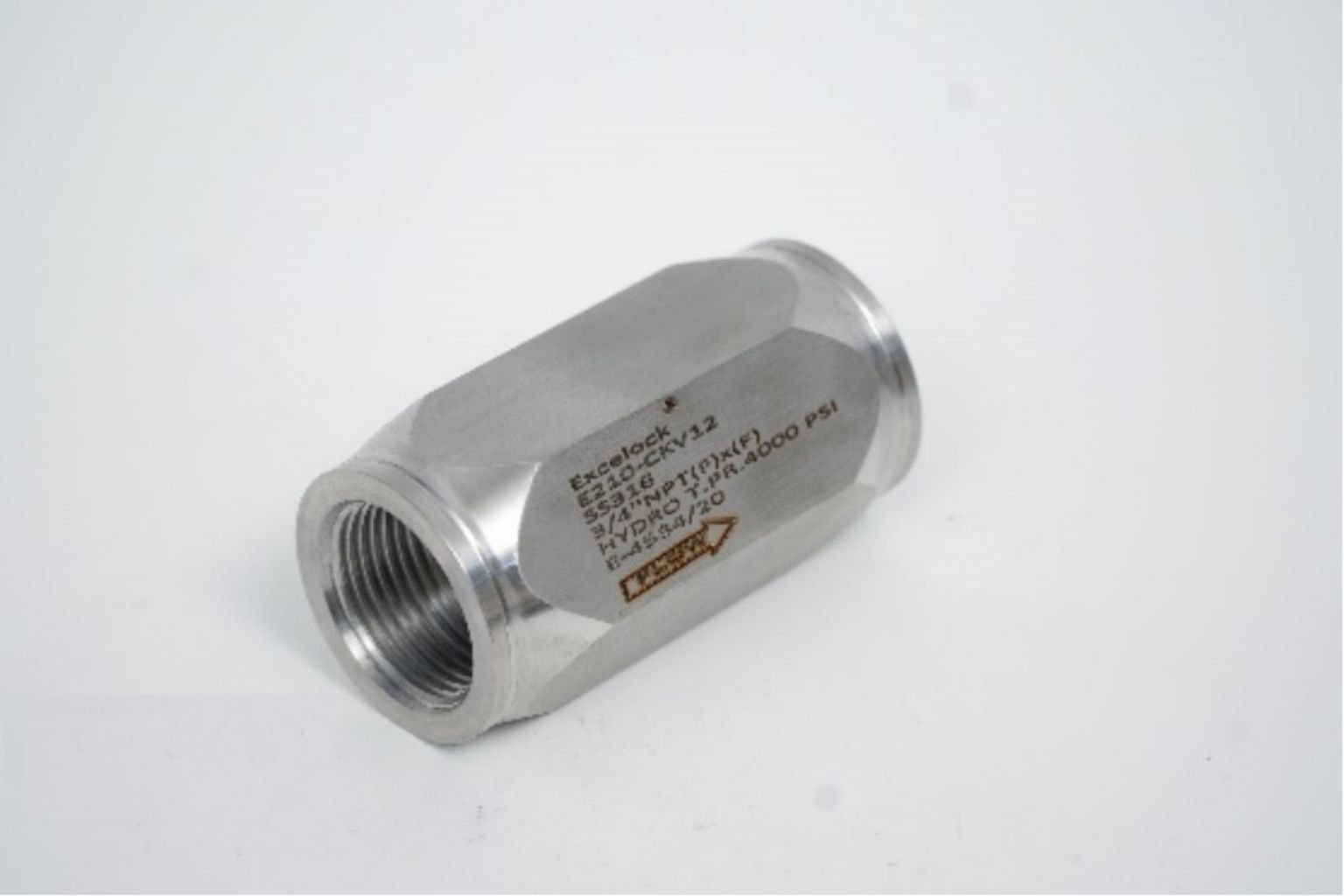

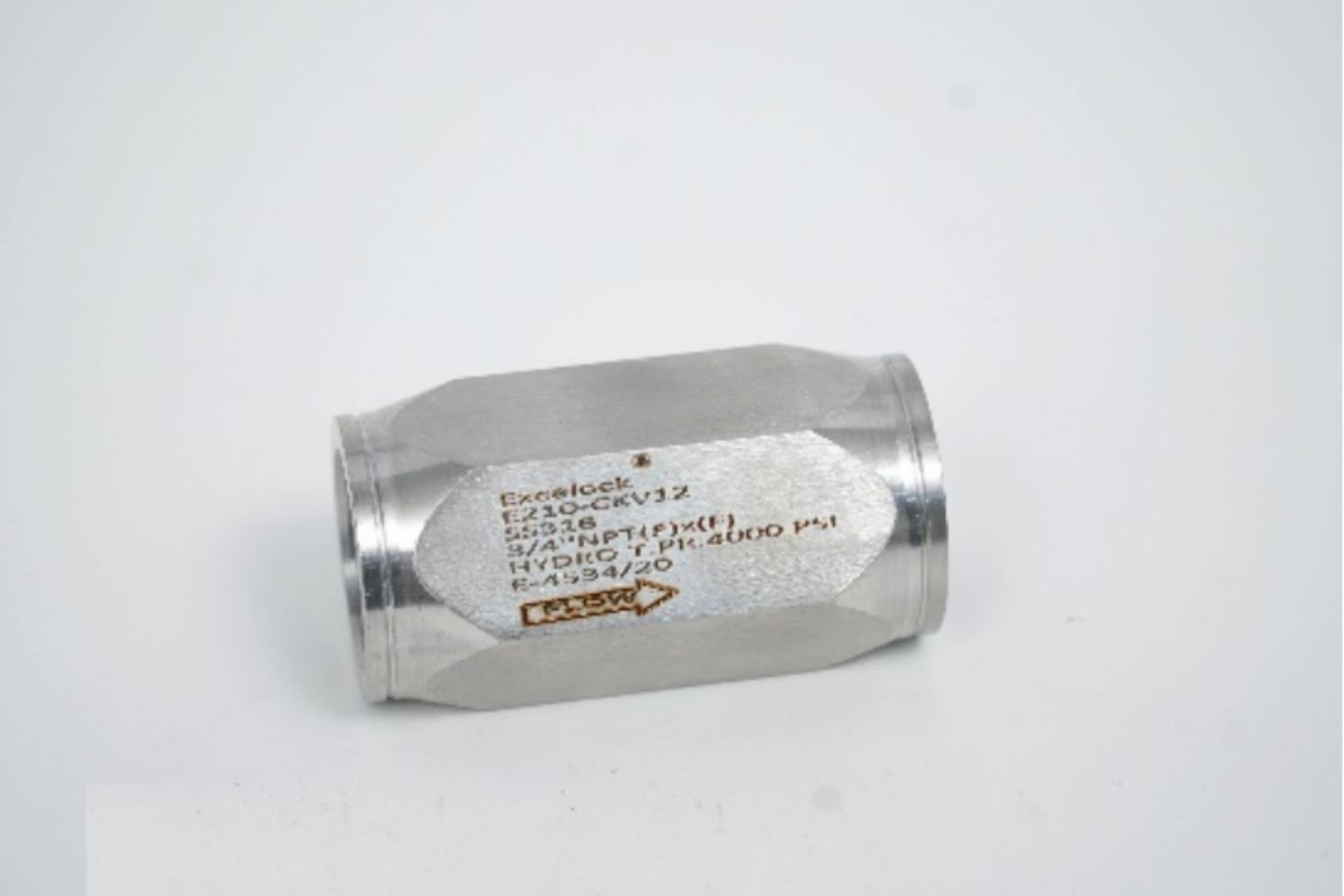

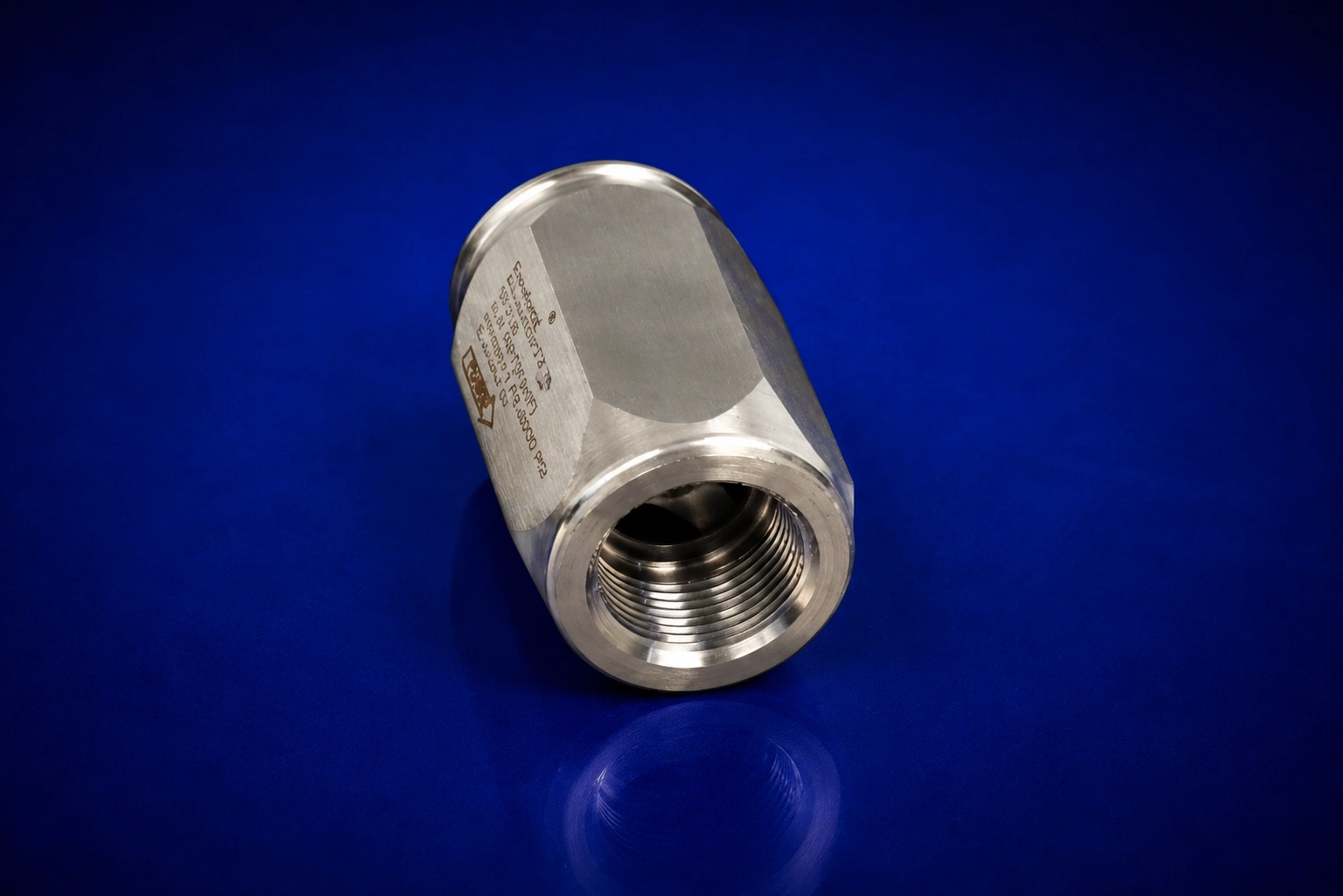

Check Valve : E210-CKV – Excel Hydro

Check Valve : E210-CKV

Sl.No.	Model No.	P "	A " ± 0.40	L " ± 0.80	Test Pressure
1	E210-CKV2	1/8" NPT(F)	16.00	57.00	3000 PSI Hydro
2	E210-CKV4	1/4" NPT(F)	19.00	57.00	3000 PSI Hydro
3	E210-CKV6	3/8" NPT(F)	22.00	57.00	3000 PSI Hydro
4	E210-CKV8	1/2" NPT(F)	27.00	65.00	3000 PSI Hydro
5	E210-CKV12	3/4" NPT(F)	36.00	65.00	3000 PSI Hydro
6	E210-CKV16	1.0" NPT(F)	45.00	65.00	3000 PSI Hydro

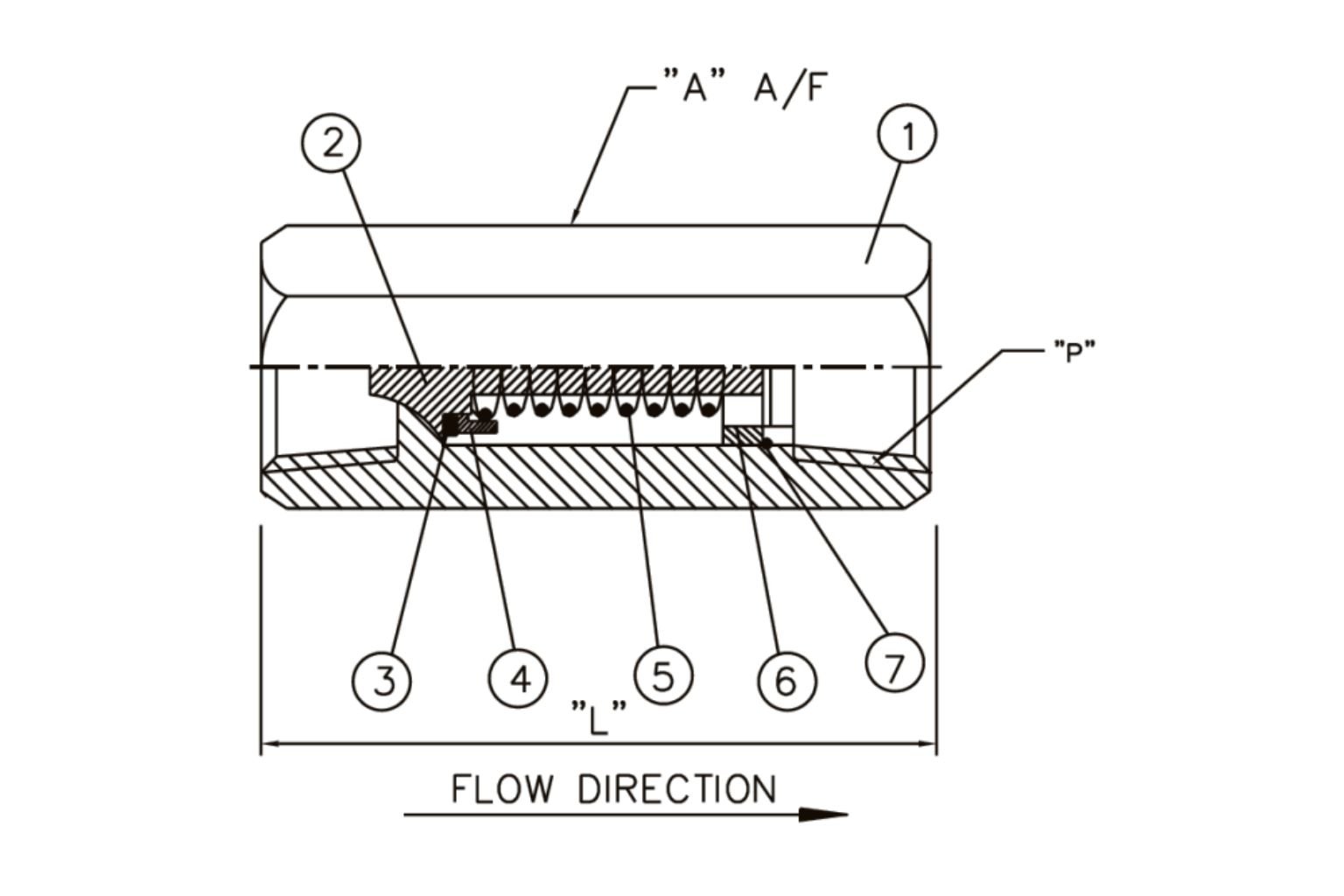

Sr. No.	Description	Material	Qty.
1	Body	SS 316	1
2	Piston	SS 316	1
3	Washer	Neoprene Rubber	1
4	Piston Ring	SS 316	1
5	Spring	SS 316	1
6	Spring Support	SS 316	1
7	Lock Washer	SS 316	1

Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.
