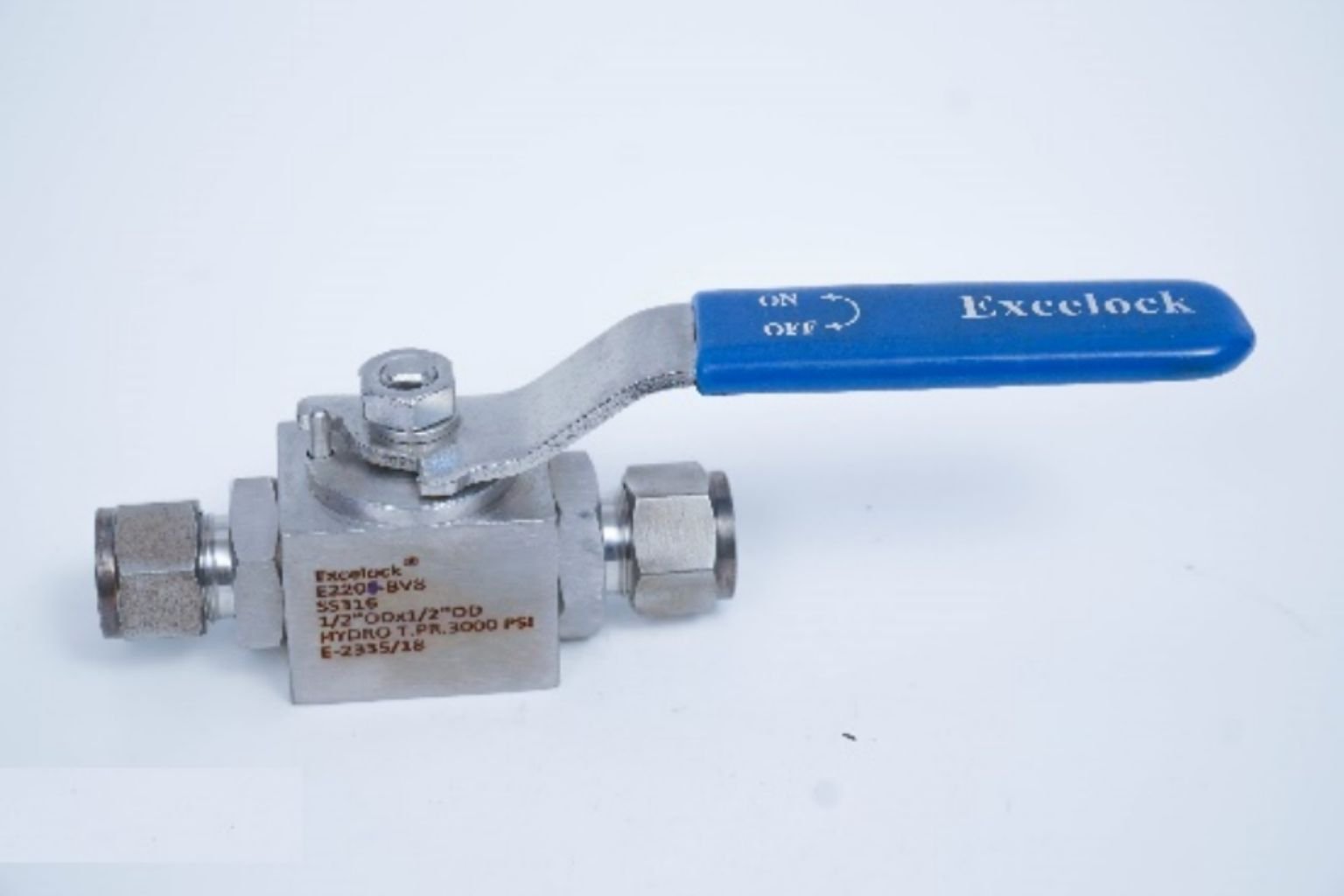

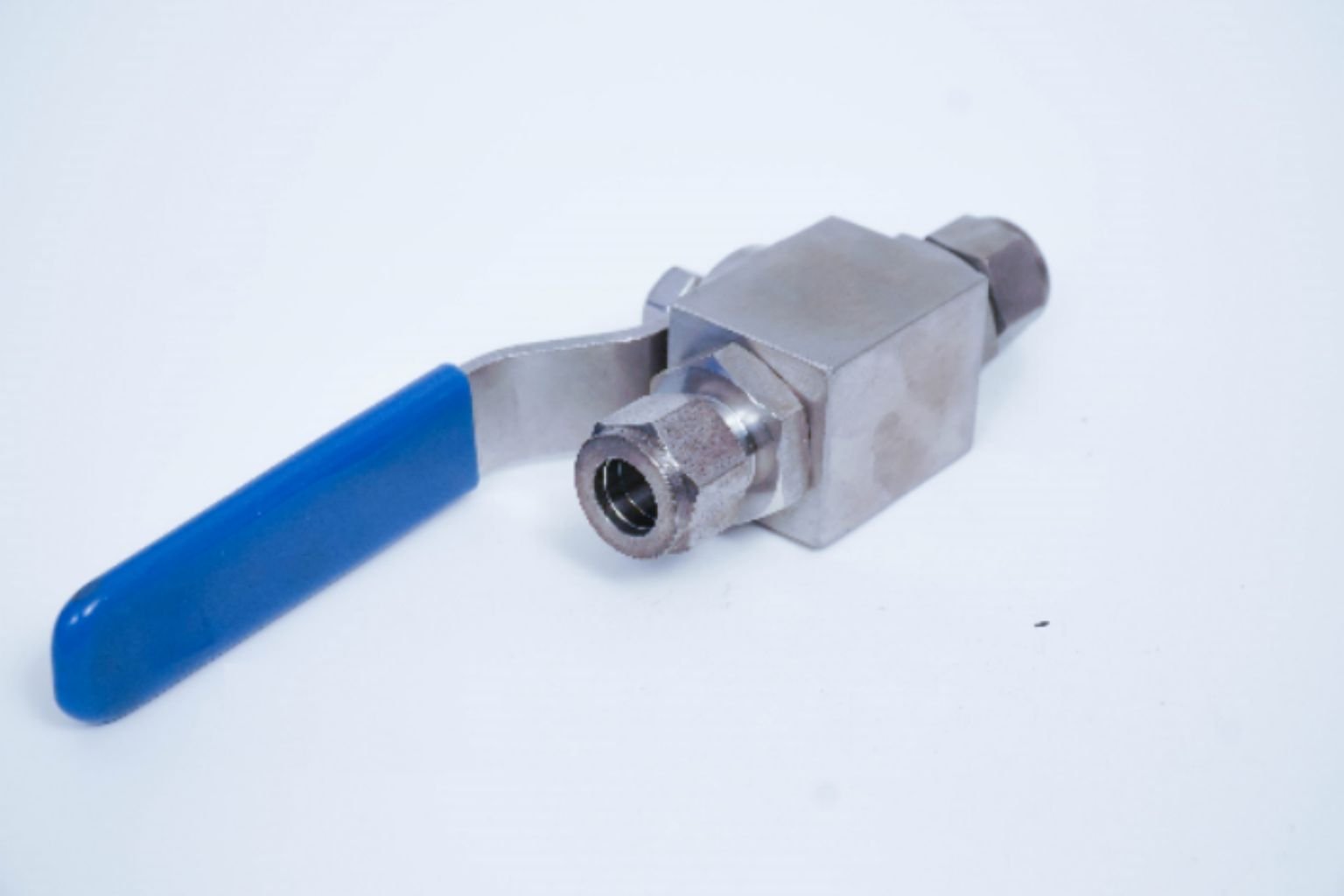

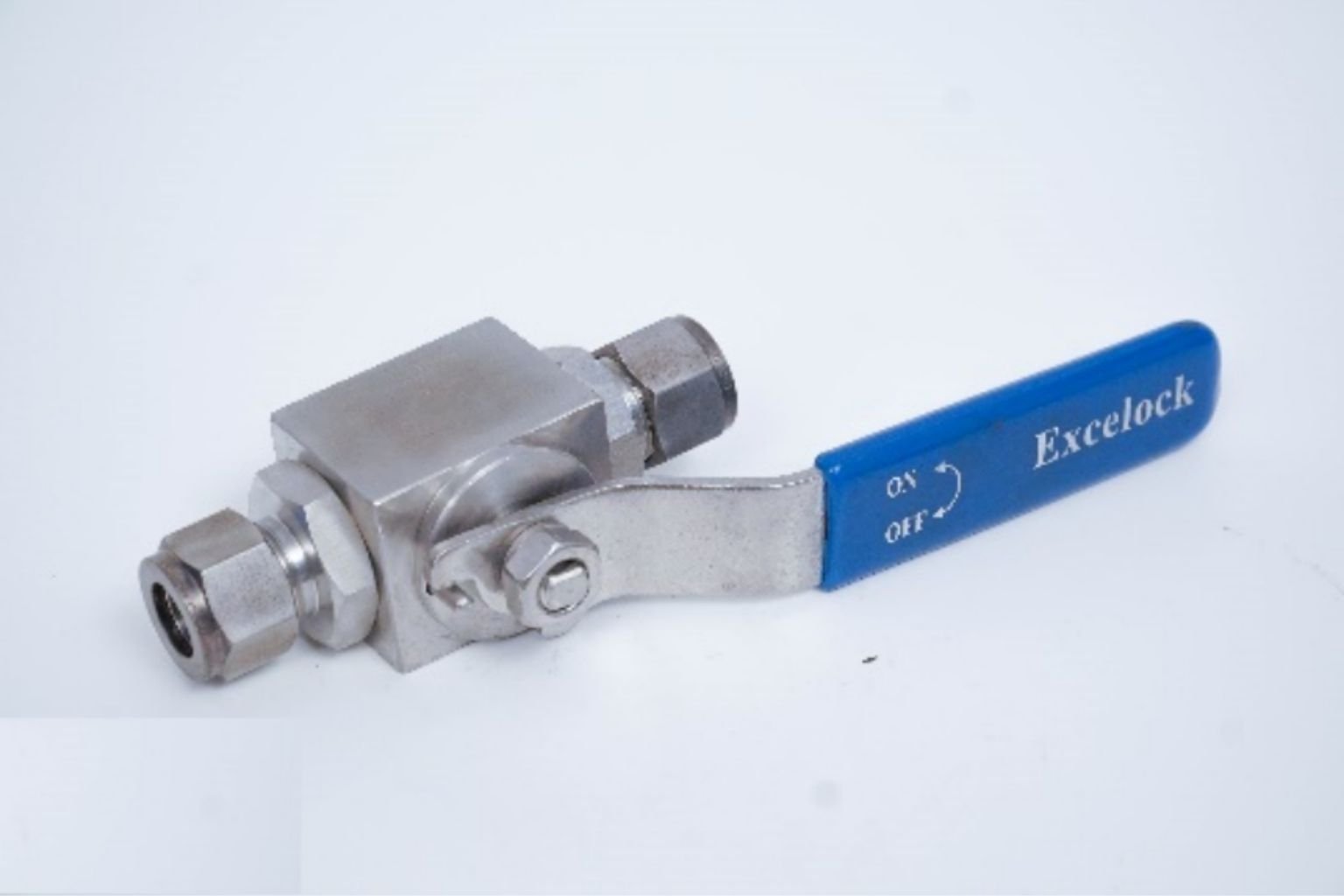

Ball Valve 3pc.Screwed Design : E220T -BV

Sl.No.	Model No.	T" Tube OD	B	L	Test Pressure Hydro
					Body	Seat
1	E220T-BV4	1/4"OD	35.00	68.00	3000 PSI	2000 PSI
2	E220T-BV6	3/8"OD	35.00	68.00	3000 PSI	2000 PSI
3	E220T-BV8	1/2"OD	38.00	76.00	3000 PSI	2000 PSI
4	E220T-BV12	3/4"OD	45.00	86.00	3000 PSI	2000 PSI
5	E220T-BV16	1.0"OD	50.00	86.00	3000 PSI	2000 PSI

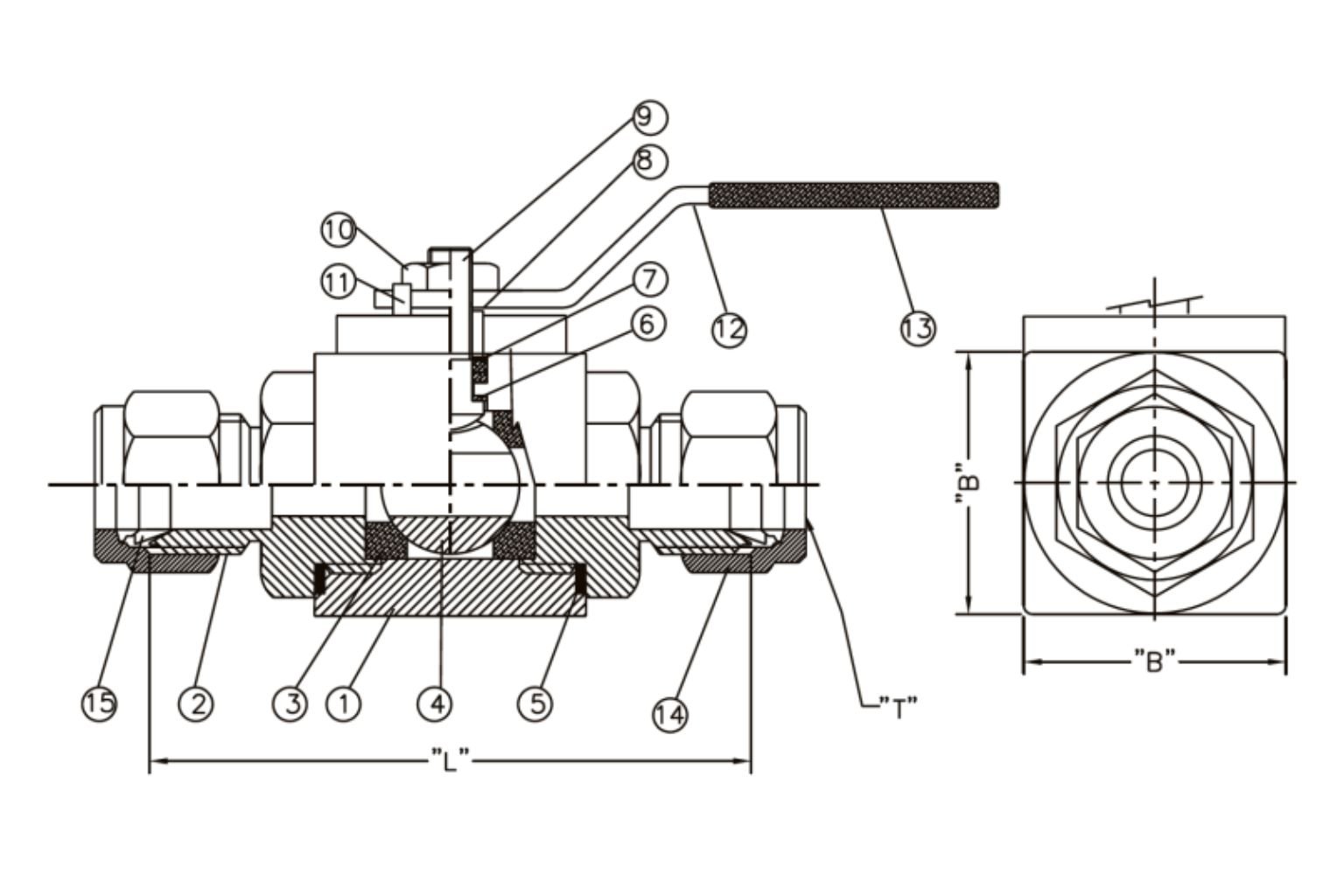

Part No.	Part Description	Material	Qty
1	Body	SS316	1
2	Adaptor	SS316	2
3	Seat Ring	P.T.F.E.	2
4	Ball	SS316	1
5	Gasket	P.T.F.E.	2
6	Seal Ring	P.T.F.E.	1
7	Gland Seal	P.T.F.E.	2
8	Retainer Nut	SS316	2
9	Stem	SS316	1
10	Lock Nut	SS316	1
11	Stopper Pin	SS316	1
12	Handle	SS304	1
13	Handle Sleeve	P.V.C.	1
14	Nut	SS316	2
15	Ferrule Set	SS316	2
