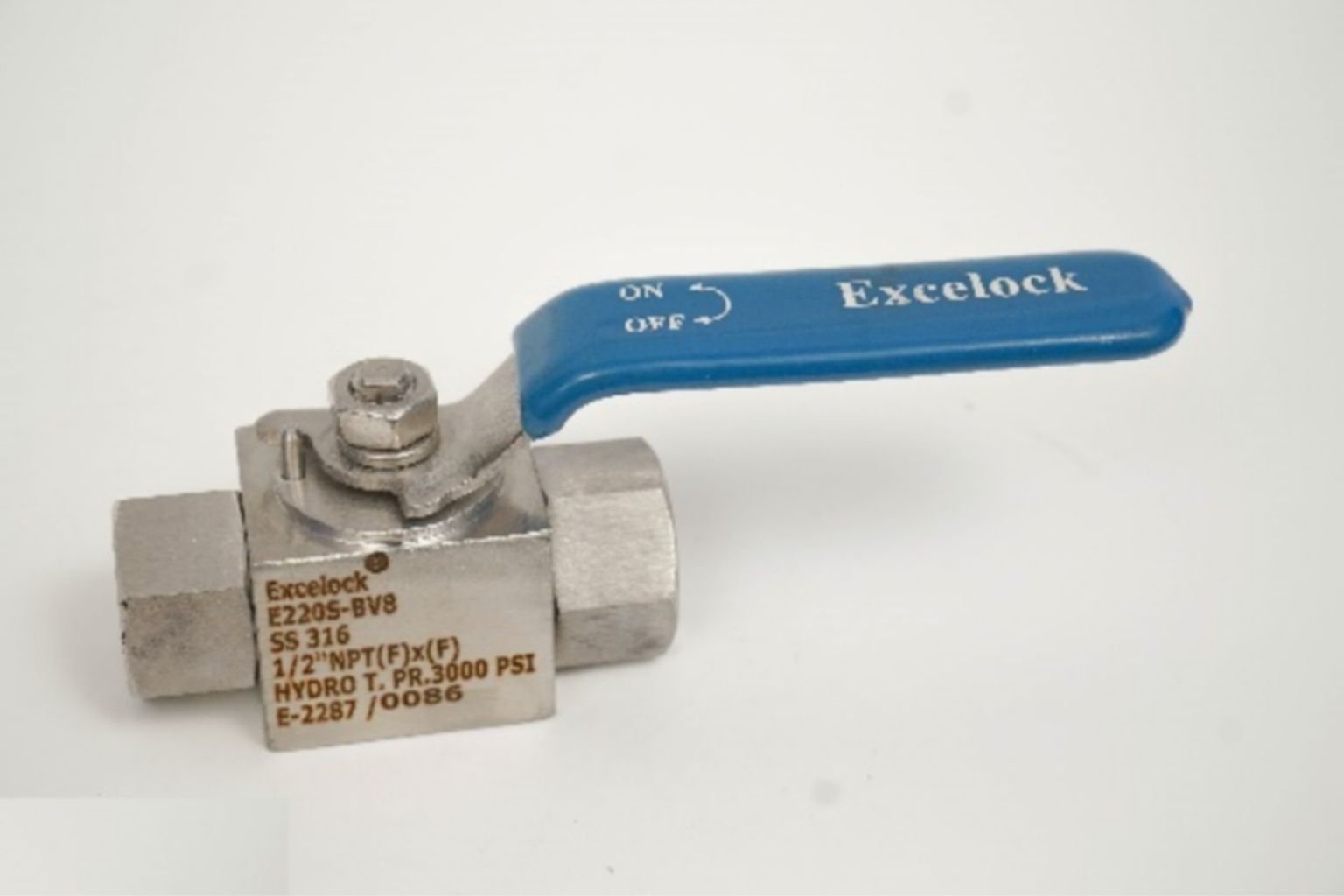

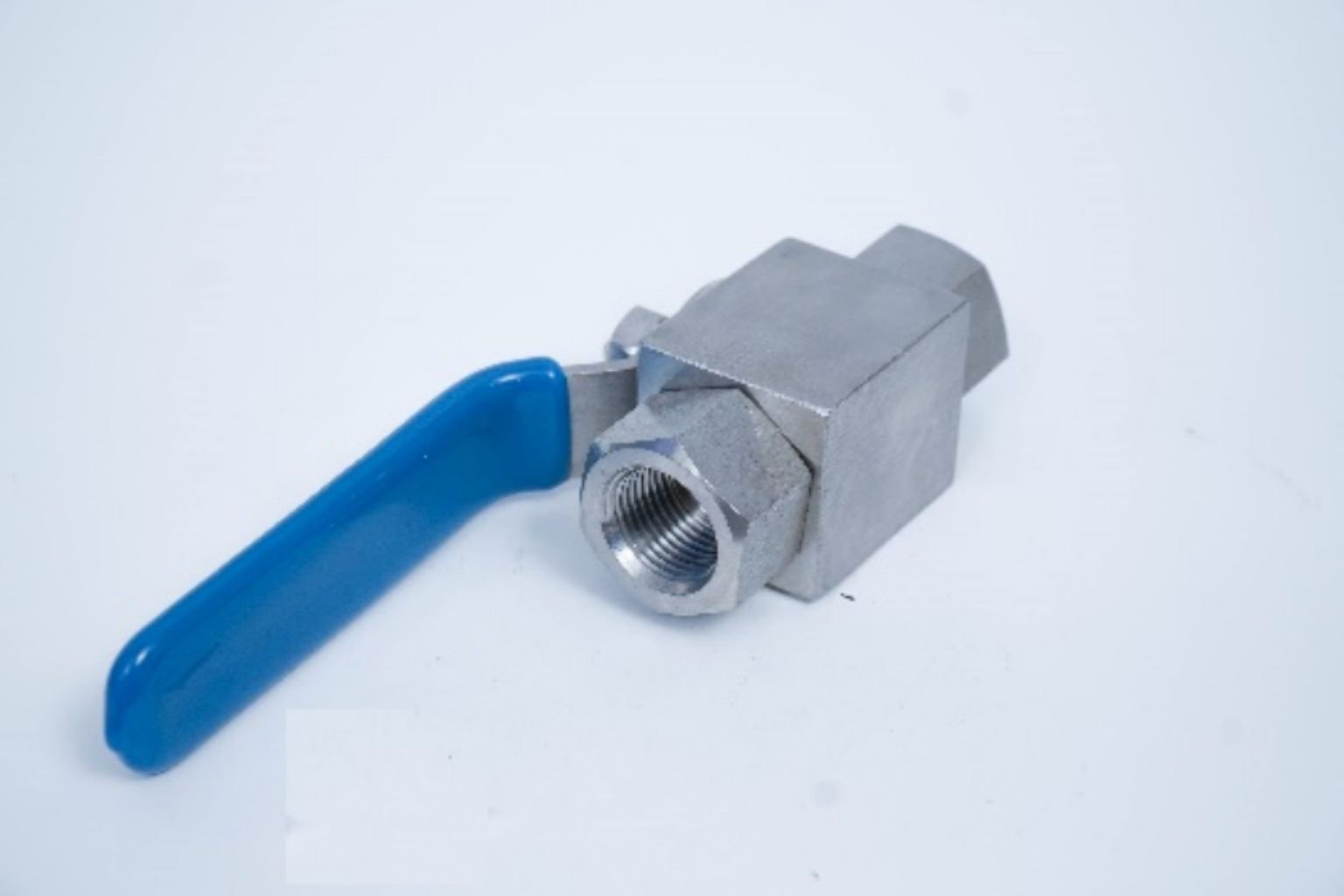

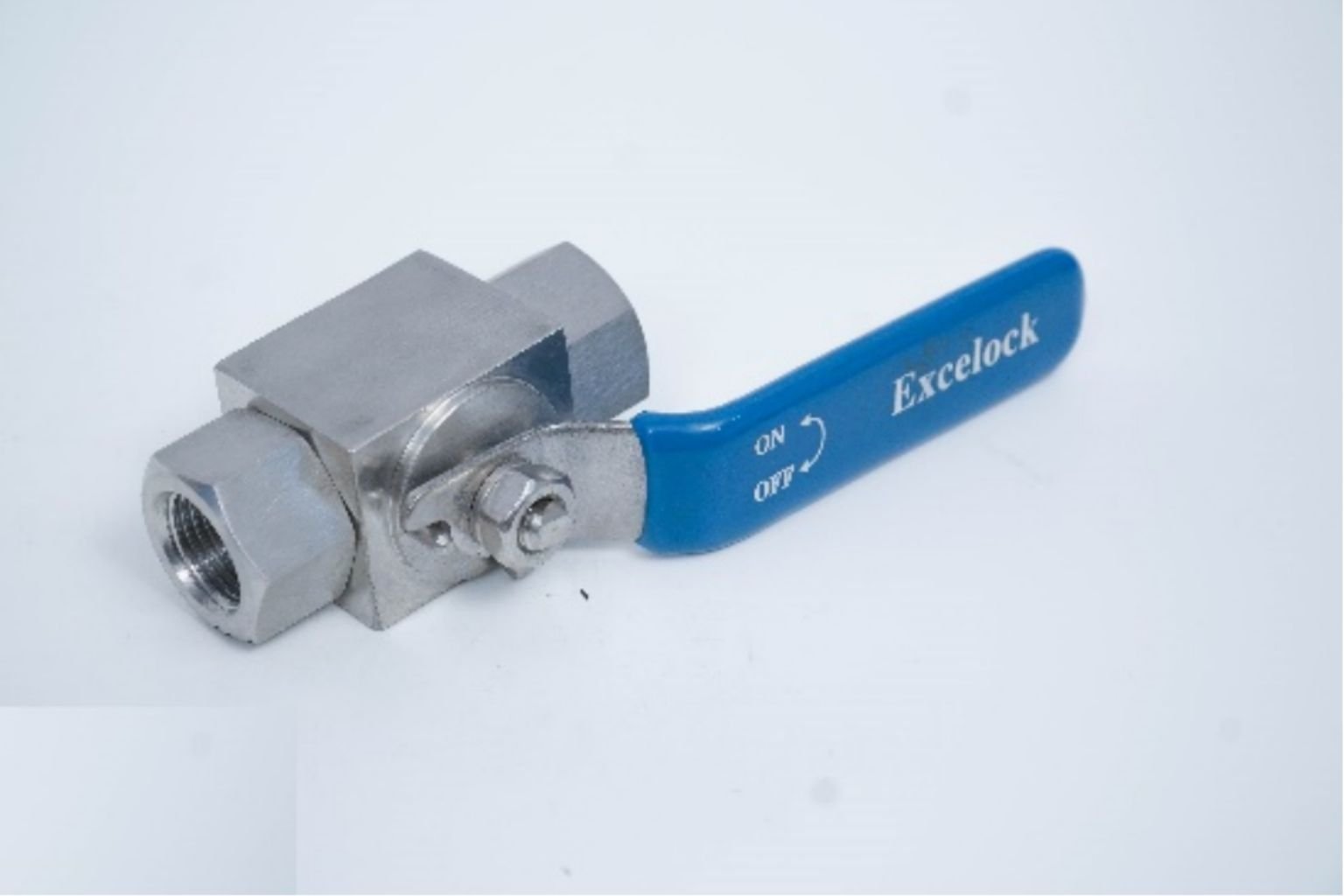

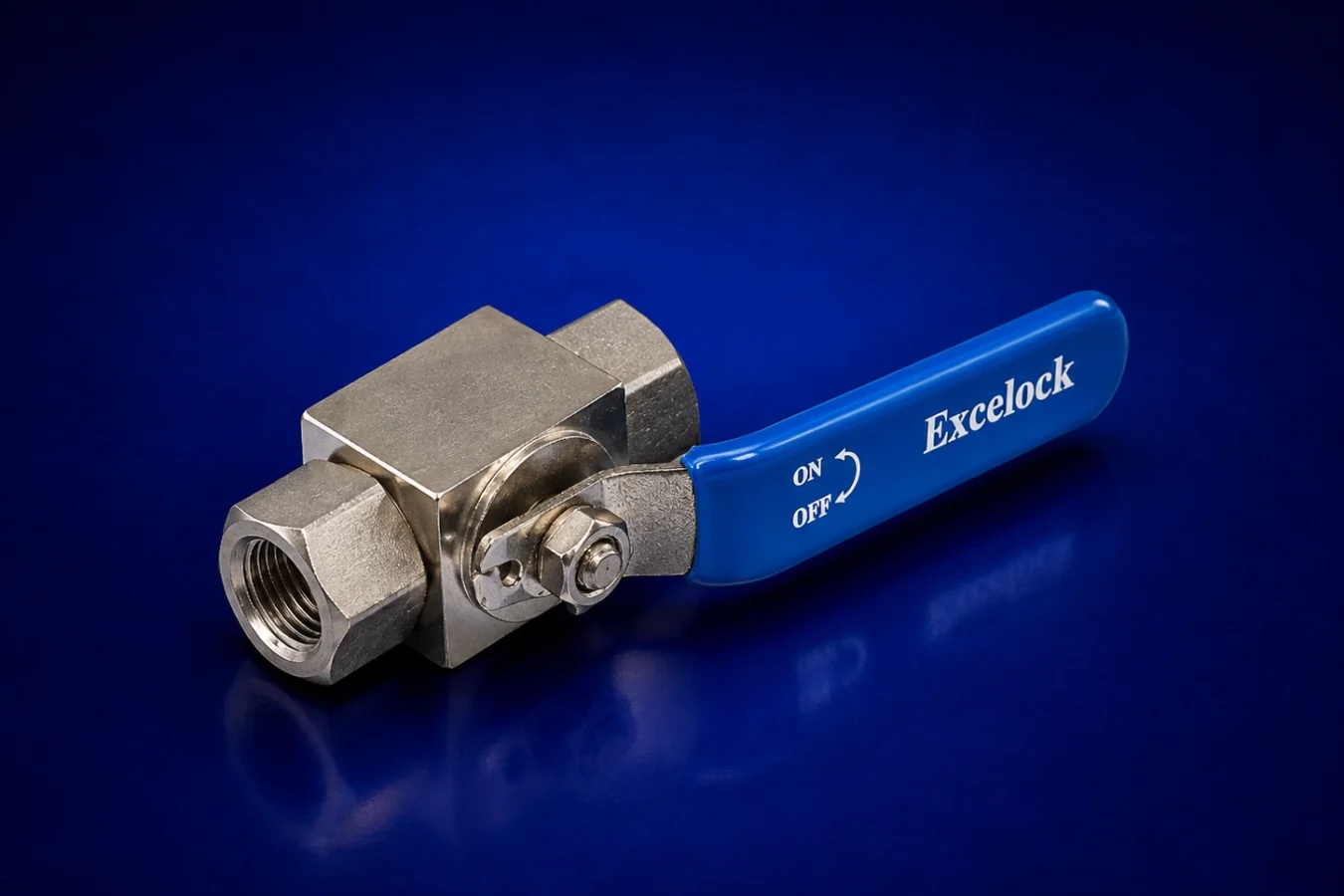

Ball Valve ( 3pc. Design ): E220S -BV

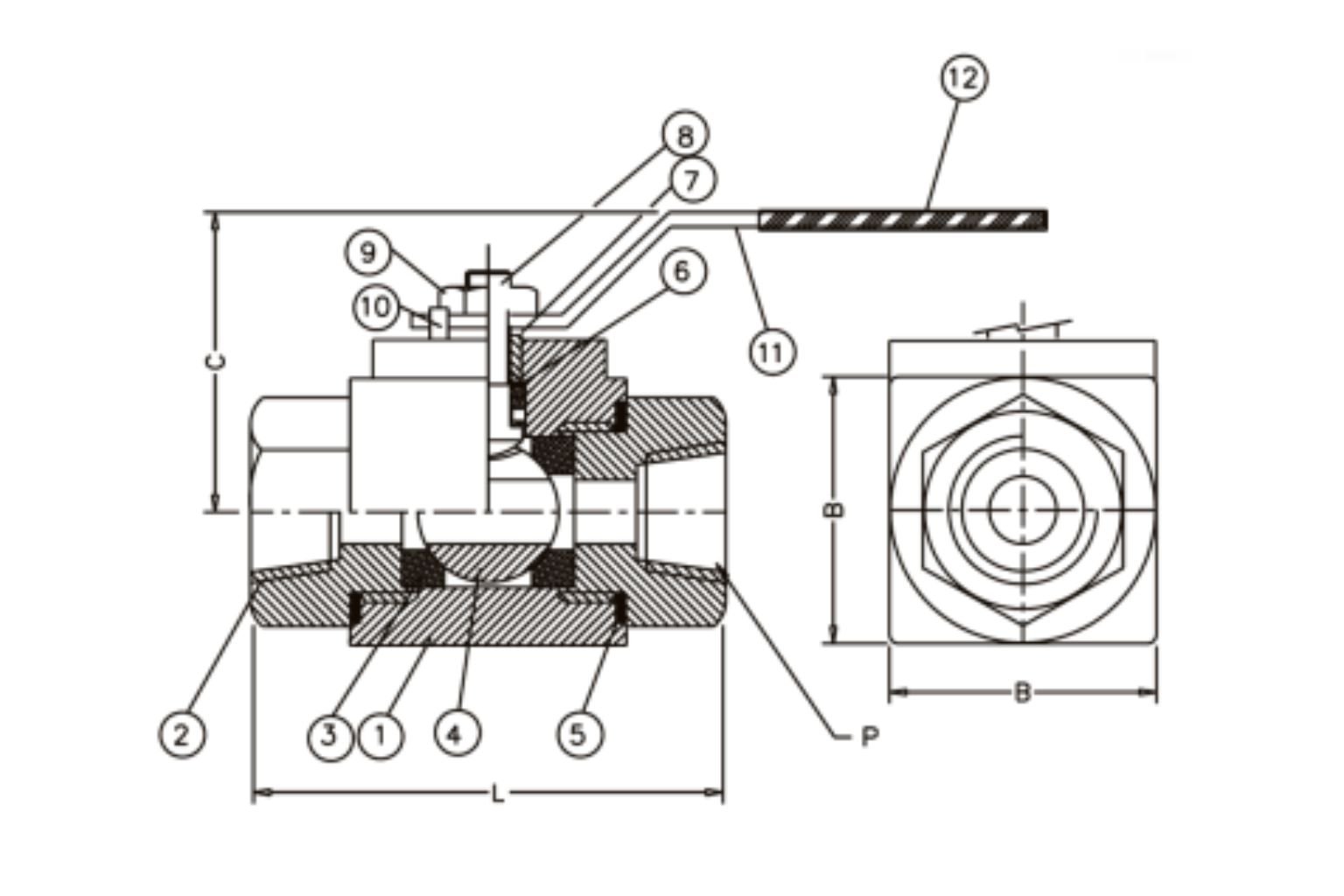

Sl.No.	Model No.	P NPT(F)	B	L	C	Test Pressure Hydro
1	E220S-BV4	1/4"	28.00	62.00	42.00	3000 PSI	2000 PSI
2	E220S-BV6	3/8"	28.00	62.00	42.00	3000 PSI	2000 PSI
3	E220S-BV8	1/2"	35.00	85.00	60.00	3000 PSI	2000 PSI
4	E220S-BV12	3/4"	40.00	100.00	60.00	3000 PSI	2000 PSI
5	E220S-BV16	1.0"	50.00	110.00	75.00	3000 PSI	2000 PSI

Part No.	Part Description	Material	Qty
1	Body	SS316	1
2	Adaptor	SS316	2
3	Seat Ring	P.T.F.E.	2
4	Ball	SS316	1
5	Gasket	P.T.F.E.	2
6	Gland Seal	P.T.F.E.	2
7	Retainer Nut	SS316	2
8	Stem	SS316	1
9	Lock Nut	SS316	1
10	Stopper Pin	SS316	1
11	Handle	SS304	1
12	Handle Sleeve	P.V.C.	1

Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.
