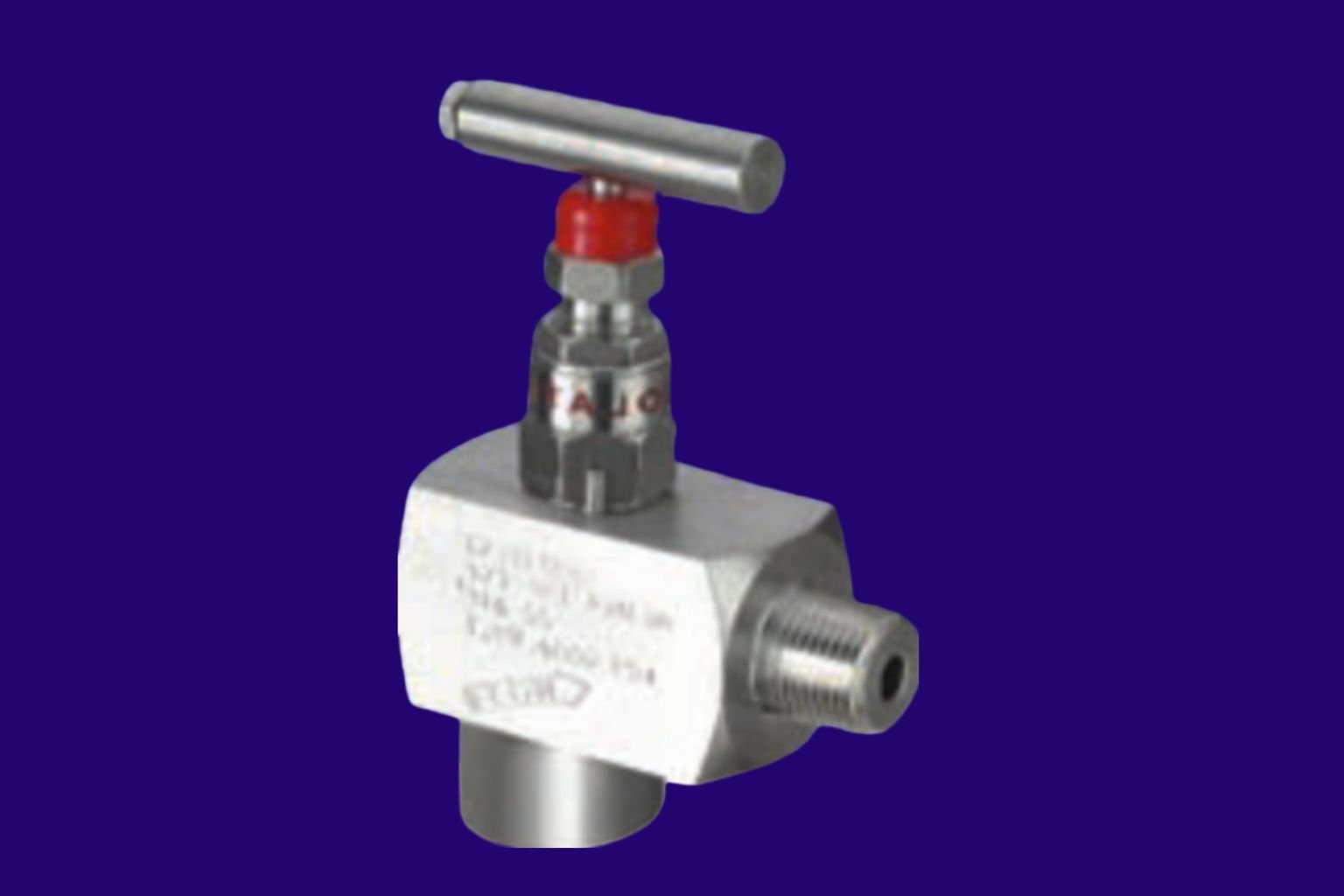

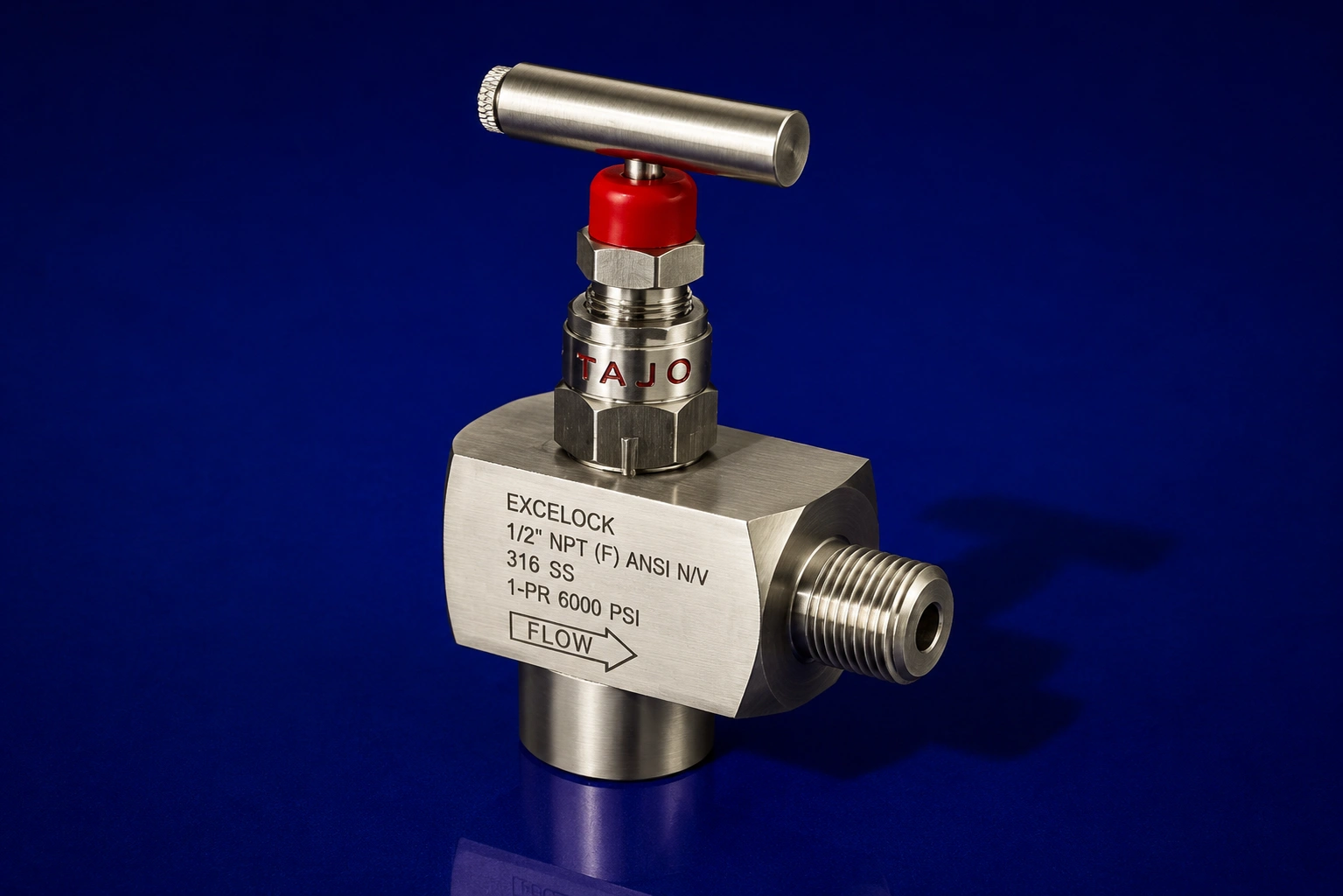

Angle Type Needle Valve : FNPTX MNPT : E 108 NV

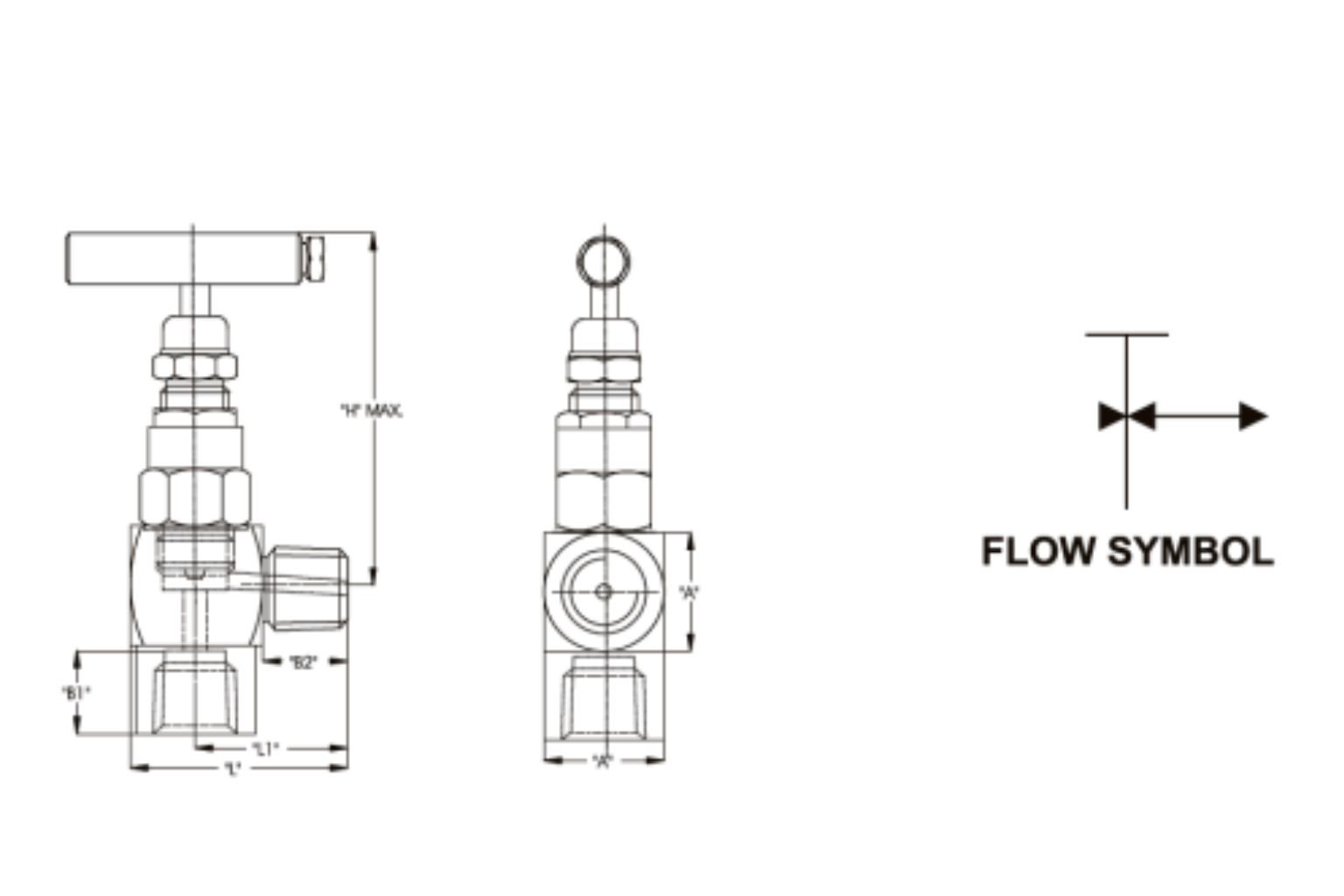

Sl.No.	Model No.	Inlet	Outlet	A "mm"	B1 "mm"	B2 "mm"	L "mm"	L1 "mm"	H "mm"
1	E 108 NV2	1/8"	1/8"	28.00	10.00	10.00	44.00	29.00	87.00
2	E 108 NV4	1/4"	1/4"	28.00	14.00	14.00	44.00	29.00	87.00
3	E 108 NV6	3/8"	3/8"	28.00	14.00	14.00	44.00	29.00	87.00
4	E 108 NV8	1/2"	1/2"	32.00	19.00	19.00	50.00	35.00	89.00
5	E 108 NV12	3/4"	3/4"	40.00	19.00	19.00	50.00	35.00	89.00
6	E 108 NV16	1"	1"	45.00	24.00	24.00	72.00	49.50	108.00

Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.
