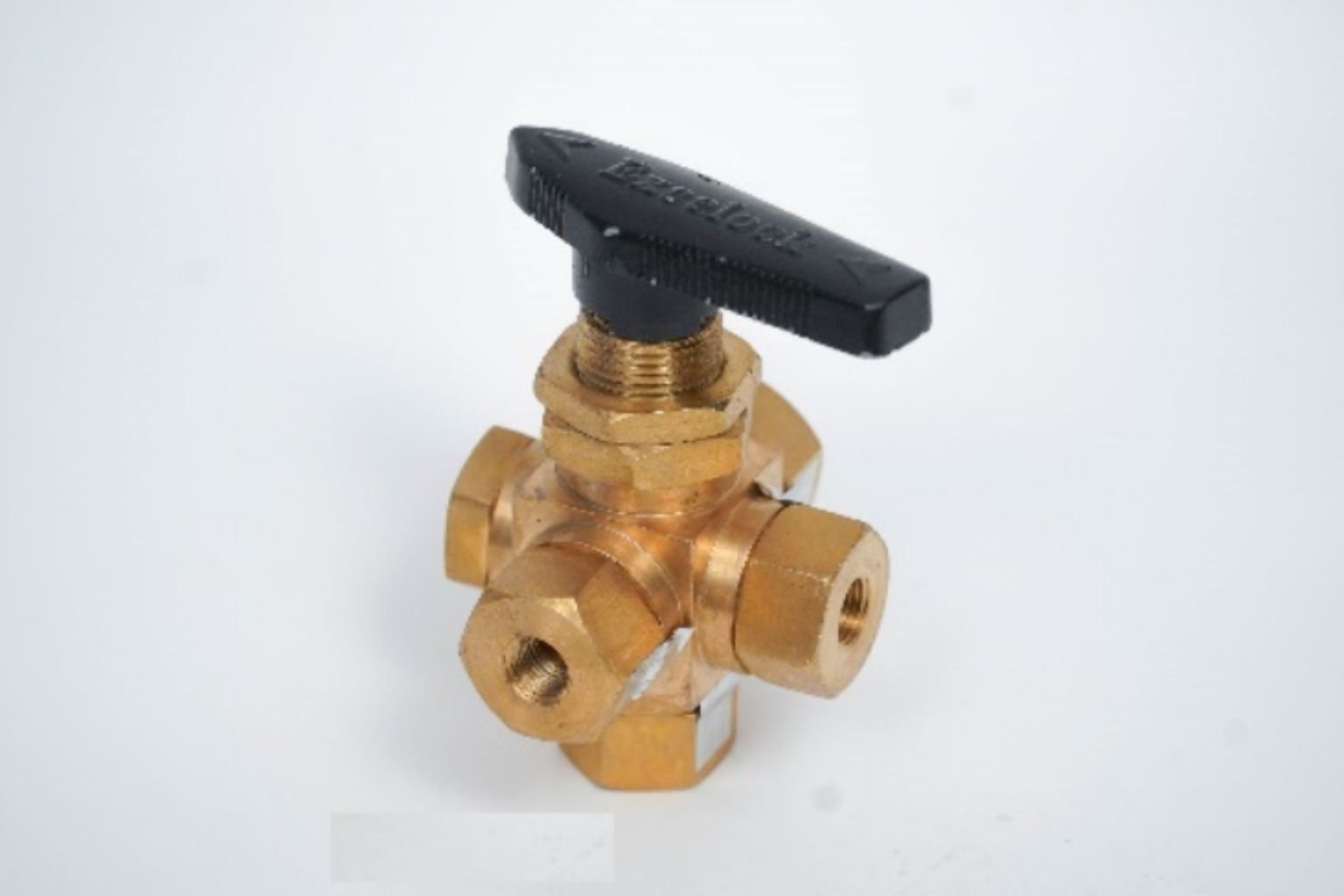

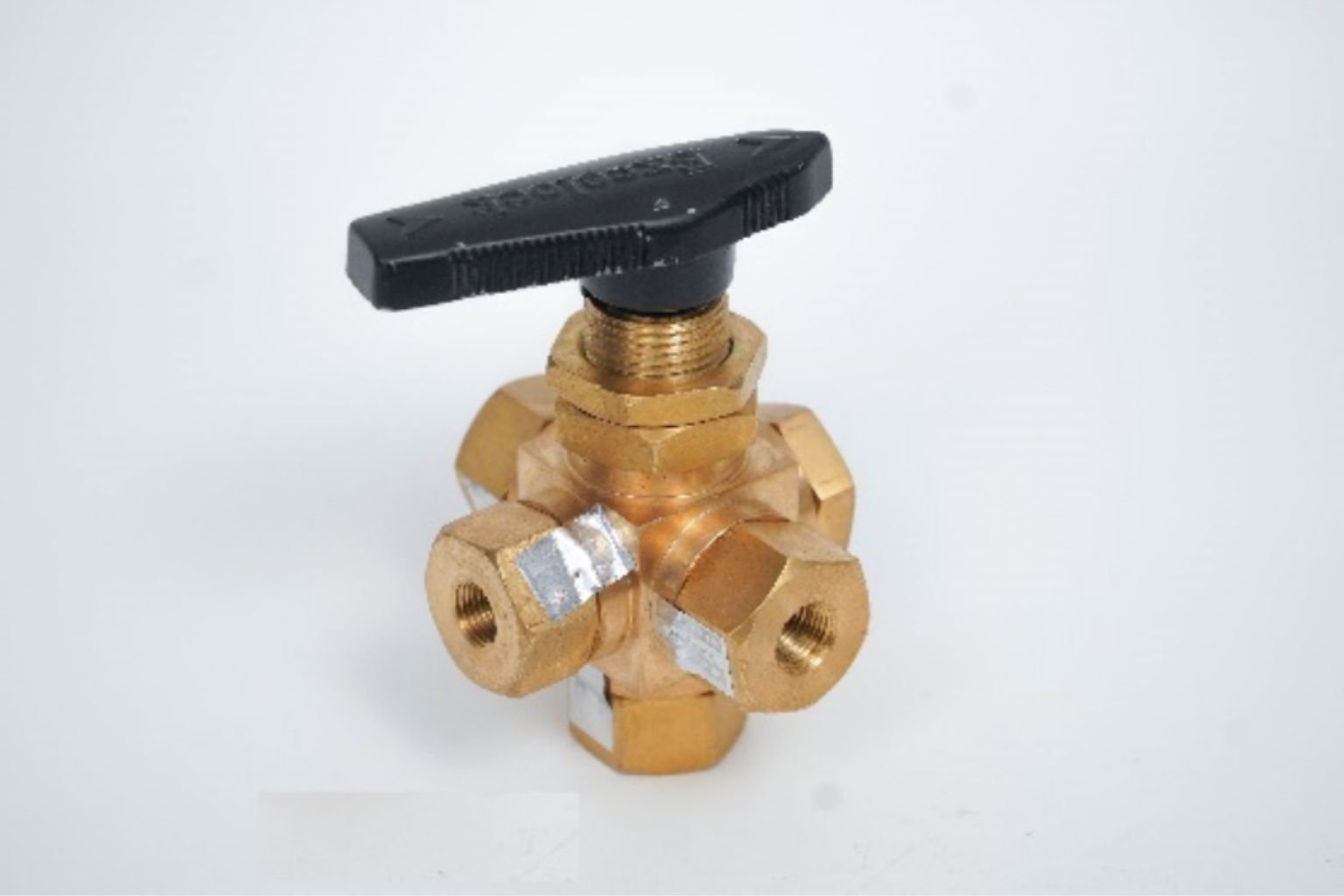

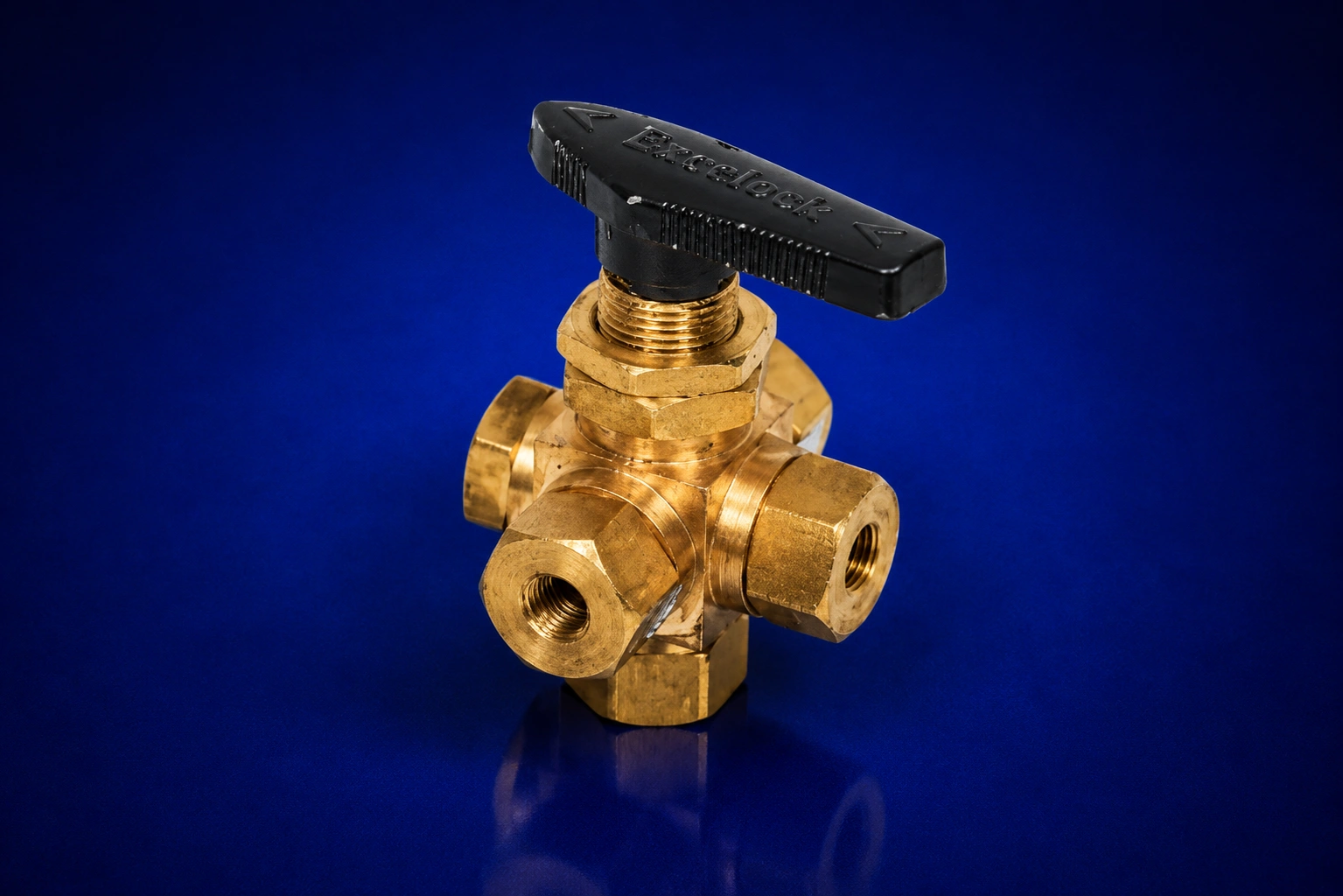

5Way Ball Valve : E250W5-BV

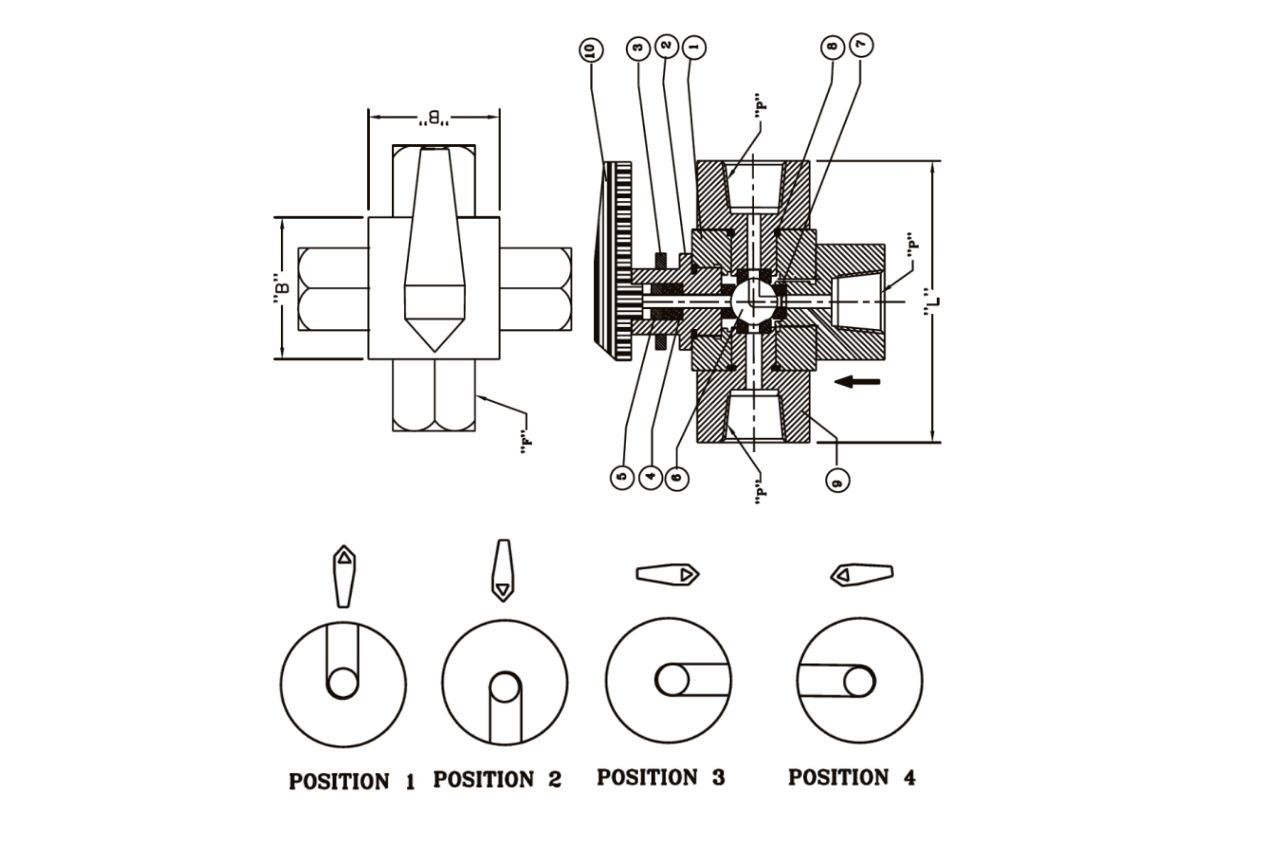

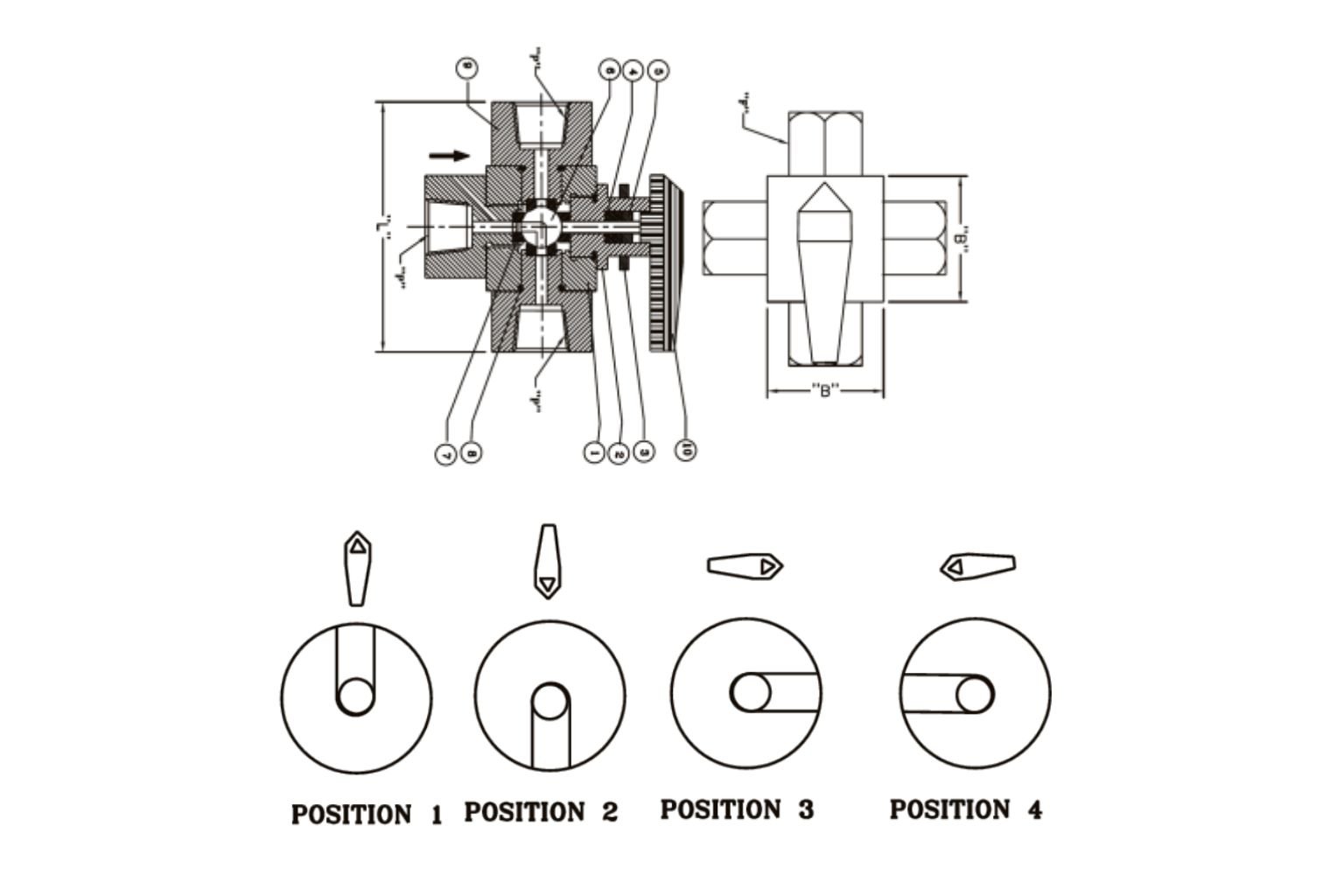

NO.	DESCRIPTION	MATRL.	QTY.
01	BODY	SS316	01
02	GLAND BODY	SS316	01
03	CHECK NUT	SS316	01
04	GLAND PACKING	P.T.F.E.	02
05	GLAND RETAINER	SS316	01
06	BALL	SS 316	01
07	SEAT	P.T.F.E.	05
08	SEAL	SS316	06
09	ADAPTOR 1/4" NPT(F)	SS316	05
10	HANDLE	BACKLITE	01

Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.

Sl.No.	Model No.	T" Tube OD	B	L	Test Pressure Hydro
					Body	Seat
1	E220T-BV4	1/4"OD	35.00	68.00	3000 PSI	2000 PSI
2	E220T-BV6	3/8"OD	35.00	68.00	3000 PSI	2000 PSI
3	E220T-BV8	1/2"OD	38.00	76.00	3000 PSI	2000 PSI
4	E220T-BV12	3/4"OD	45.00	86.00	3000 PSI	2000 PSI
5	E220T-BV16	1.0"OD	50.00	86.00	3000 PSI	2000 PSI

Part No.	Part Description	Material	Qty
1	Body	SS316	1
2	Adaptor	SS316	2
3	Seat Ring	P.T.F.E.	2
4	Ball	SS316	1
5	Gasket	P.T.F.E.	2
6	Seal Ring	P.T.F.E.	1
7	Gland Seal	P.T.F.E.	2
8	Retainer Nut	SS316	2
9	Stem	SS316	1
10	Lock Nut	SS316	1
11	Stopper Pin	SS316	1
12	Handle	SS304	1
13	Handle Sleeve	P.V.C.	1
14	Nut	SS316	2
15	Ferrule Set	SS316	2
