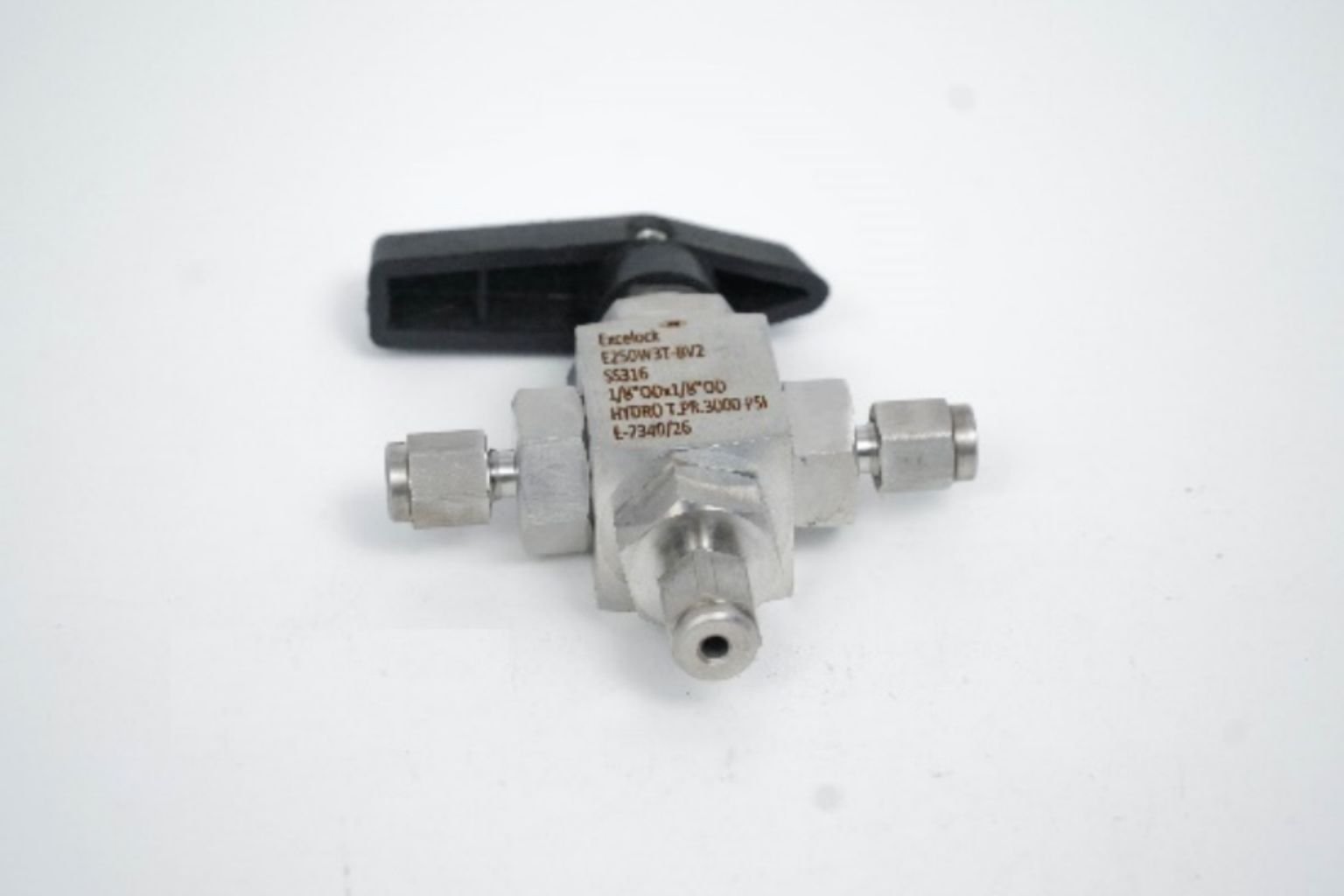

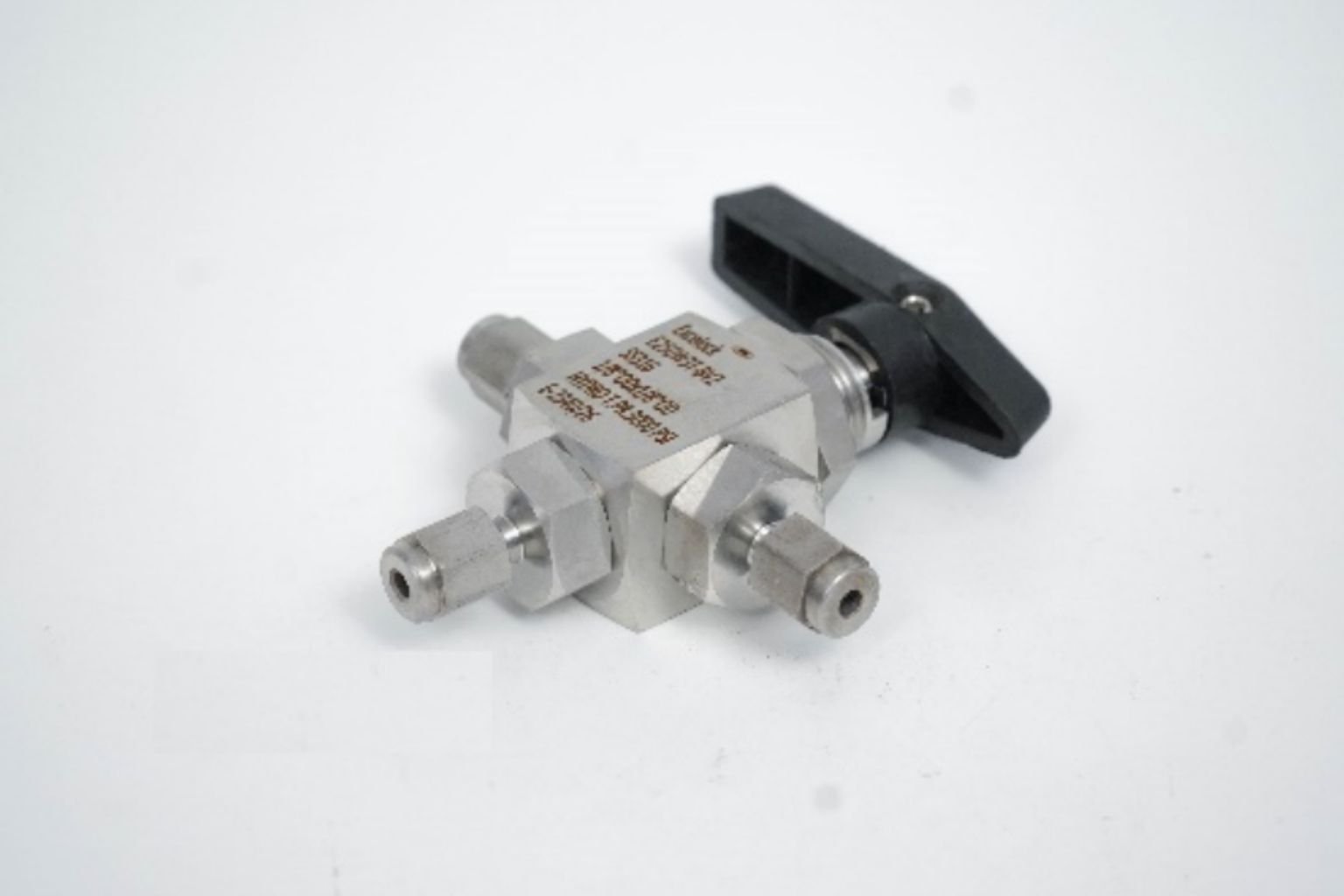

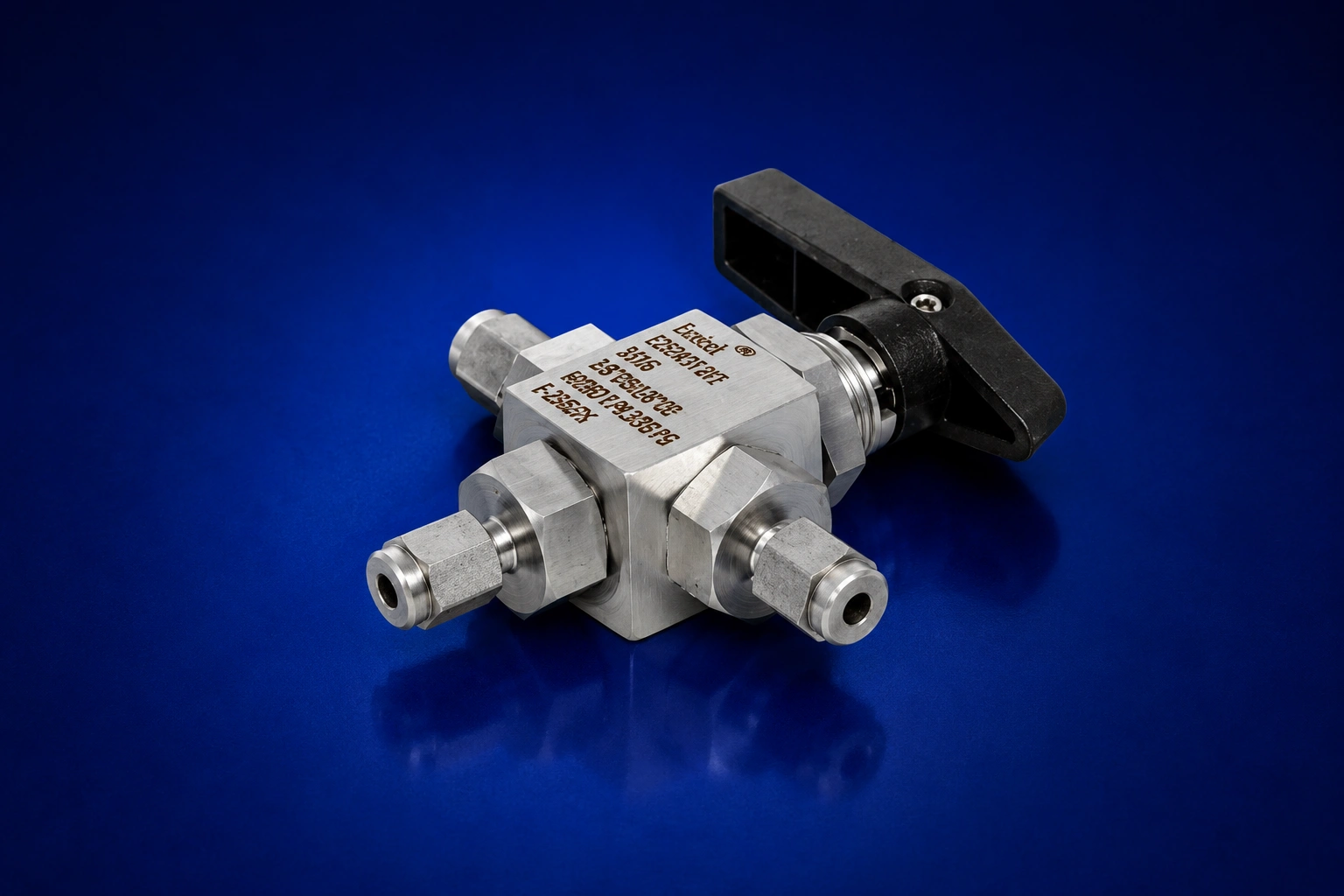

3Way Ball Valves Tube OD : E250W3T -BV

Sl.No.	Model No.	T" Tube OD	B	L	F" A/F	Test Pressure Hydro
						Body	Seat
1	E250W3T-BV2	1/8"	24.00	80.00	19.00	3000 PSI	2000 PSI
2	E250W3T-BV4	1/4"	24.00	90.00	19.00	3000 PSI	2000 PSI
3	E250W3T-BV6	3/8"	24.00	90.00	22.00	3000 PSI	2000 PSI
4	E250W3T-BV8	1/2"	32.00	100.00	27.00	3000 PSI	2000 PSI
5	E250W3T-BV12	3/4"	42.00	100.00	36.00	3000 PSI	2000 PSI

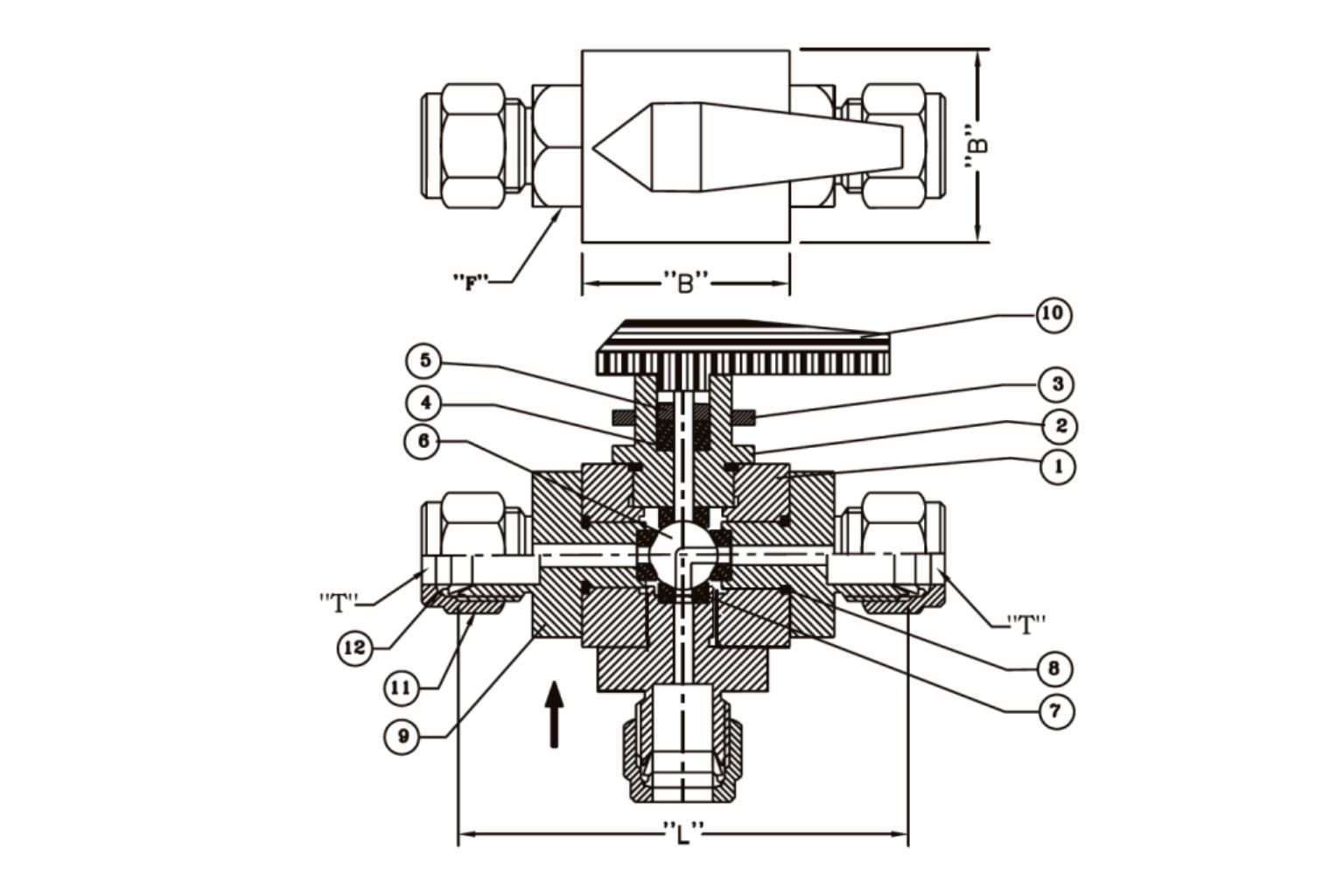

NO.	DESCRIPTION	MATRL.	QTY.
01	BODY	SS316	01
02	GLAND BODY	SS316	01
03	CHECK NUT	SS316	01
04	GLAND PACKING	P.T.F.E.	02
05	GLAND RETAINER	SS316	01
06	BALL	SS 316	01
07	SEAT	P.T.F.E.	03
08	SEAL	SS316	04
09	ADAPTOR 1/4" OD	SS316	03
10	HANDLE	BACKLITE	01
11	NUT	SS 316	03
12	FERULE SET	SS 316	03

Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.
