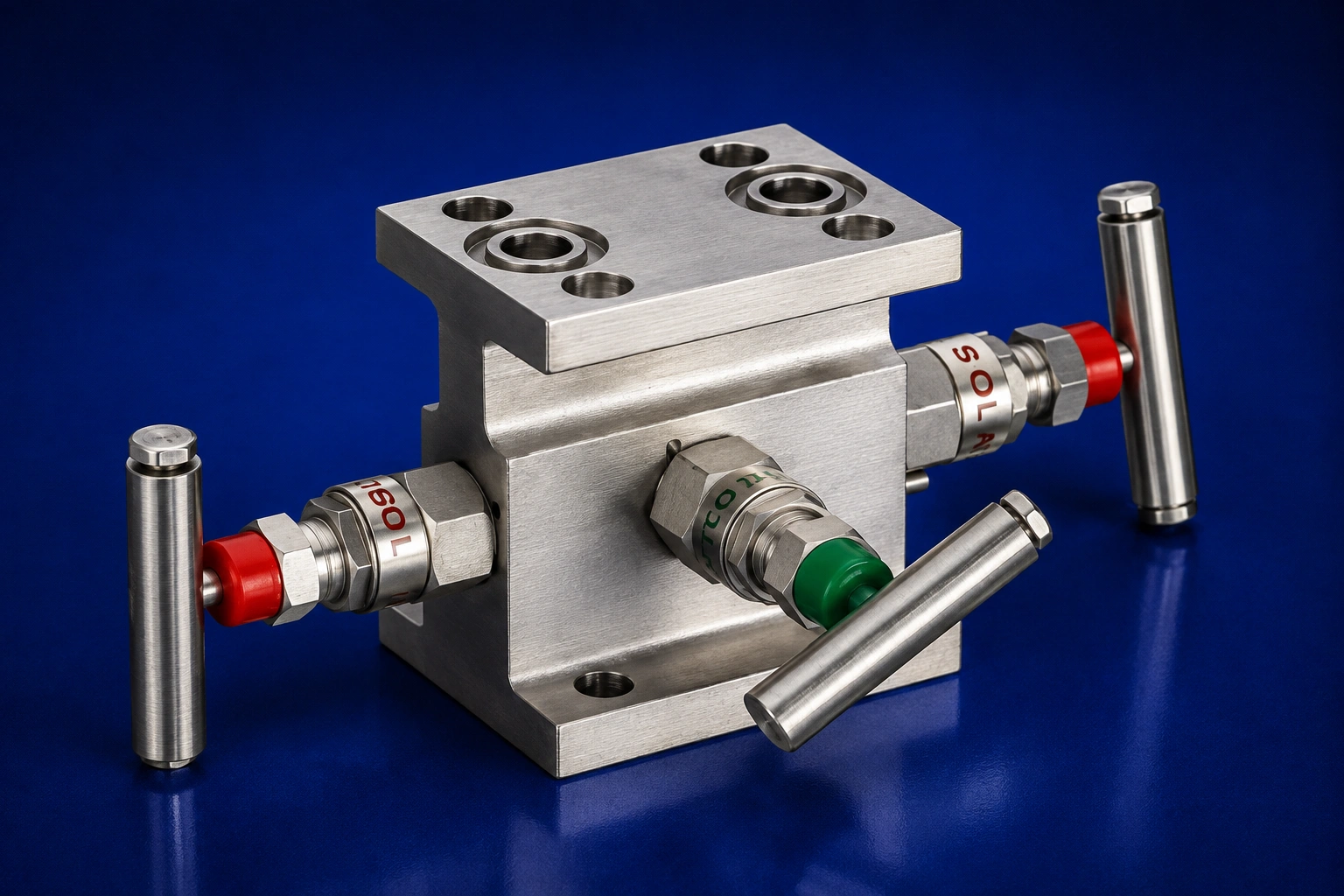

3 Valve Manifold H-Type : E301 FF

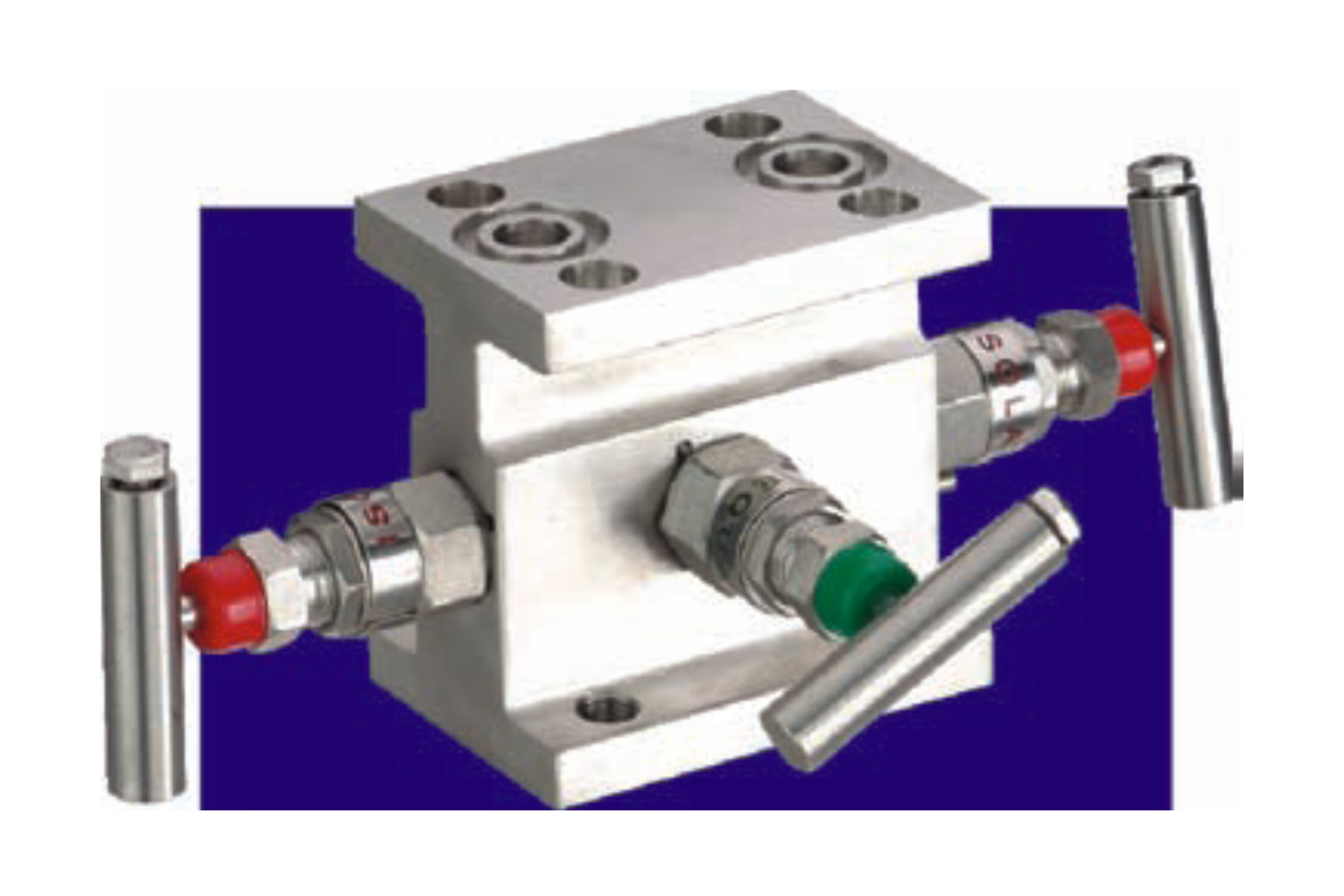

3 Valve Manifold H-Type _ E301 FF (4)
3 Valve Manifold H-Type _ E301 FF (2)

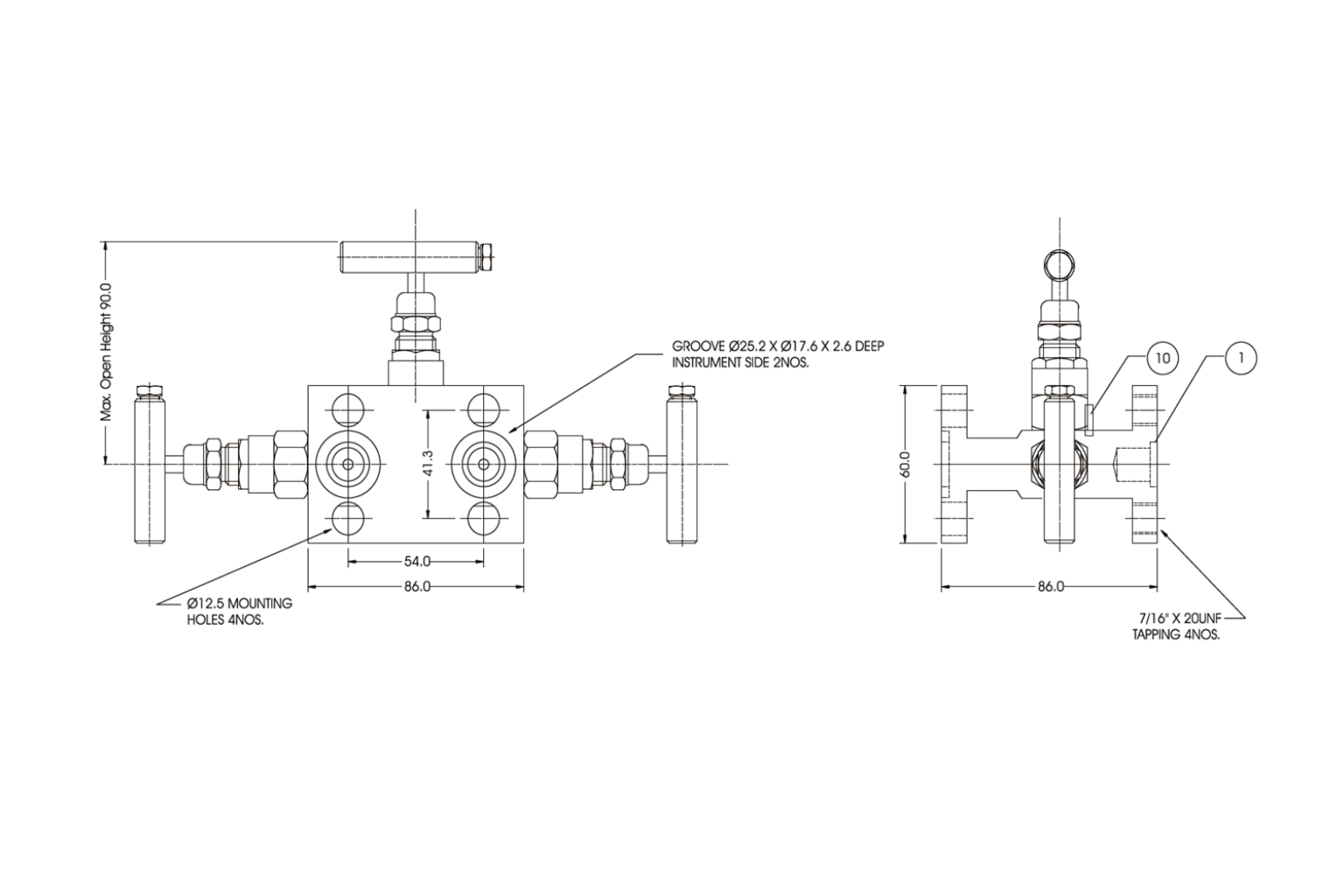

3 Valve Manifold H-Type _ E301 FF (3)

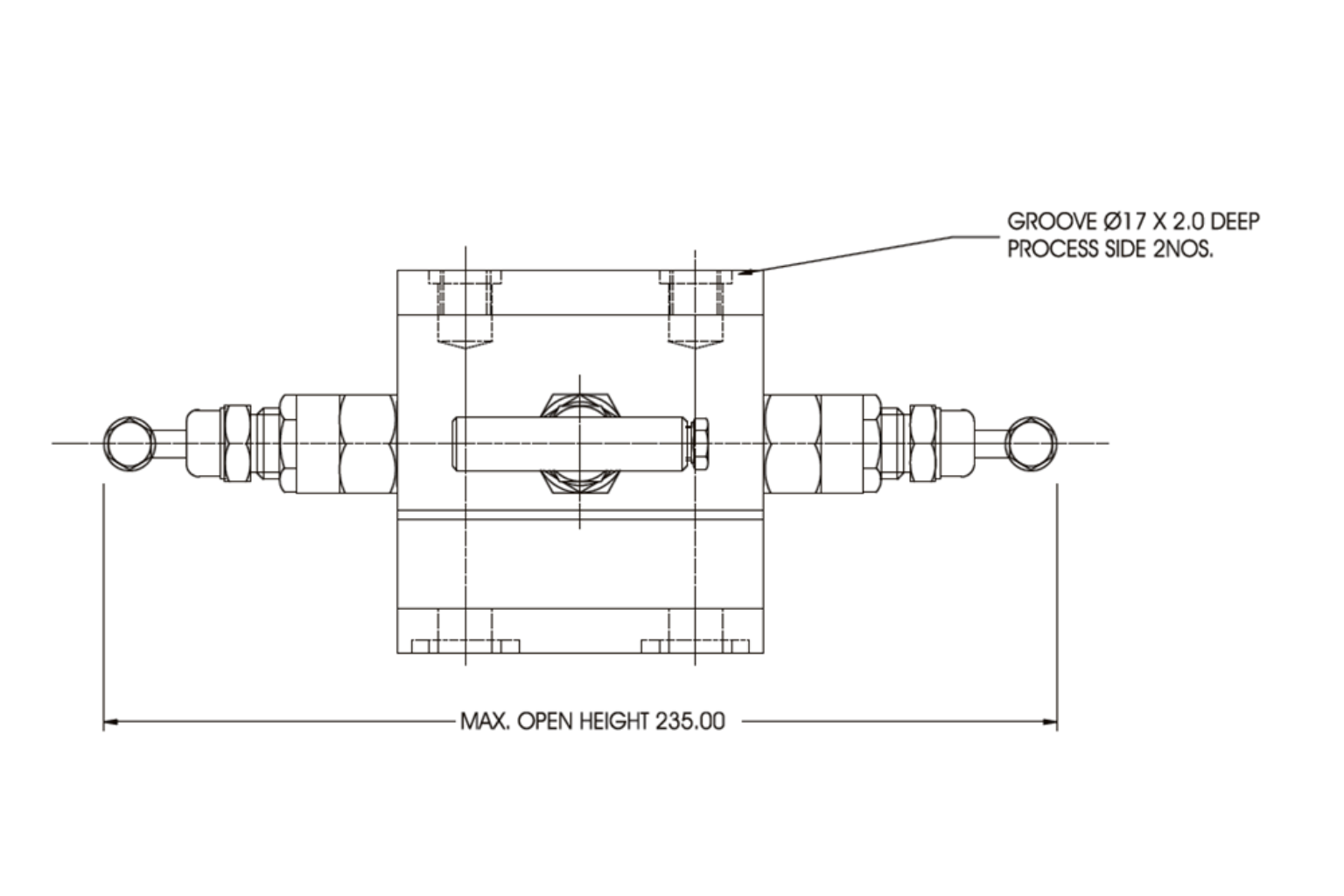

3 Valve Manifold H-Type _ E301 FF

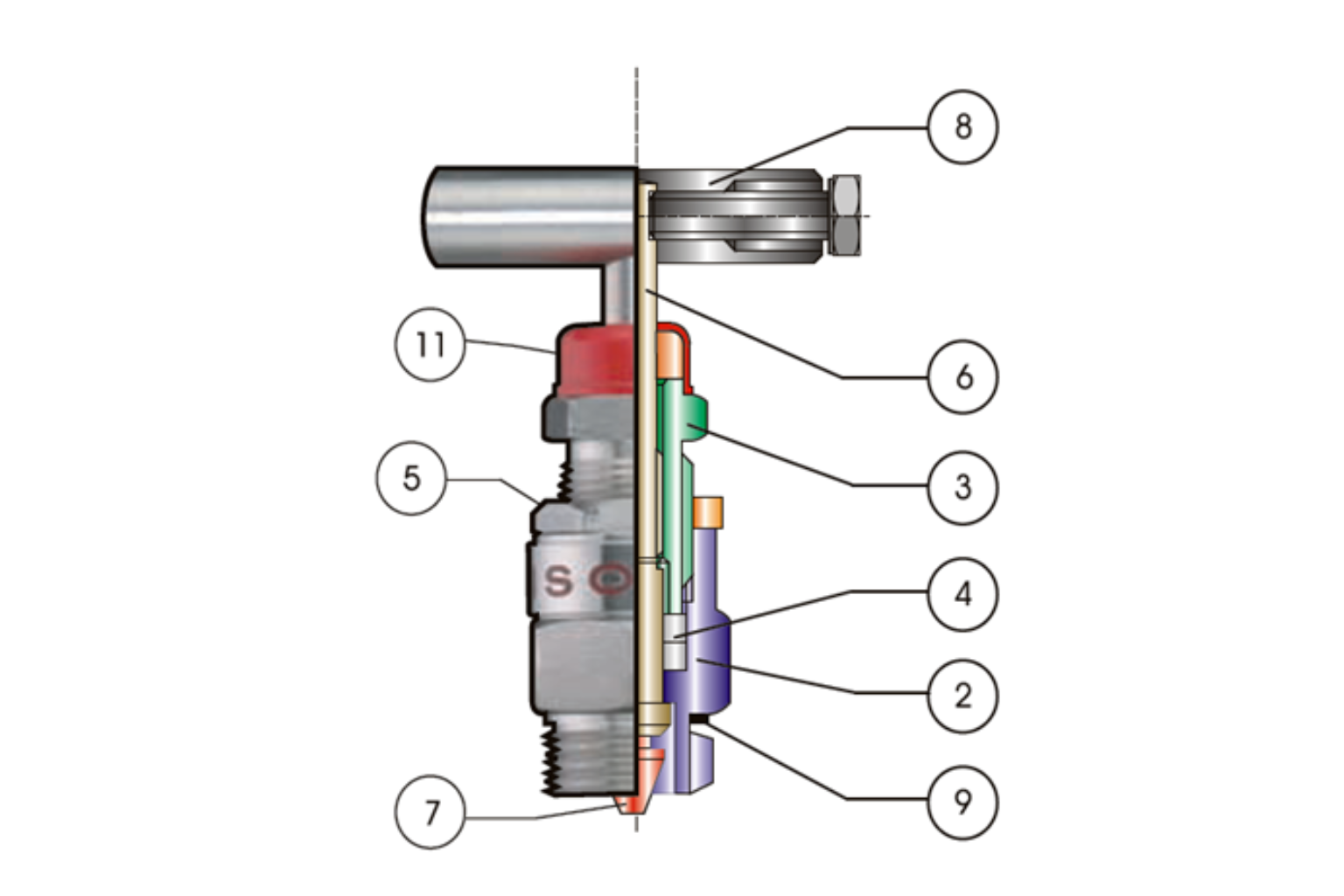

Part No.Part DescriptionMaterialQuantity
1BodySS 3161
2Gland BodySS 3163
3Gland RetainerSS 3043
4Gland SealP.T.F.E.6
5Check NutSS 3043
6SpindleSS 3163
7TrimSS 3163
8HandleSS 3043
9WasherSS 3163
10Lock PinSS 3043
11Dust CapP.V.C.3
Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.
