2 Valve Manifold T- Type : E370 DM

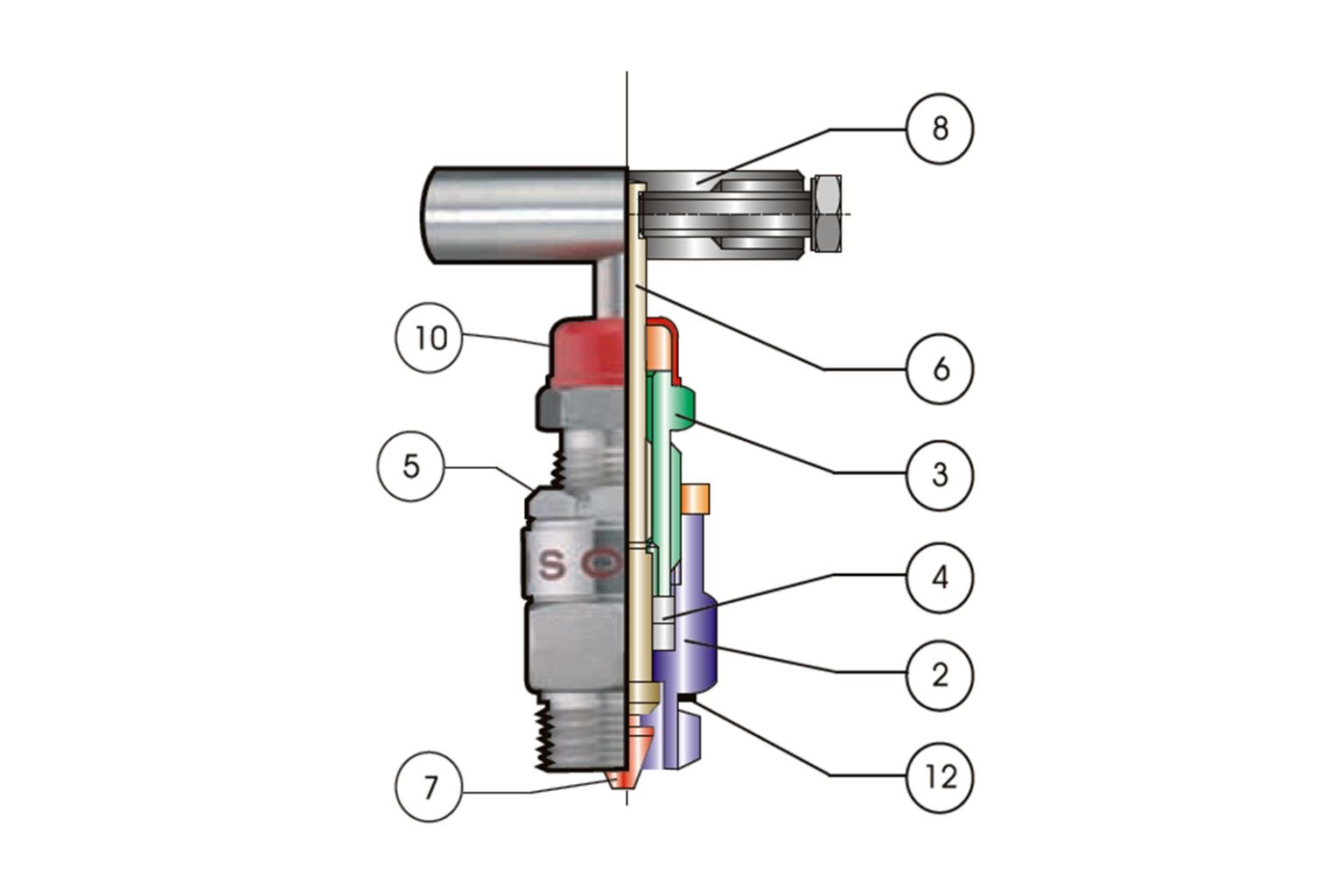

Part No.	Part Description	Material	Quantity
1	Body	SS 316	1
2	Gland Body	SS 316	2
3	Gland Retainer	SS 304	2
4	Gland Seal	P.T.F.E.	4
5	Check Nut	SS 304	2
6	Spindle	SS 316	2
7	Trim	SS 316	2
8	Handle	SS 304	2
9	Washer	SS 316	2
10	Lock Pin	SS 304	2
11	Dust Cap	P.V.C.	2
12	Drain Plug 1/4"NPT(M)	SS 316	1

Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.
