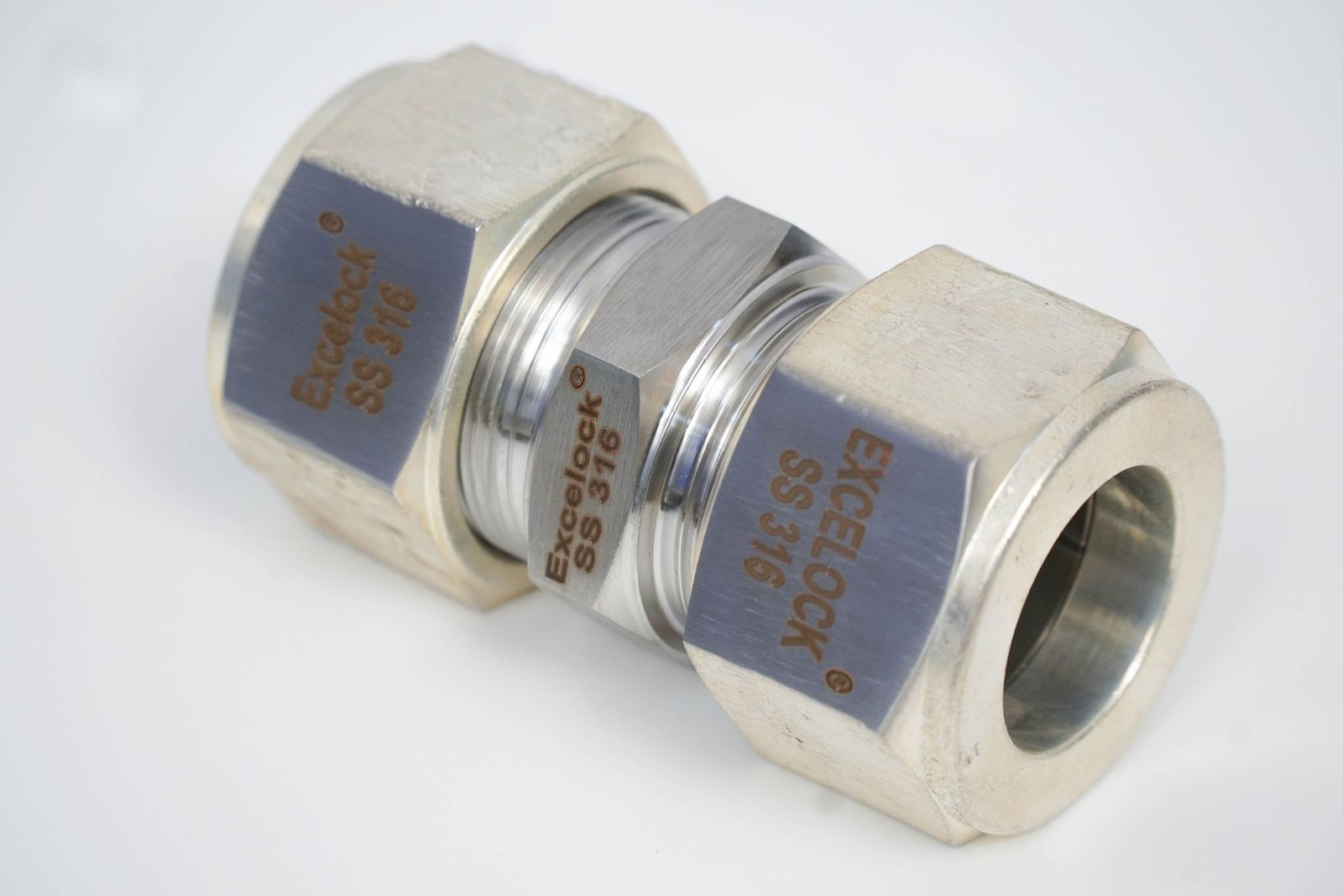

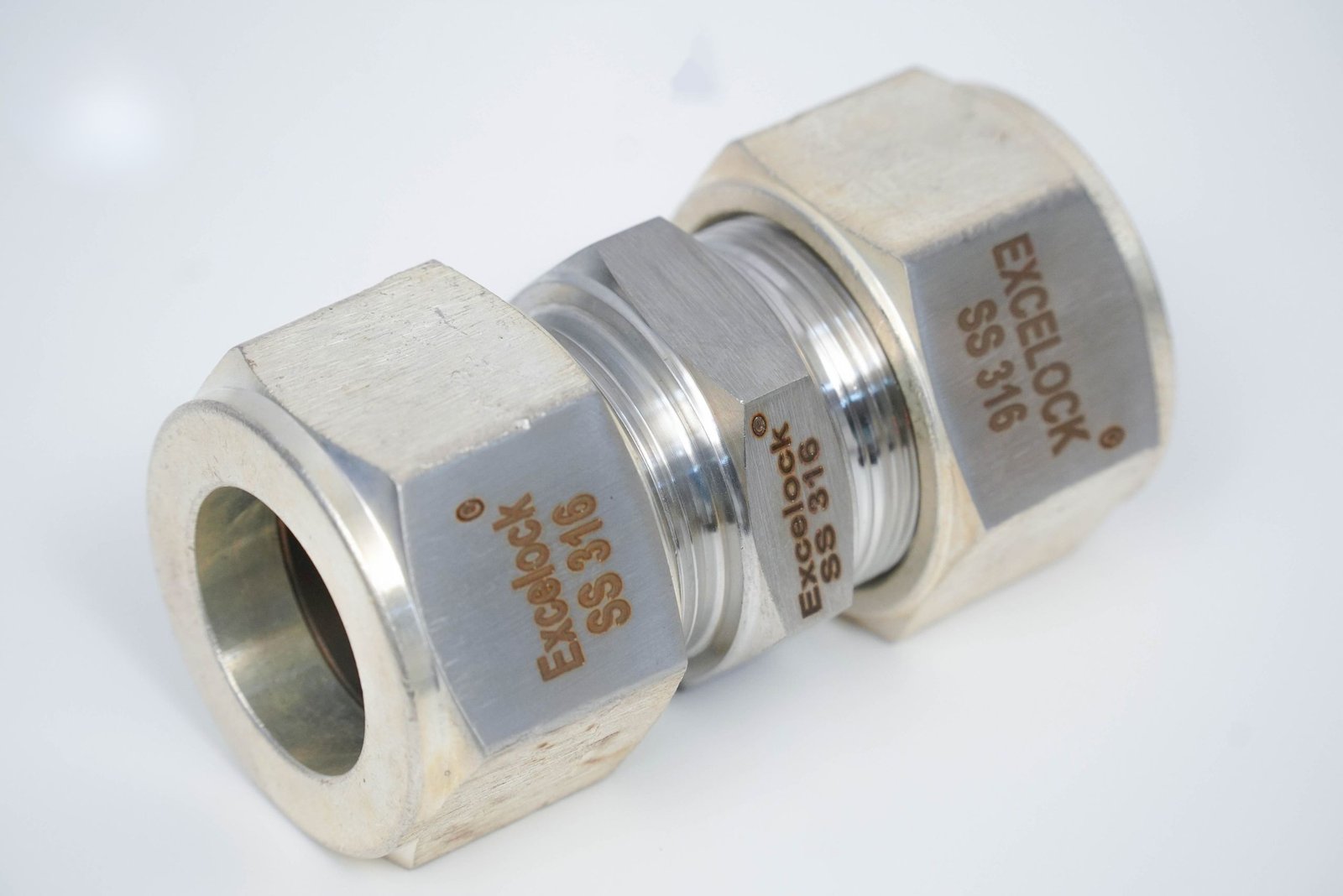

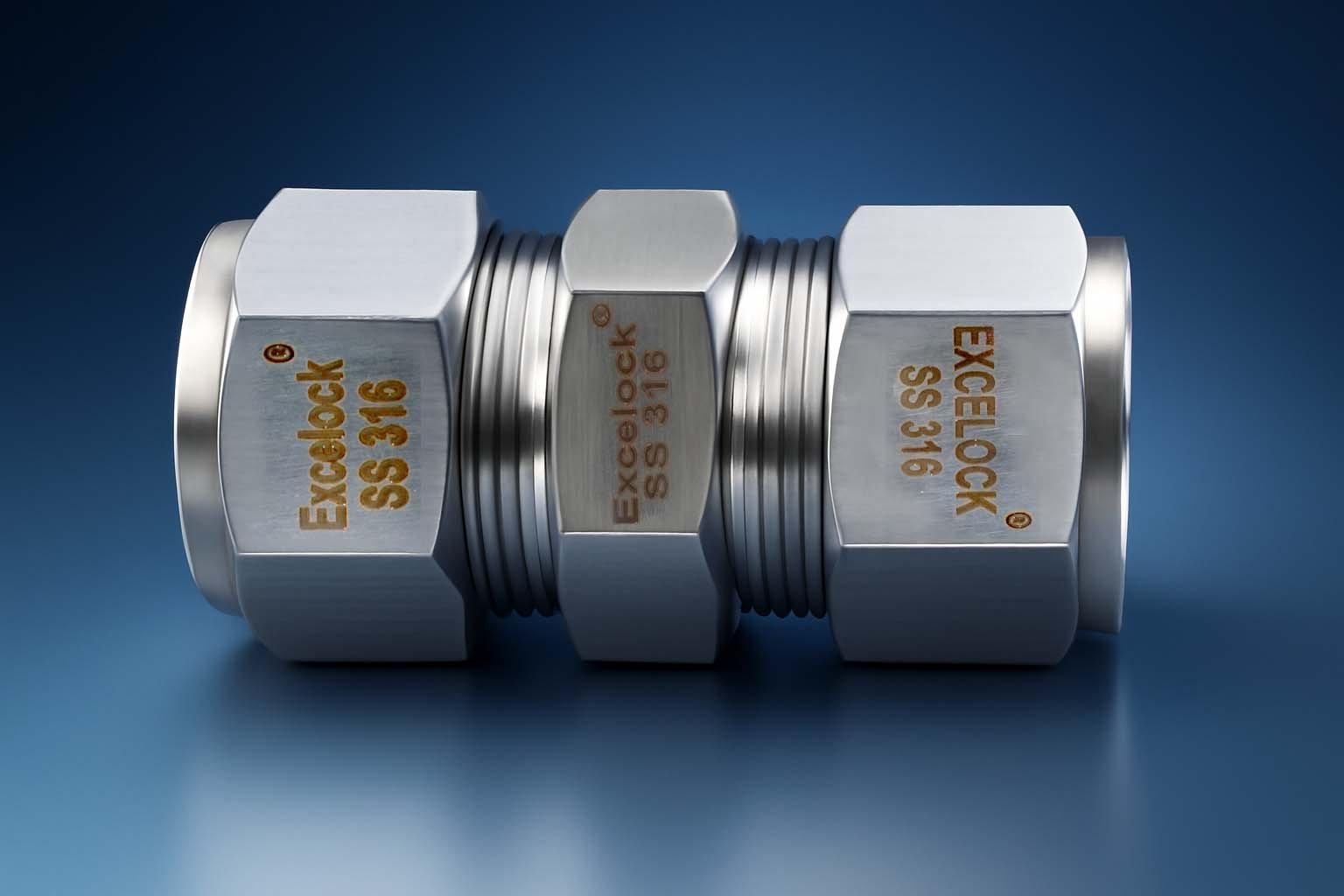

Union

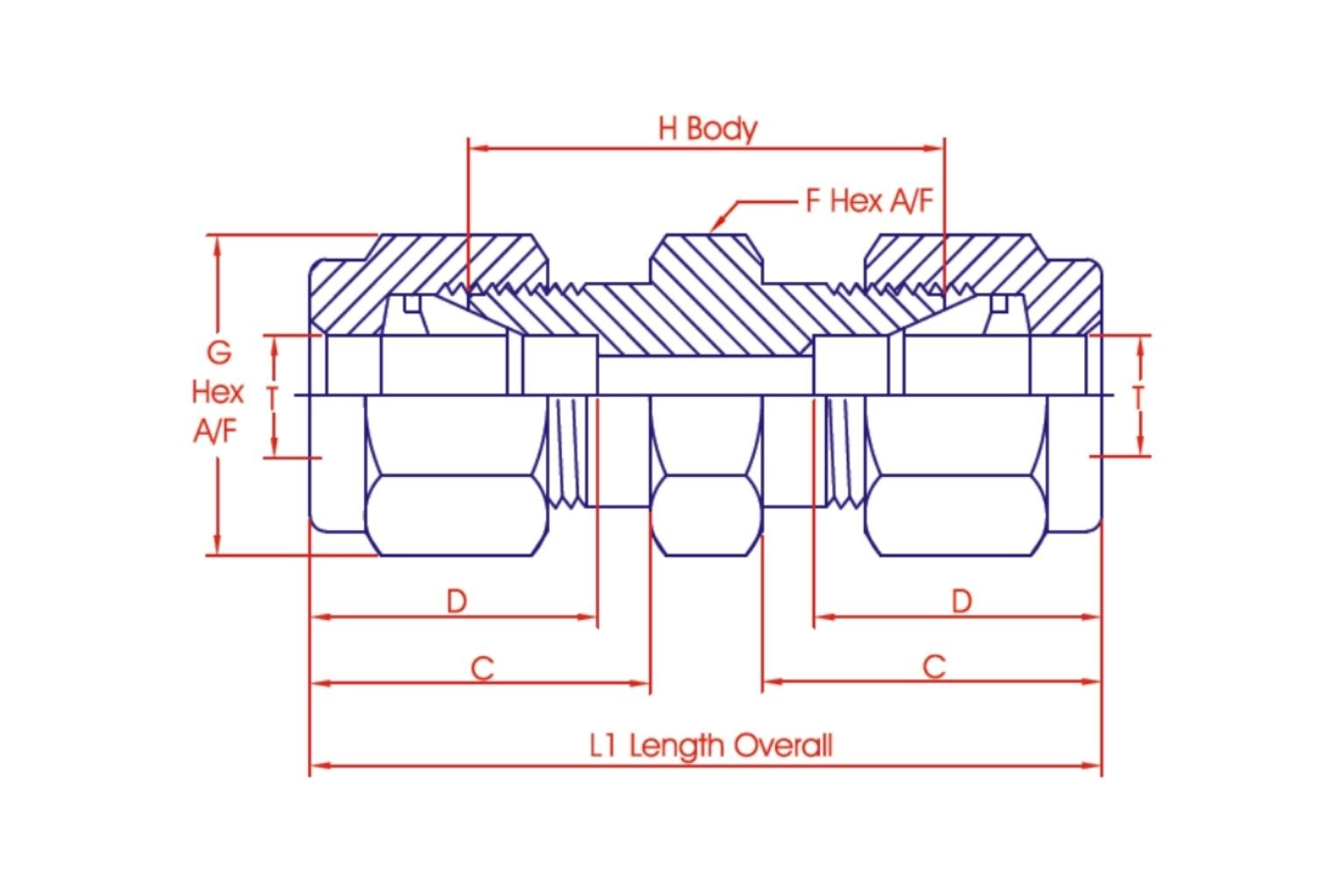

Sl.No.	Part No.	T o/d "mm"	L1 Length "mm"	C "mm"	D "mm"	F Body "mm"	G Nut "mm"	H Body "mm"
1	6mU	6	42.07	18.26	15.88	14	14	26.19
2	10mU	10	46.04	19.84	17.46	17	19	30.16
3	12mU	12	51.59	22.23	23.01	22	22	30.96
4	20mU	20	53.98	22.23	24.61	30	32	33.34
5	25mU	25	64.29	26.19	30.96	36	41	40.48

SR.No.	Part No.	T o/d	L1 Length "Inch"	C "Inch"	D "Inch"	F Body "Inch"	G Nut "Inch"	H Body "Inch"
1	2U	1/8	1.44	0.63	0.53	1/2	7/16	0.88
2	4U	1/4	1.61	0.70	0.60	1/2	9/16	1.03
3	8U	1/2	2.02	0.86	0.90	13/16	7/8	1.22
4	12U	3/4	2.11	0.86	0.96	1-1/16	1-1/8	1.31
5	16U	1	2.55	1.04	1.23	1-3/8	1-1/2	1.59

Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.
