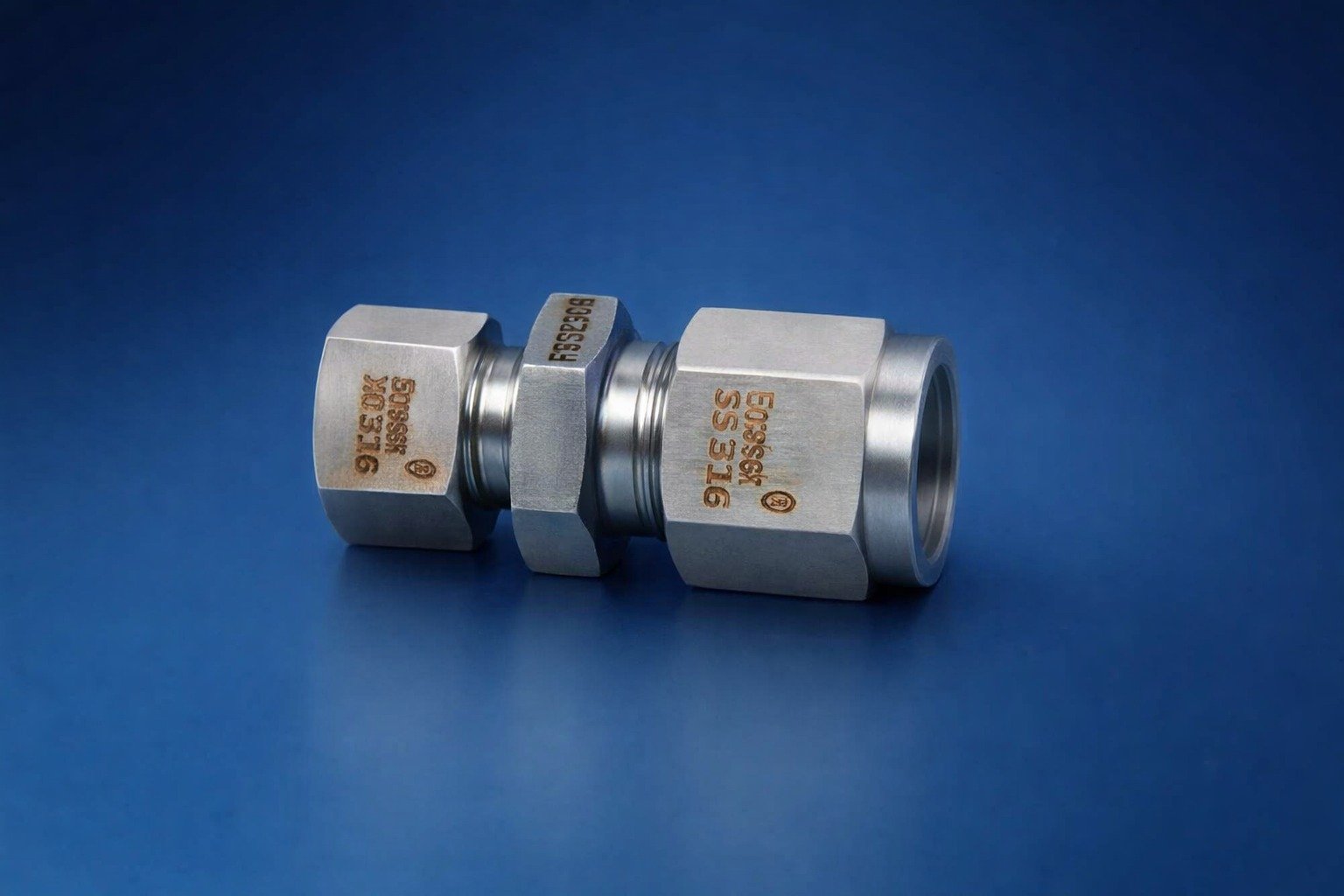

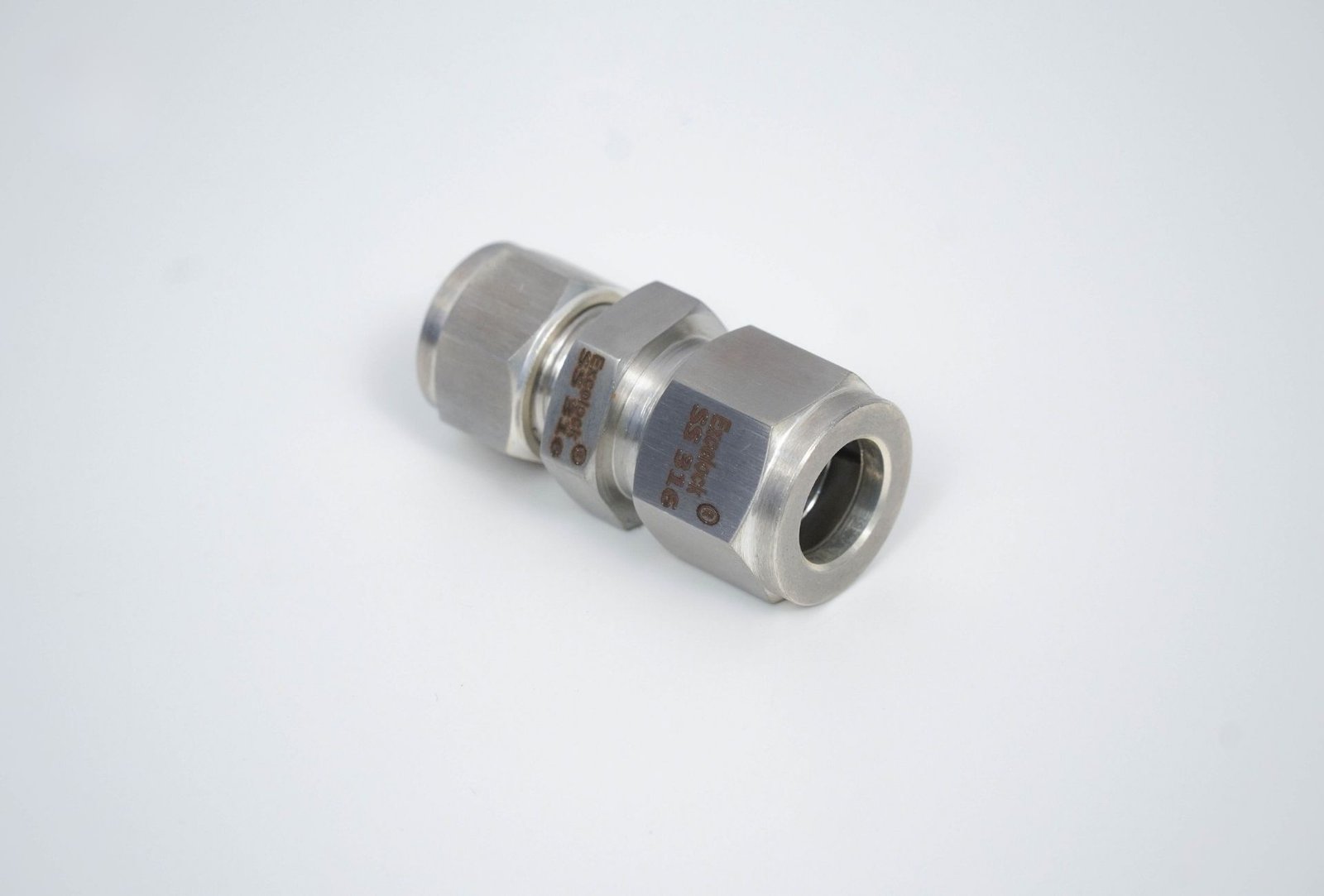

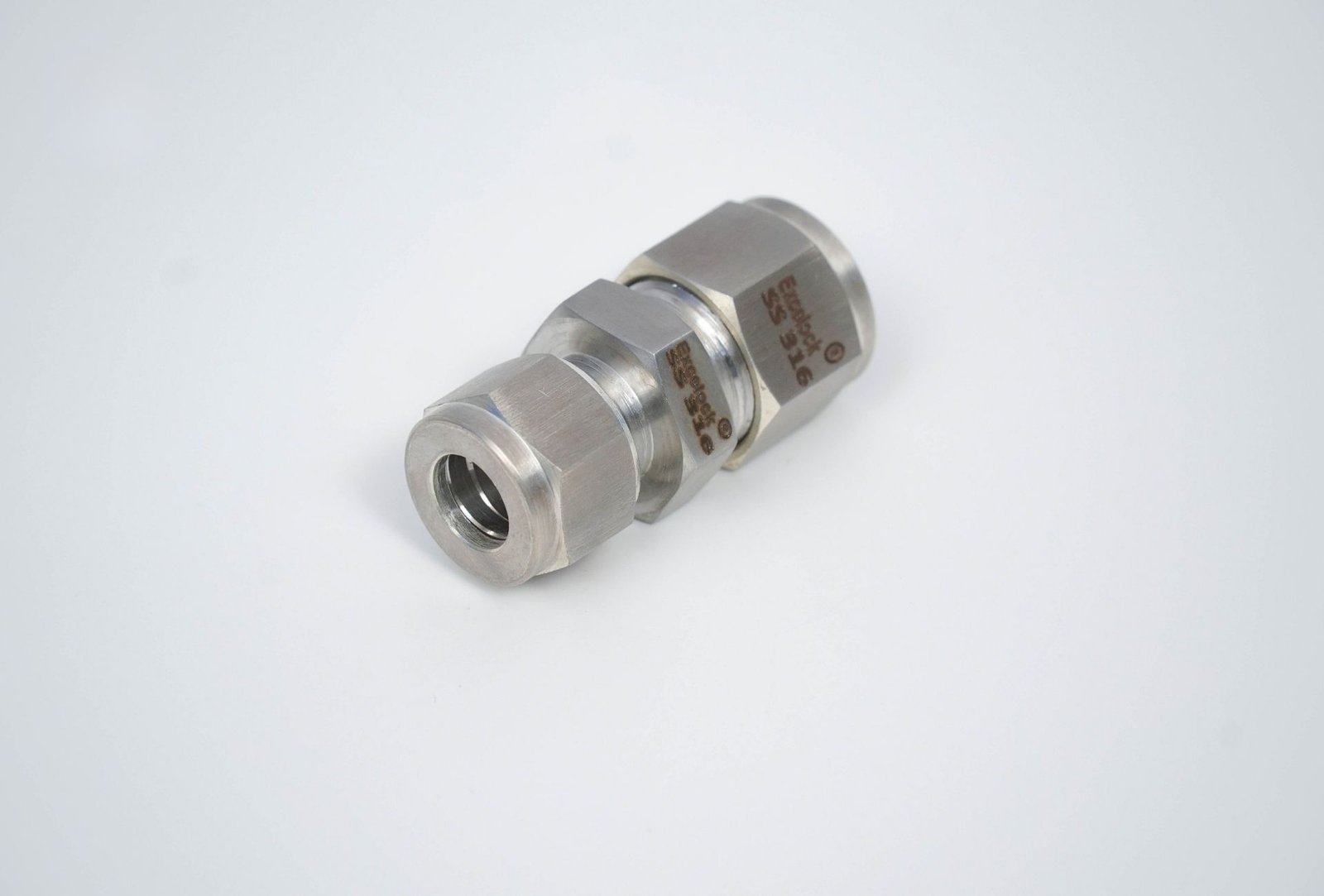

Reducing Union

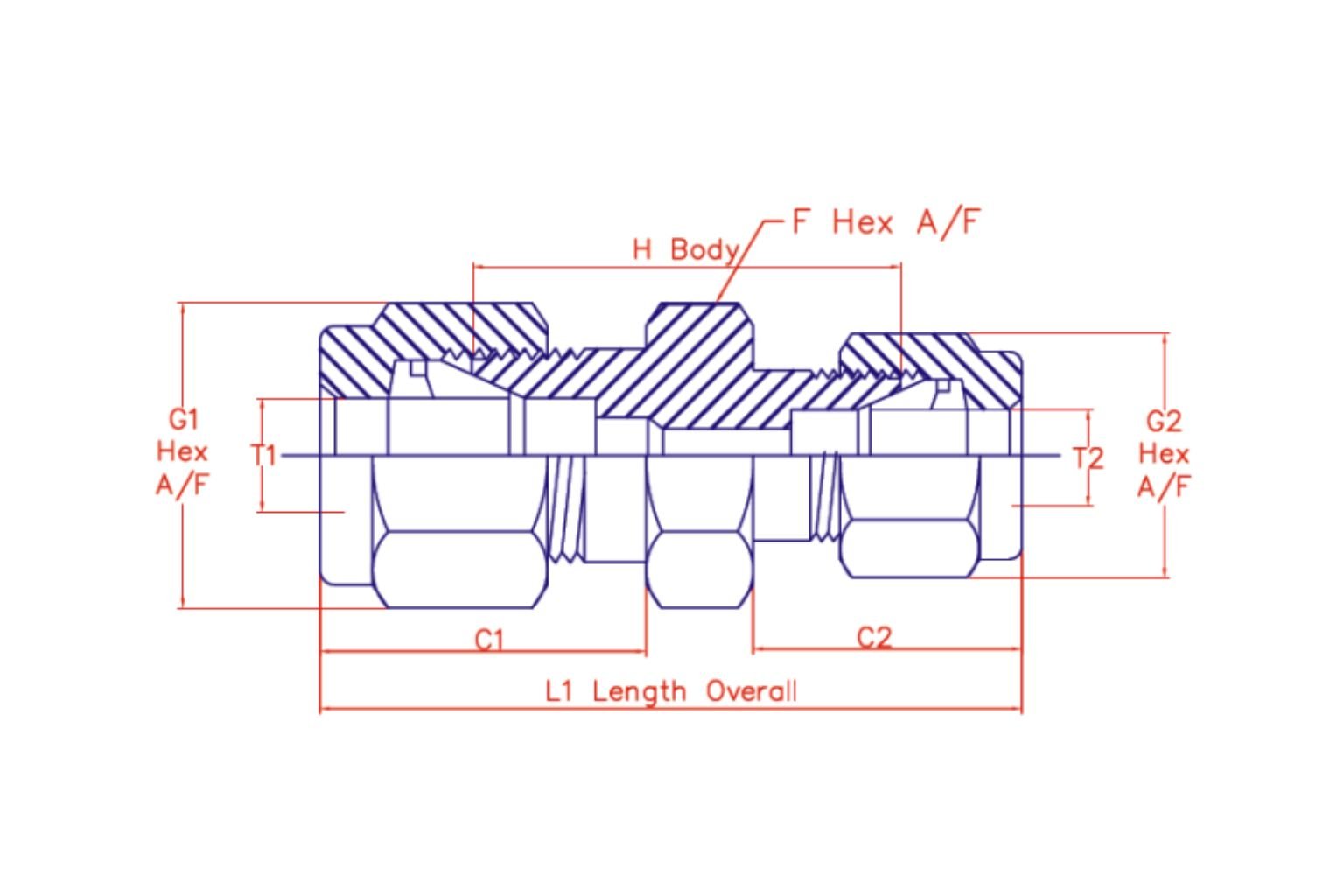

Sl.No.	Part No.	T1 o/d "mm"	T2 o/d "mm"	L1 Length "mm"	C1 "mm"	C2 "mm"	F Body "mm"	G1 Nut "mm"	G2 Nut "mm"	H Body "mm"
1	6-4mRU	6	4	40.48	19.97	19.05	14	14	12	25.40
2	10-8mRU	10	8	45.24	19.84	19.05	17	19	17	29.37
3	12-6mRU	12	6	47.63	22.23	19.97	22	22	14	29.37
4	20-12mRU	20	12	53.98	22.23	22.23	27	30	22	33.34
5	25-20mRU	25	20	60.32	26.19	22.23	36	41	30	38.10

SL. No.	Part No.	T1 o/d	T2 o/d	L1 Length "Inch"	C1 "Inch"	C2 "Inch"	F Body "Inch"	G1 Nut "Inch"	G2 Nut "Inch"	H Body "Inch"
1	4RU2	1/4	1/8	1.56	0.72	0.63	1/2	9/16	7/16	0.97
2	6RU4	3/8	1/4	1.70	0.76	0.70	5/8	11/16	9/16	1.12
3	8RU4	1/2	1/4	1.85	0.86	0.70	13/16	7/8	9/16	1.16
4	12RU8	3/4	1/2	2.11	0.86	0.86	1-1/16	1-1/8	7/8	1.31
5	16RU12	1	3/4	2.47	1.04	0.86	1-3/8	1-1/2	1-1/8	1.59

Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.
