Gate Valve : E210SR-GV – Excel Hydro

Gate Valve : E210SR-GV

NPT / BSPT THREAD END 800#

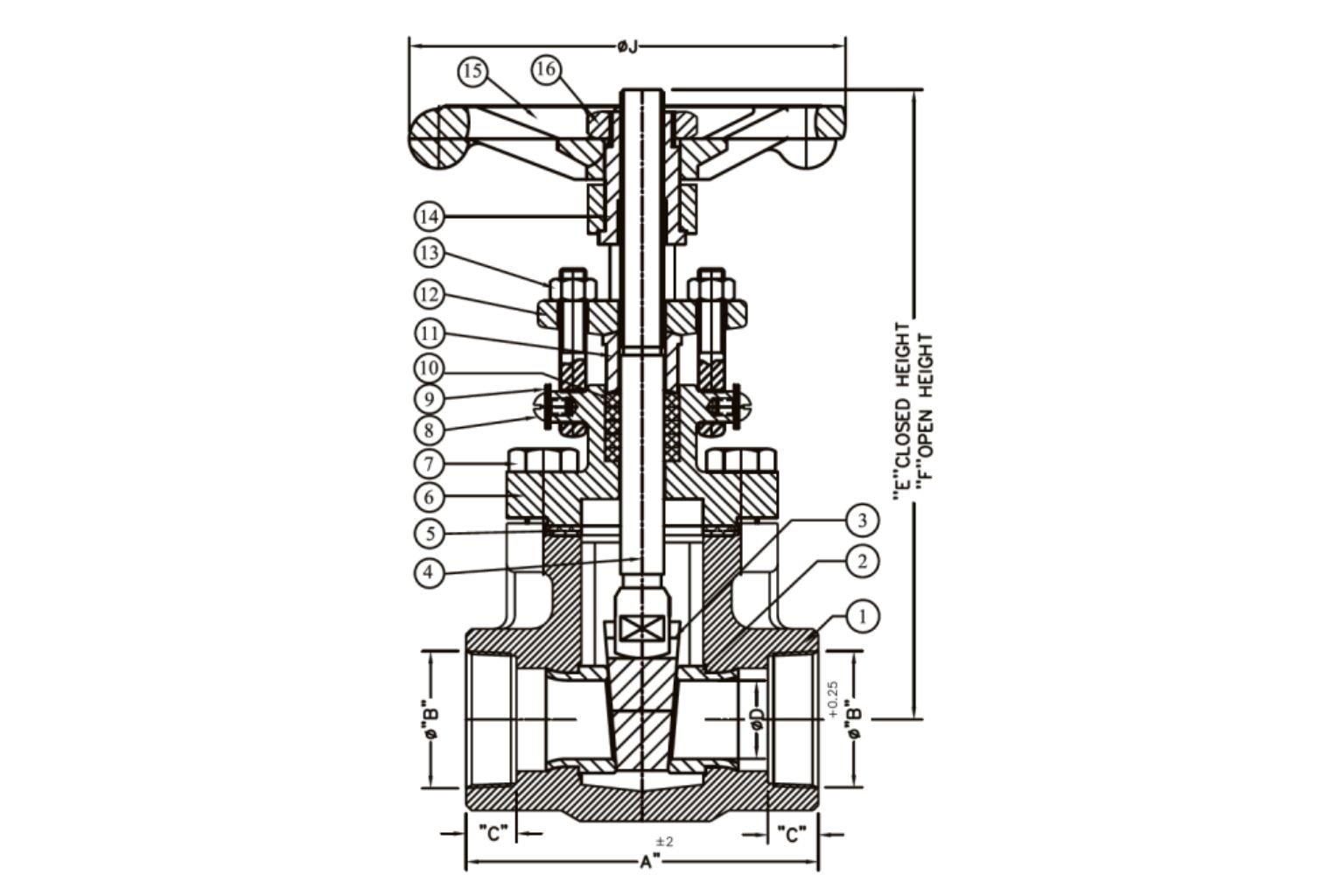

Sl.No.	Size	A	B	C	D	E	F	J	Test Pressure Hydro
									Body	Seat
1	1/2"	87	1/2"NPT / 1/2"BSPT	19.00	9.50	155	169	85	3000 PSI	2000 PSI
2	3/4"	90	3/4"NPT / 3/4"BSPT	19.00	12.70	157	174	85	3000 PSI	2000 PSI
3	1.0"	105	1.0"NPT / 3/4"BSPT	24.00	17.46	172	194	90	3000 PSI	2000 PSI
4	1-1/4"	128	1-1/4"NPT / 1-1/4"BSPT	24.00	23.81	234	262	145	3000 PSI	2000 PSI
5	1-1/2"	128	1-1/2"NPT / 1- 1/2"BSPT	24.00	28.58	234	267	145	3000 PSI	2000 PSI
6	2.0"	142	2.0"NPT / 2.0"BSPT	24	36.50	236	277	145	3000 PSI	2000 PSI

NPT / BSPT THREAD END 1500#
Sl.No.	Size	A	B	C	D	E	F	J	Test Pressure Hydro
									Body	Seat
1	1/2"	90	1/2"NPT / 1/2"BSPT	19.00	9.50	157	174	89	5557 PSI	4075 PSI
2	3/4"	105	3/4"NPT / 3/4"BSPT	19.00	12.70	172	194	89	5557 PSI	4075 PSI
3	1.0"	128	1.0"NPT / 3/4"BSPT	24.00	17.46	234	262	145	5557 PSI	4075 PSI
4	1-1/4"	128	1-1/4"NPT / 1-1/4"BSPT	24.00	23.81	234	267	145	5557 PSI	4075 PSI
5	1-1/2"	142	1-1/2"NPT / 1- 1/2"BSPT	24.00	28.58	236	277	145	5557 PSI	4075 PSI

NPT / BSPT THREAD END 2500#
									Body	Seat
1	1/2"	128	1/2"NPT / 1/2"BSPT	19.00	9.50	234	256	145	9255 PSI	6787 PSI
2	3/4"	142	3/4"NPT / 3/4"BSPT	19.00	12.70	234	264	145	9255 PSI	6787 PSI
3	1.0"	142	1.0"NPT / 3/4"BSPT	24.00	17.46	236	264	145	9255 PSI	6787 PSI
Sl.No.	Size	A	B	C	D	E	F	J	Test Pressure Hydro

S. No	Description	Qty.	Material
1	Body	1	ASTM-A-182 F304/316
2	Seat Ring	2	AISI-304/316 + Stellited
3	Wedge	1	AISI-304/316 + Stellited
4	Spindle	1	AISI-304/316
5	Gasket	1	Spiral Wound SS 304/316 filled with asbestos
6	Bonnet	1	ASTM-A-182 F304/316
7	Bonnet Bolt	4	ASTM-A-193 Gr. B7
8	Screw	2	Carbon Steel
9	Washer	2	Carbon Steel
10	Packing	As Req	Teflon
11	Gland	1	AISI-304/316
12	Gland Flange	1	AISI-304
13	Eye Bolt & Nut	2	Stainless Steel AISI-304
14	Yoke Sleeve	1	Ni Resist
15	Hand Wheel	1	C.I / M.I
16	Hand Wheel Nut	1	Carbon Steel

Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.
