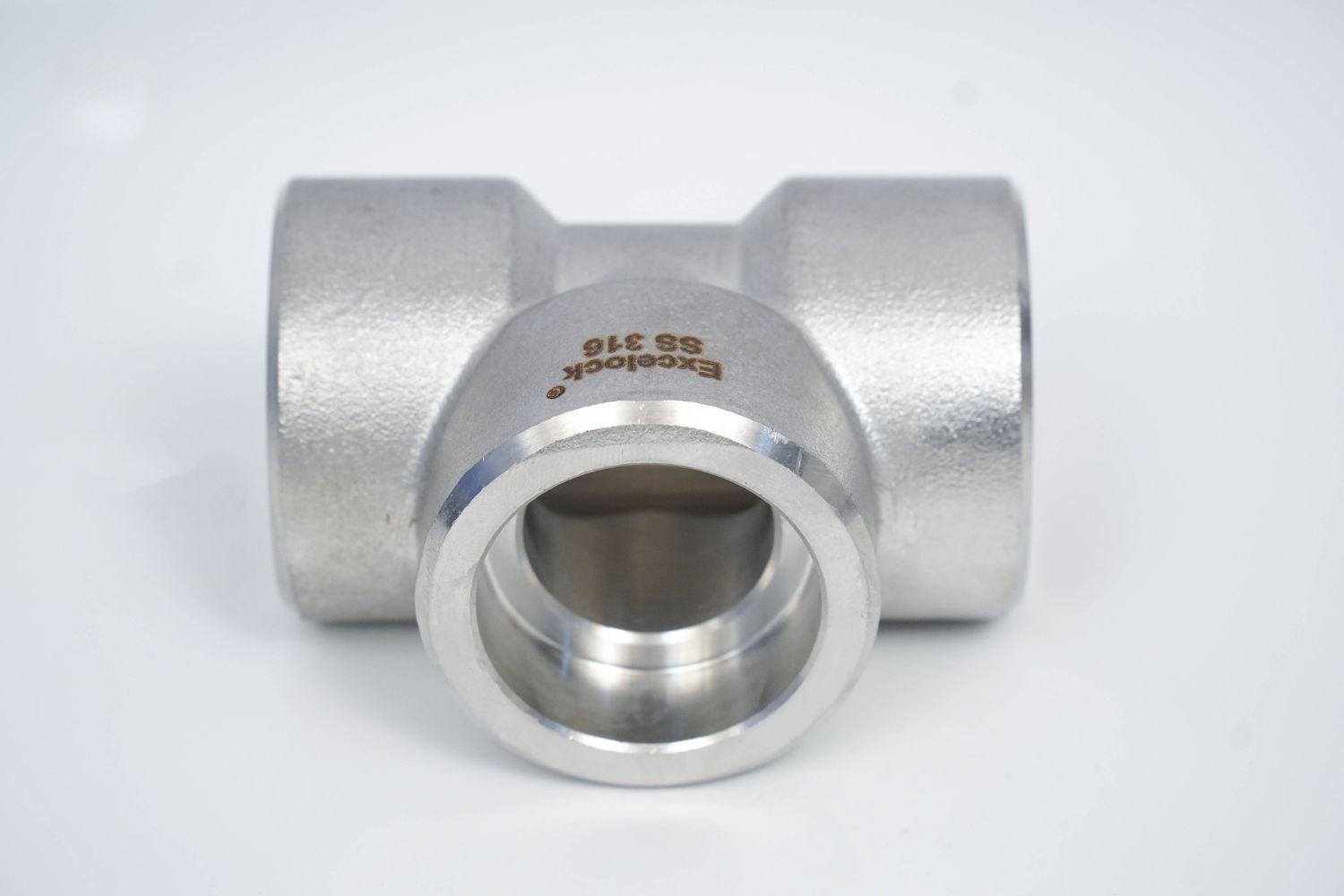

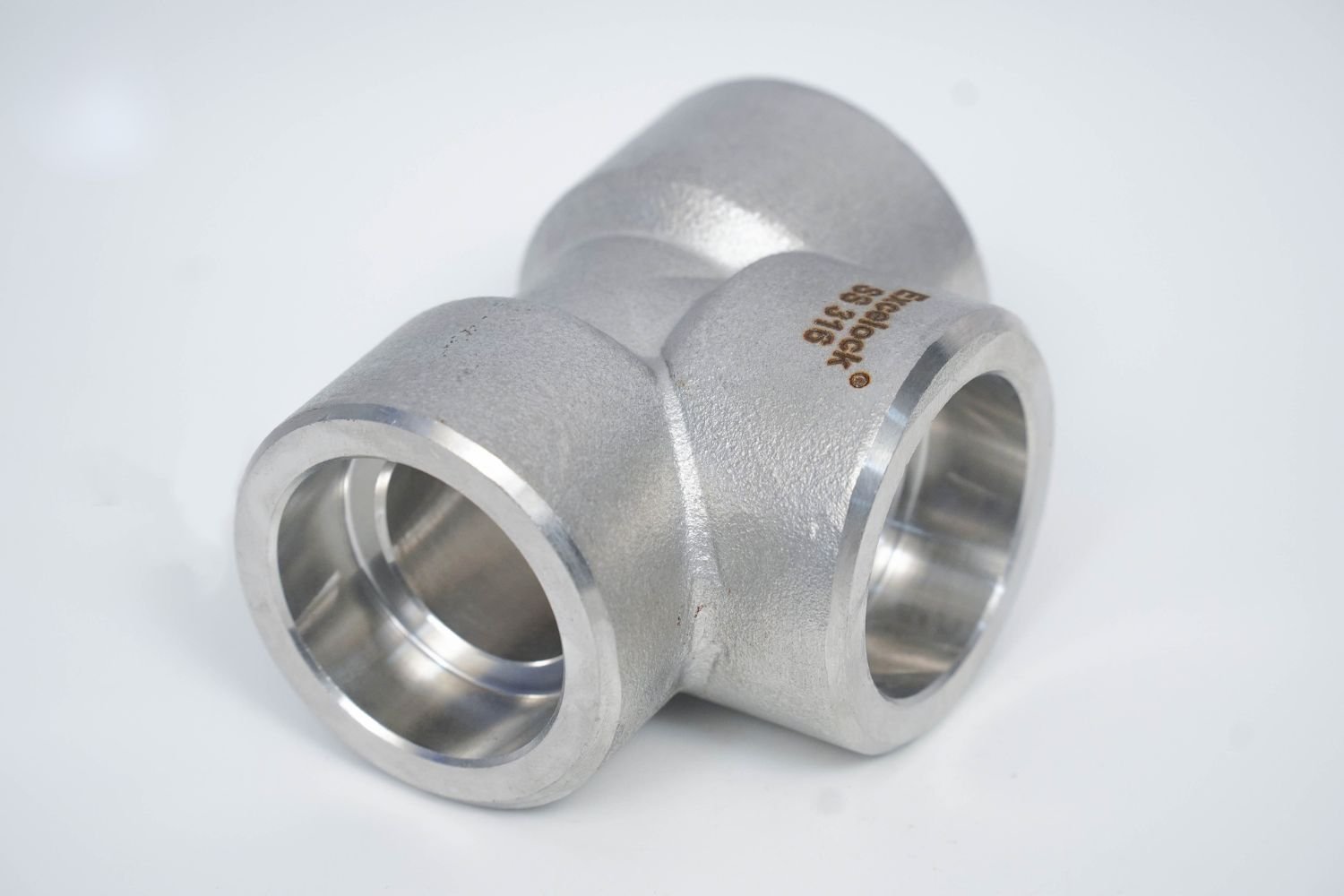

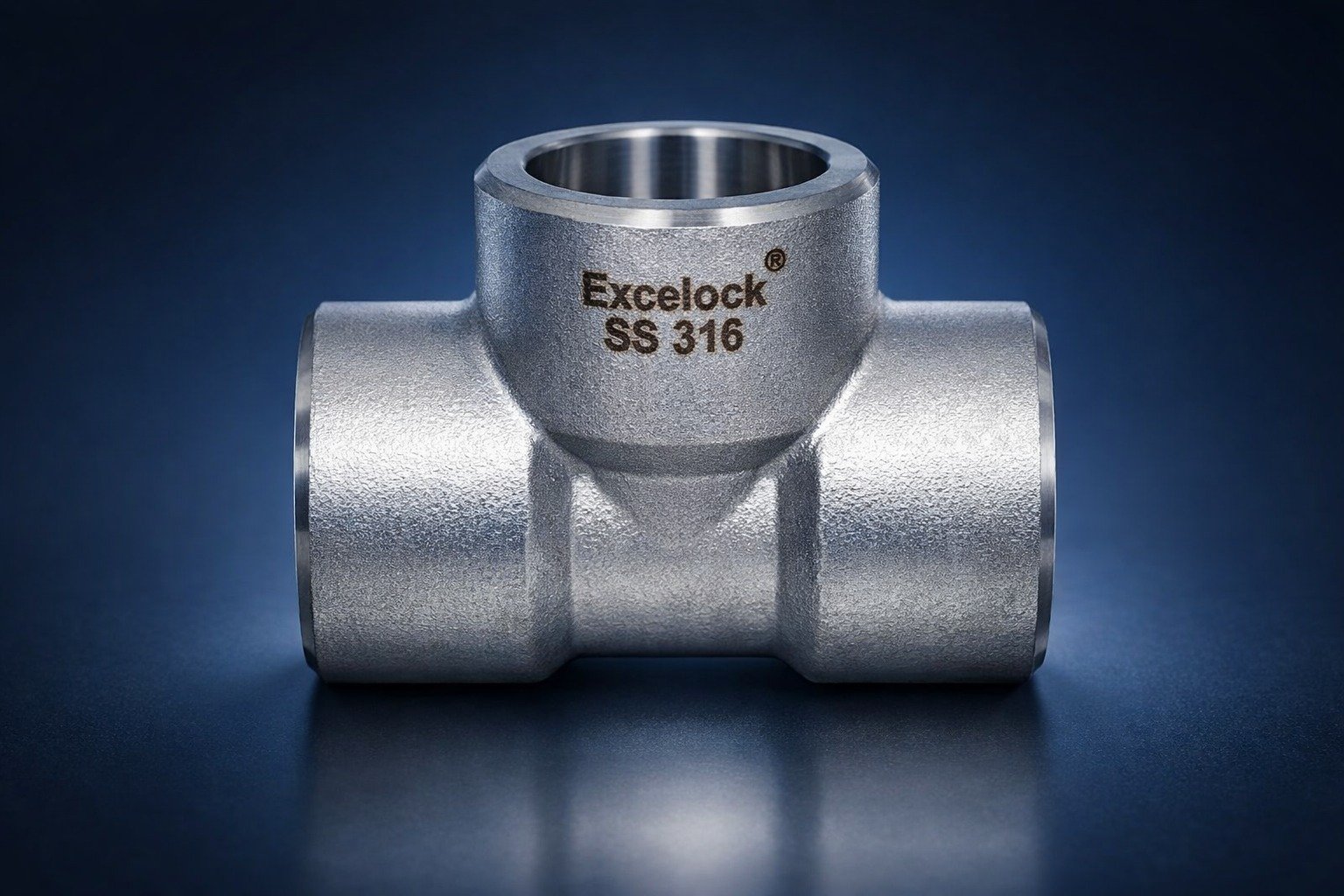

Equal TEE

Sl.No.	Part No.	Size	d		D1	D2	a	b	t	L	E
			DIA.	T.P.I.
1	15mFT	15mm	20.955	14	31	29	13	4	3	64	32
2	10mFT	10mm	16.662	19	27	25	10	4	2.5	48	24
3	20mFT	20mm	26.441	14	36	34	14.5	5	3	70	35
4	25mFT	25mm	33.249	11	43	41	17	5	3	86	43
5	32mFT	32mm	41.91	11	52	50	19	6	4	102	51
6	50mFT	50mm	59.614	11	70	68	23.5	6	3	128	64

Note : Fittings are designed to allow for combinations of different tube ends and thread connections. This flexibility is crucial for connecting various components in a piping system.

Features

Separately mounted design for flexible system integration.
Durable body construction ensures long service life.a
Suitable for high-pressure and high-temperature environments.
Precision-engineered for accurate flow control and regulation.
High-performance seals to prevent leakage and ensure safety.
Resistant to corrosion, ideal for harsh industrial conditions.
Low-maintenance design for quick servicing and reduced downtime.

Specifications

Valve Type: Separately Mounted Industrial Valve
Model: E367 BB
Material: Cast Steel / Stainless Steel (optional)
Pressure Rating: Up to 1500 PSI (customizable)
Temperature Range: -20°C to 250°C
End Connections: Flanged / Threaded / Welded (as required)
Flow Media: Compatible with gases, liquids, steam, and corrosive fluids
Mounting Type: Separate bracket or base-mounted configuration
Operation: Manual / Pneumatic / Electric actuator options available
Compliance: ANSI / API / DIN standards (based on requirement)
