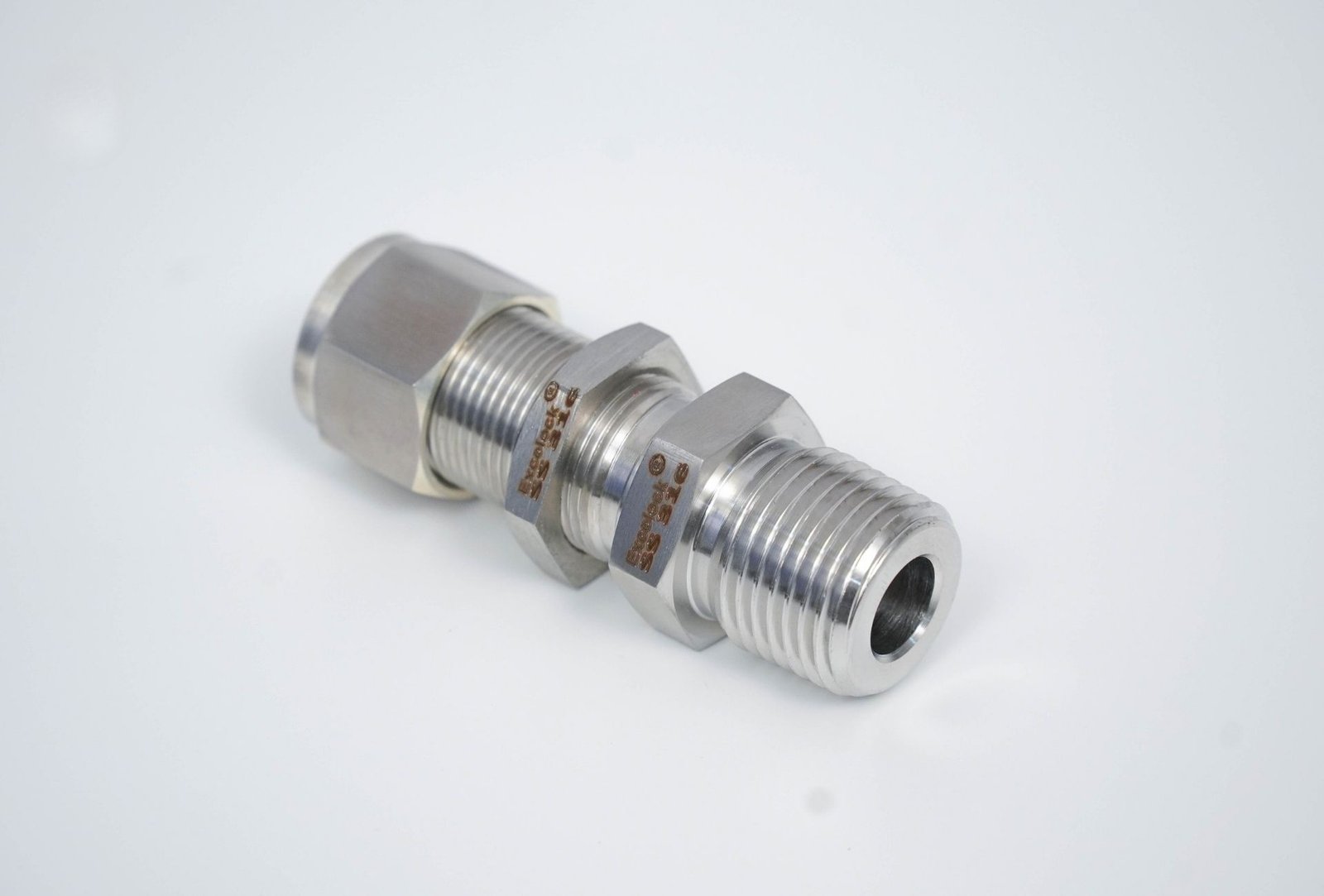

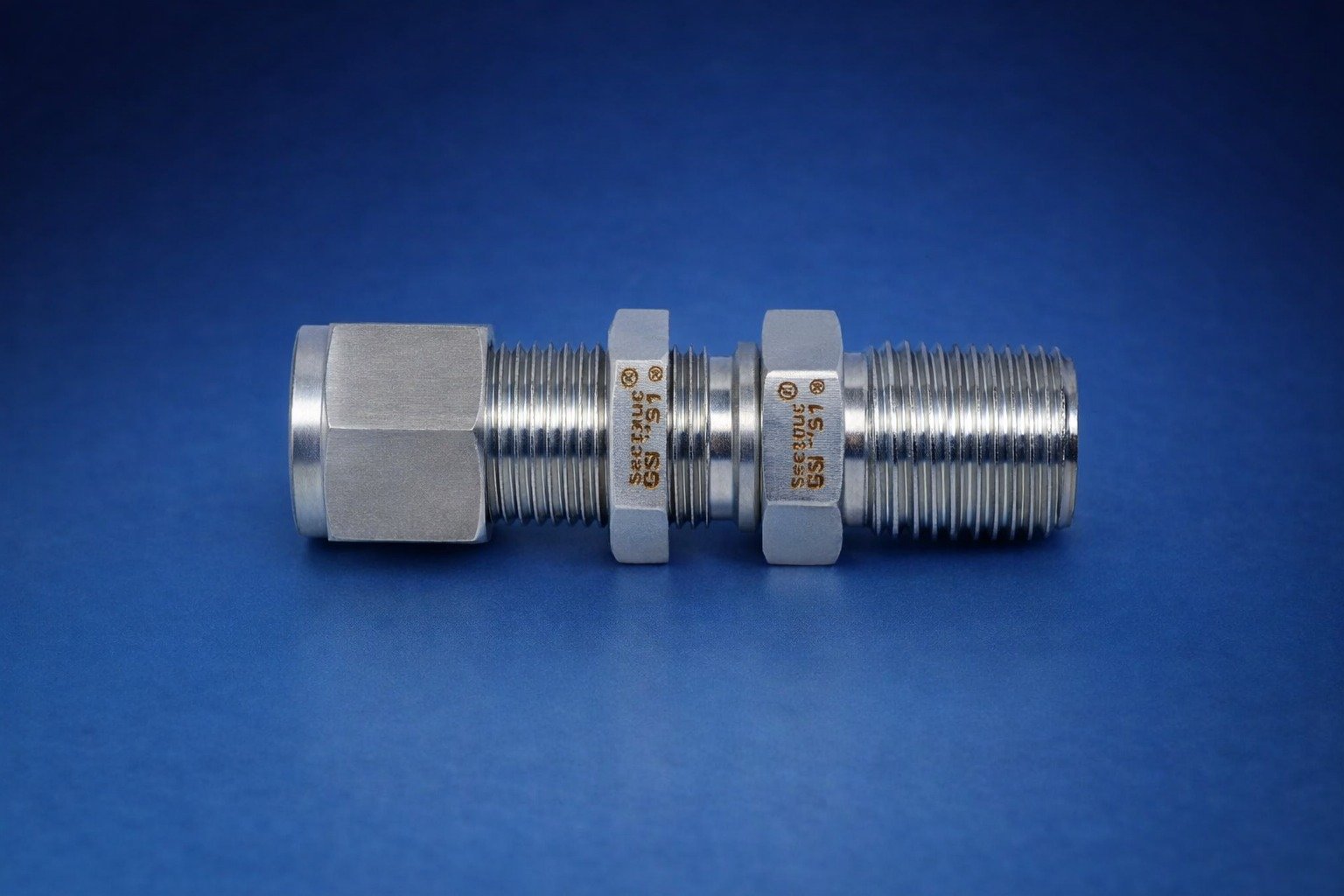

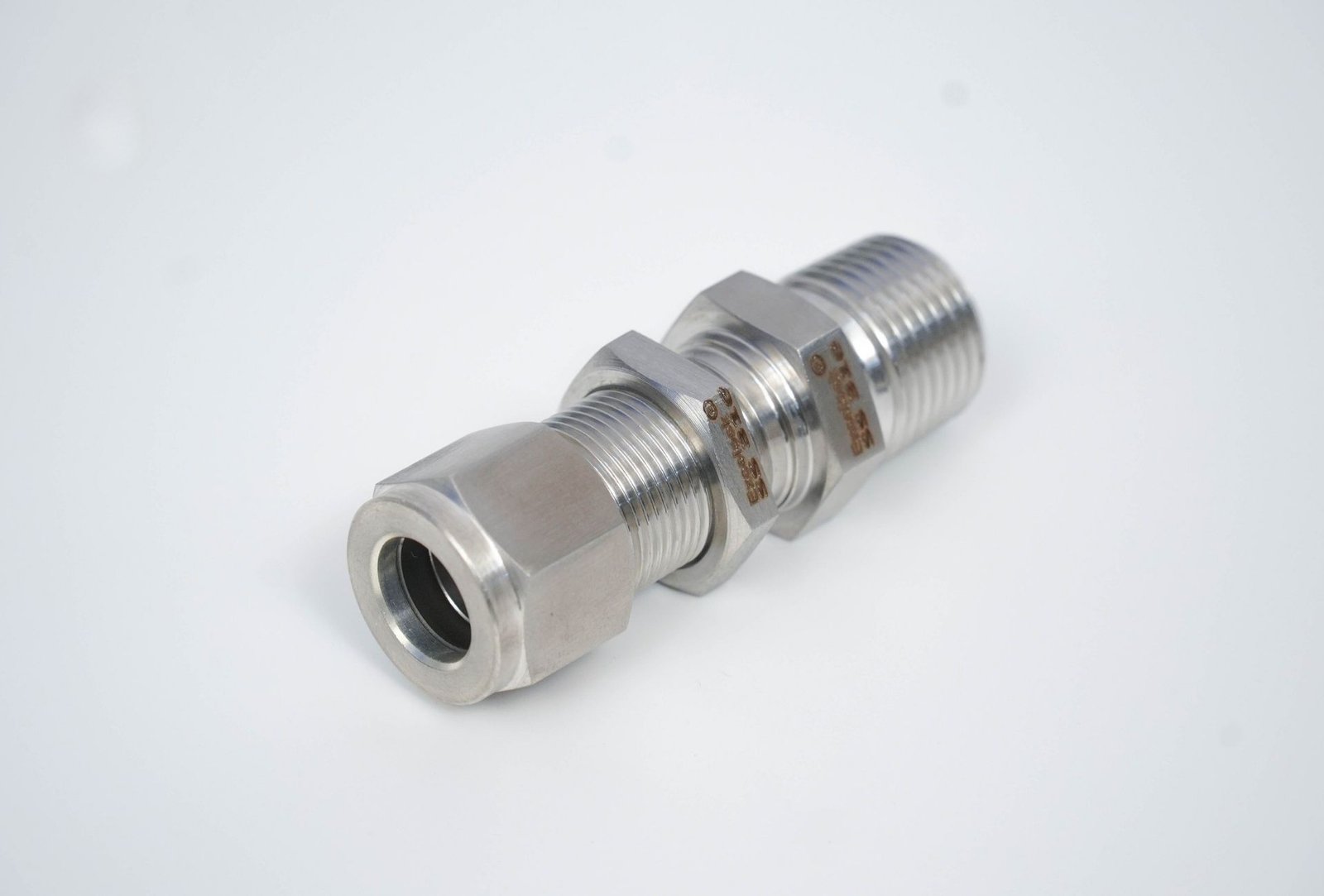

Bulk Head Male Connector

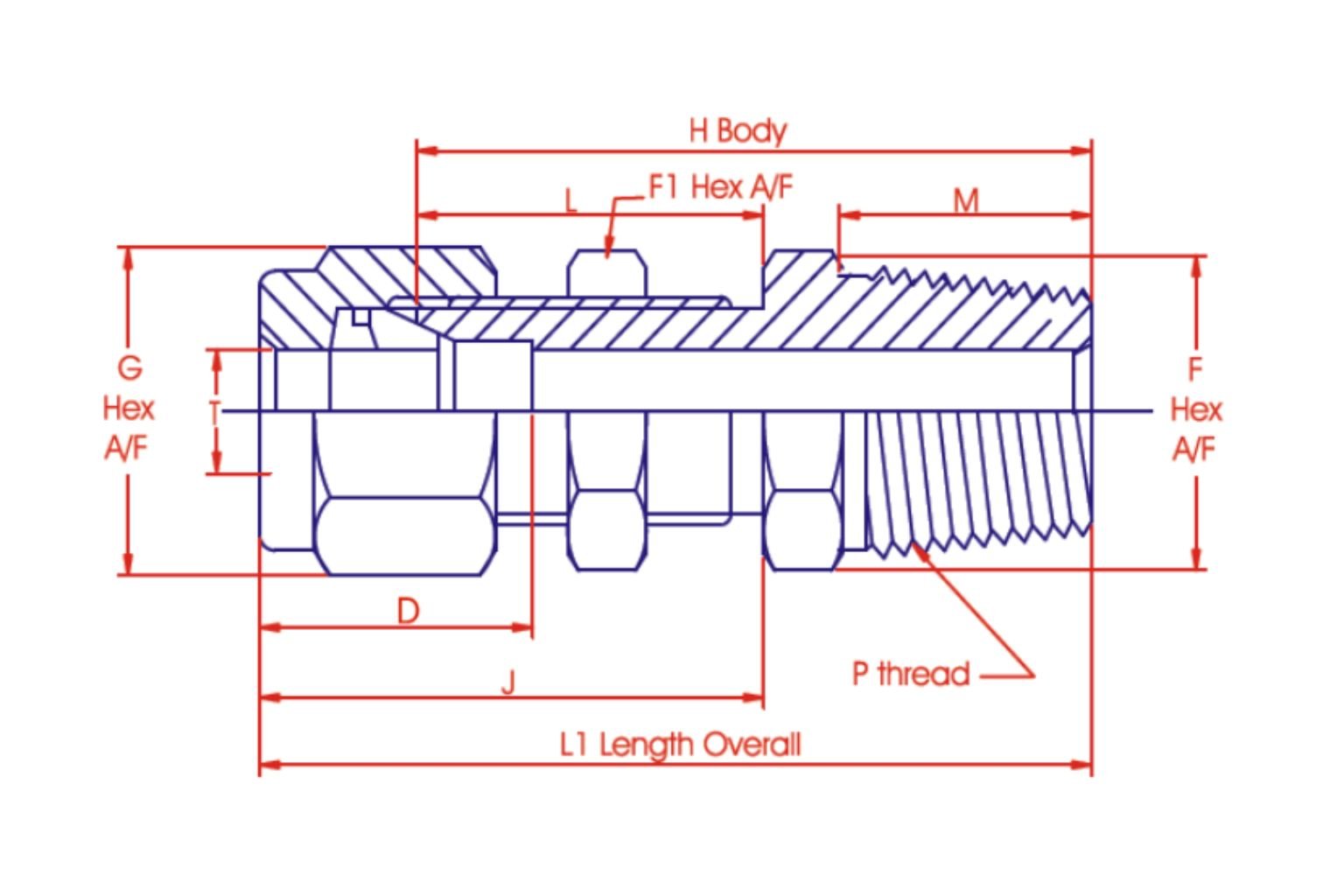

Sl.No.	Part No.	T o/d	P	M "Inch"	D "Inch"	F Body "Inch"	G Nut "Inch"	F1 CheckNut "Inch"	H "Inch"	J "Inch"	L "Inch"	L1 "Inch"	Panel Hole	Max Panel.
1	2MBH2	1/8	1/8	0.38	0.60	5/8	9/16	5/8	1.66	1.32	1.03	1.95	29/64	0.40
2	4MBH4	1/4	1/4	0.56	0.60	5/8	9/16	5/8	1.81	1.32	1.03	2.10	29/64	0.40
3	6MBH6	3/8	3/8	0.56	0.66	3/4	11/16	3/4	1.97	1.45	1.16	2.26	37/64	0.44
4	8MBH8	1/2	1/2	0.75	0.90	15/16	7/8	15/16	2.28	1.65	1.25	2.68	49/64	0.50
