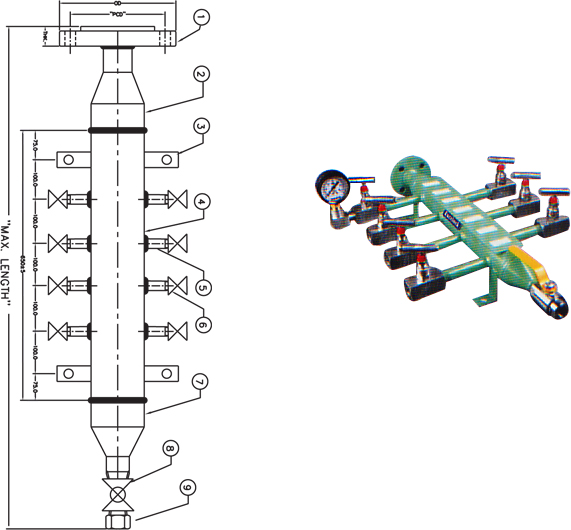

Air Distribution Manifold

NO	DESCRIPTION	MATERIAL	QTY
1	FLANGE NBRF	ASTM A 182 F316	1
2	REDUCER NB(PL.) X NB(PL)	SS 316	1
3	MOUNTING BRACKET	SS 304	2
4	BODY-SEAMLESS PIPE	ASTM A312 TP 316	1
5	NIPPLE-NB(PL.) X NPT(M) 3.0" LONG	SS 316	8
6	NEEDLE VALVE NPT(F) X (F)	SS 316	8
7	REDUCER-NB(PL.) X NPT(M)	SS 316	1
8	BALL VALVE NPT(F) X (F)	SS 316	1
9	NPT(M) MALE(PLUG	SS 316	1

Note:

1. All Dimensions are Flange end shall be as per ANSI B 16.5

Air distribution manifolds

Made as per customers requirements, these distribution manifolds/air headers are equipped with ‘Excelock’ needle/ ball valves. These can be easily mounted on walk or pipe stand. They are available up to 2×10 outlets with equal spacing and positioned to meet specific requirements.
