E 210SR – GV

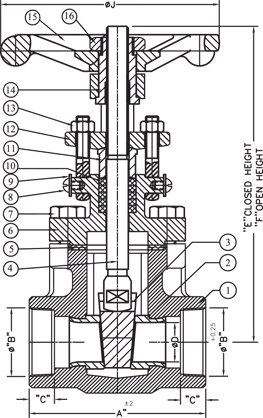

PART NO
DFSCRIPTION
QTY
MATERIAL
1 BODY 1 ASTM-A182 F304/316
2 SEAT RING 2 AISI-304/316+stellited
3 WEDGE 1 AISI-304/316+stellited
4 SPINDLE 1 AISI-304/316
5 GASKET 1 SPIRAL WOUND SS 304/316 FILLED WITH ASBESTOS.
6 BONNET 1 ASTM-A-182 F304/316
7 BONNET BOLT 4 ASTM-A-193 GR.B7
8 SCREW 2 CARBON STEEL
9 WASHER 2 CARBON STEEL
10 PACKING A REQ TEFLON
11 GLAND 1 AISI-304/316
12 GLAND FLANGE 1 AISI-304
13 EYE BOLT & NUT 2 STAINLESS STEEL AISI304
14 YOKE SLEEVE 1 NI RESIST
15 HAND WHEEL 1 C.I/M.I
16 HAND WHEEL NUT 1 CARBON STEEL
NPT/BSPT THREAD END 800#
SIZE
A
B
C
D
E
F
J
1/2″ 87 1/2″NPT /1/2″BSPT 19.0 9.5 155 169 85
3/4″ 90 3/4″NPT/3/4″BSPT 19.0 12.7 157 174 85
1.0″ 105 1.0″NPT/3/4″BSPT 24.0 17.46 172 194 90
11/4″ 128 11/4″NPT/11/4″BSPT 24.0 23.81 234 262 145
11/2″ 128 11/2″NPT/11/2″BSPT 24.0 28.58 234 267 145
2.0″ 142 2.0″NPT/2.0″BSPT 24.0 36.5 236 277 145
Test pressure Hydro at room Temperature
3000 Body
2000 Seat
SOCKET WELD END 1500#
SIZE
A
B
C
D
E
F
J
1/2″ 90 1/2″NPT /1/2″BSPT 19.0 9.5 157 174 89
3/4″ 105 3/4″NPT/3/4″BSPT 19.0 12.7 172 194 89
1.0″ 128 1.0″NPT/3/4″BSPT 24.0 17.46 234 262 145
11/4″ 128 11/4″NPT/11/4″BSPT 24.0 23.81 234 267 145
11/2″ 142 11/2″NPT/11/2″BSPT 24.0 28.58 236 277 145
Test pressure Hydro at room Temperature
5557 Body
4075 Seat
SOCKET WELD END 2500#
SIZE
A
B
C
D
E
F
J
1/2″ 128 1/2″NPT /1/2″BSPT 19.0 9.5 234 256 145
3/4″ 142 3/4″NPT/3/4″BSPT 19.0 12.7 234 264 145
1.0″ 142 1.0″NPT/3/4″BSPT 24.0 17.46 236 264 145
Test pressure Hydro at room Temperature
9255 Body
6787 Seat

Ordering Information:

Suffix model No. by End Connection & Class & MOC

Typical Model No.:

E210 – GV 1/2 “NB 1500 SS316”

Note:

  1. All Dimensions are subject to change without notice.
